Select equipment from the incoming meat condition, required unit operation and accepted finished product. HELPER connects verified machine families into preparation, value-add, sausage and thermal processing routes.
Start with the operation performed on the meat, then compare models and capacities inside the relevant family.
Visual note: the category images below are planning visuals based on HELPER product media. Open each category for verified machine photographs, models and published specifications.
All official cutting-machine records organized across precision cutting, frozen-block preparation and bone sawing.
Browse the complete collection →

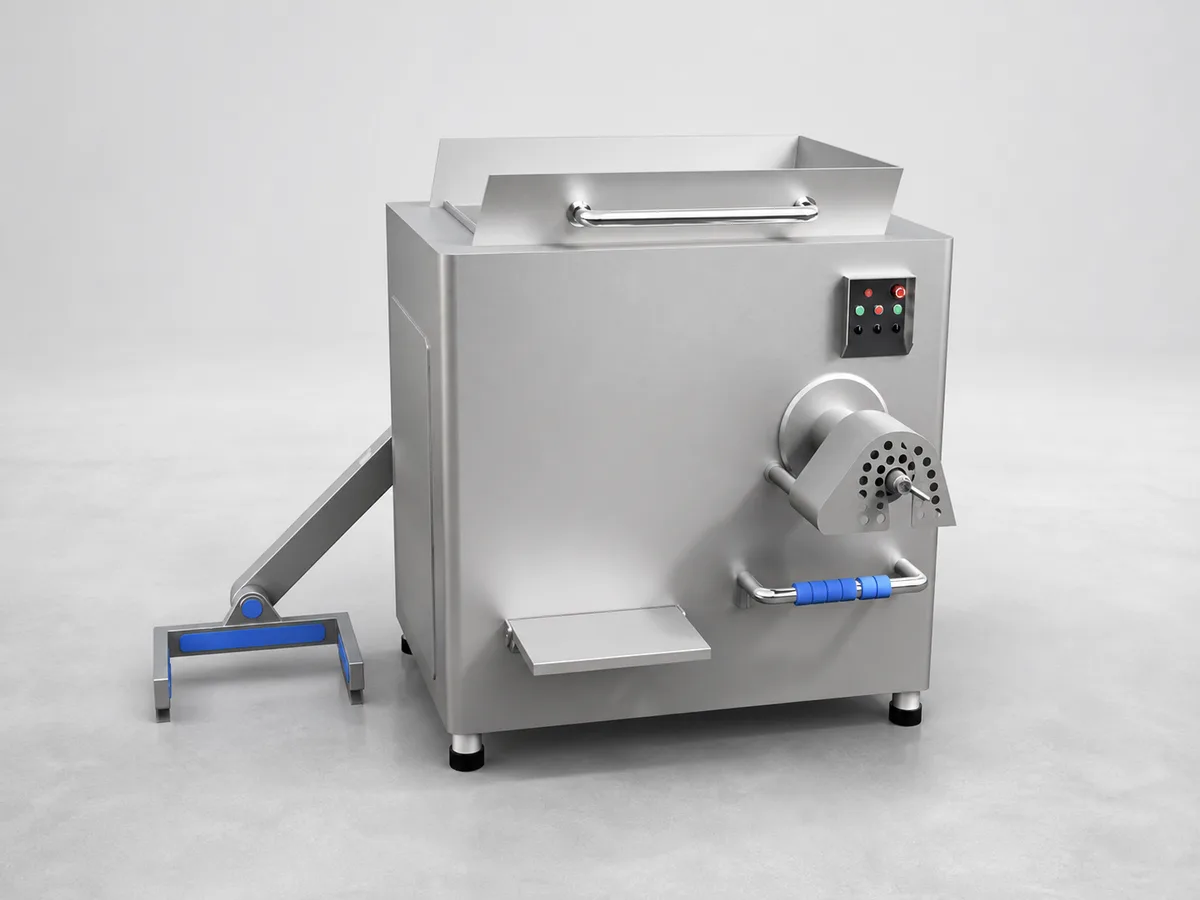

Industrial size-reduction equipment for fresh meat, frozen blocks and controlled feed preparation.
View 6 consolidated families →

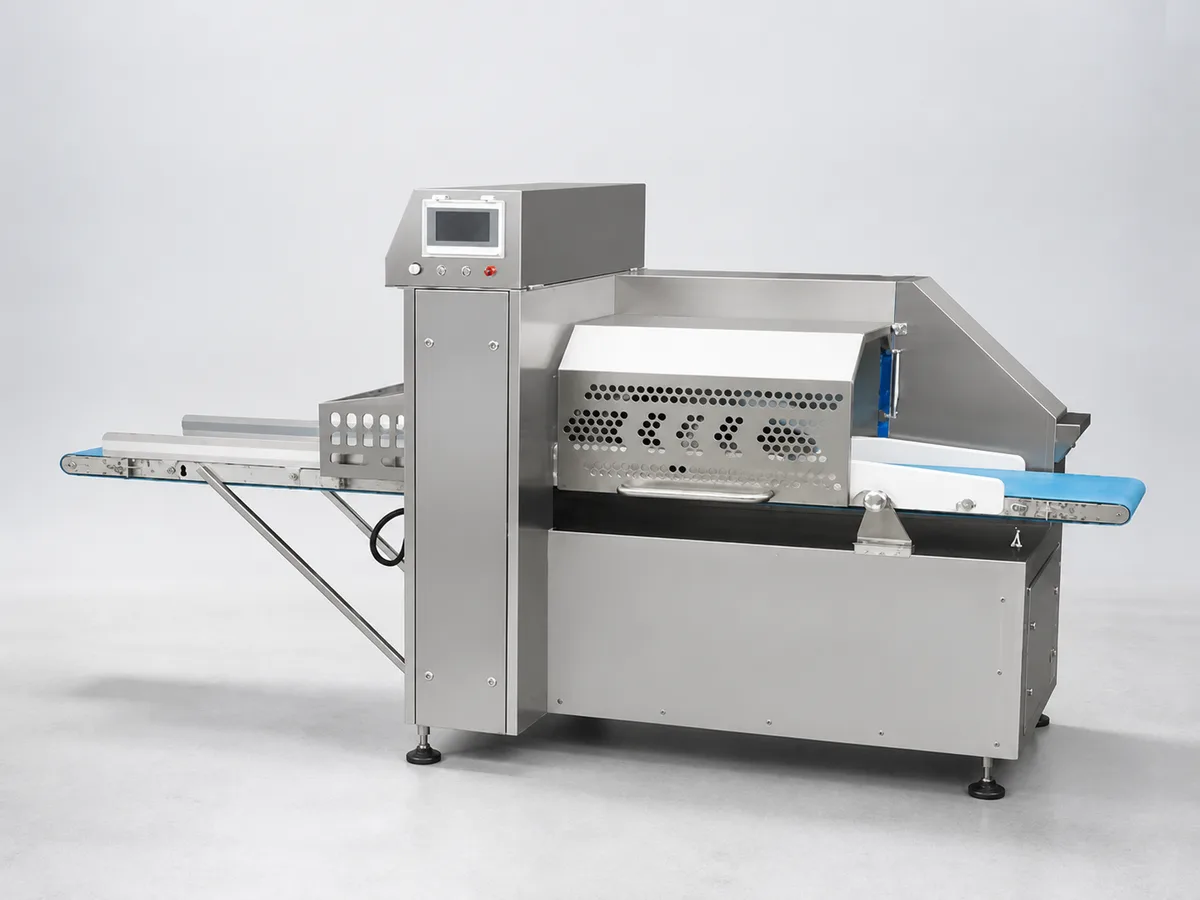

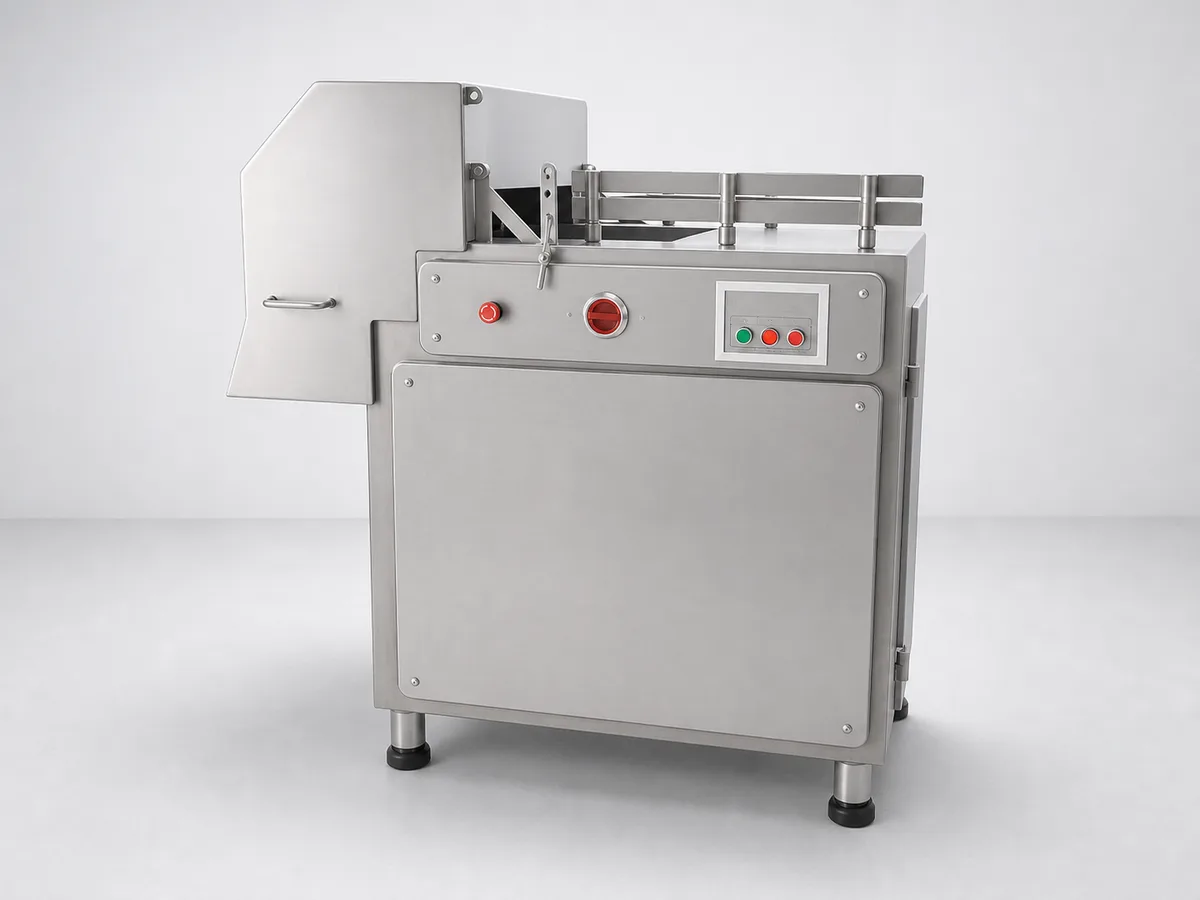

Precision portioning and shape-reduction machines for fresh, frozen and cooked products.
View 3 consolidated families →

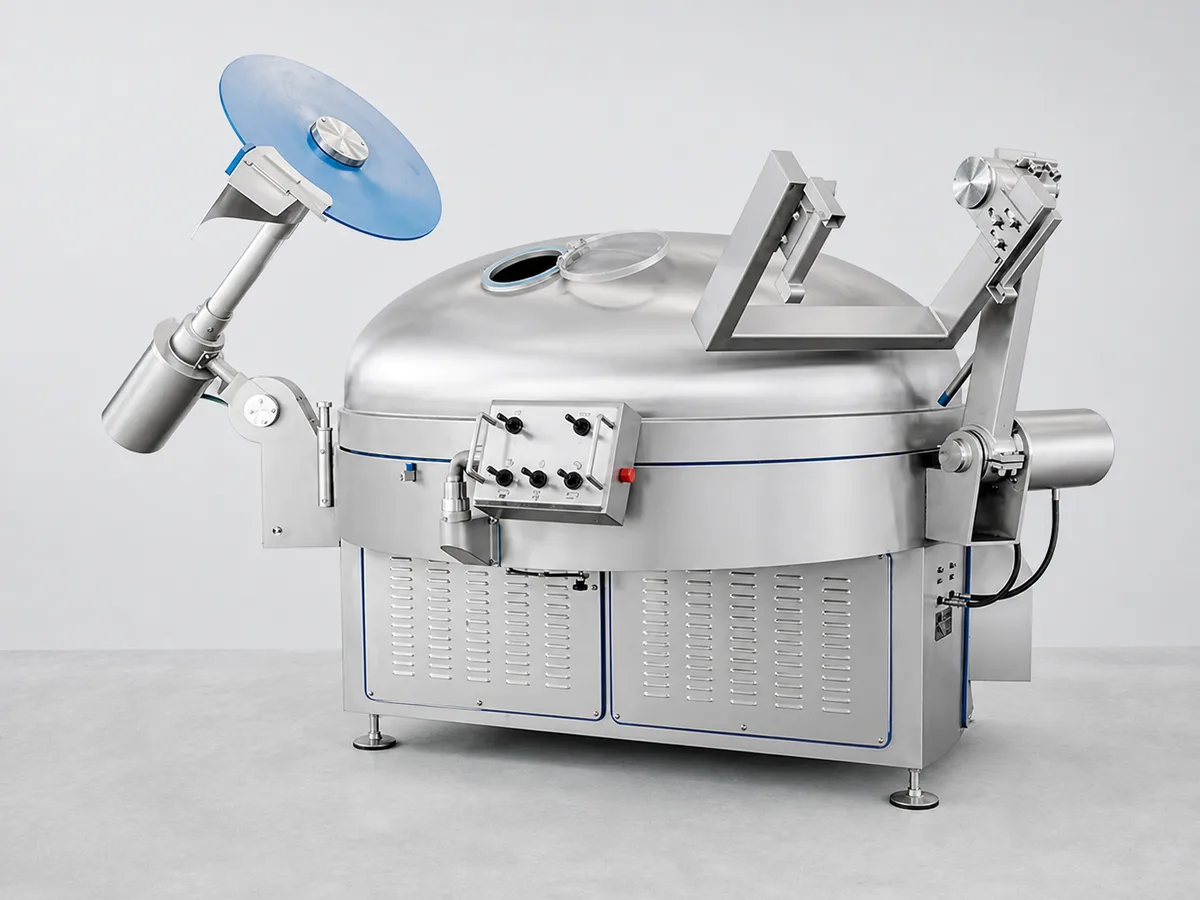

High-speed chopping, mixing and emulsification equipment for sausage, meat paste and prepared foods.
View 2 consolidated families →

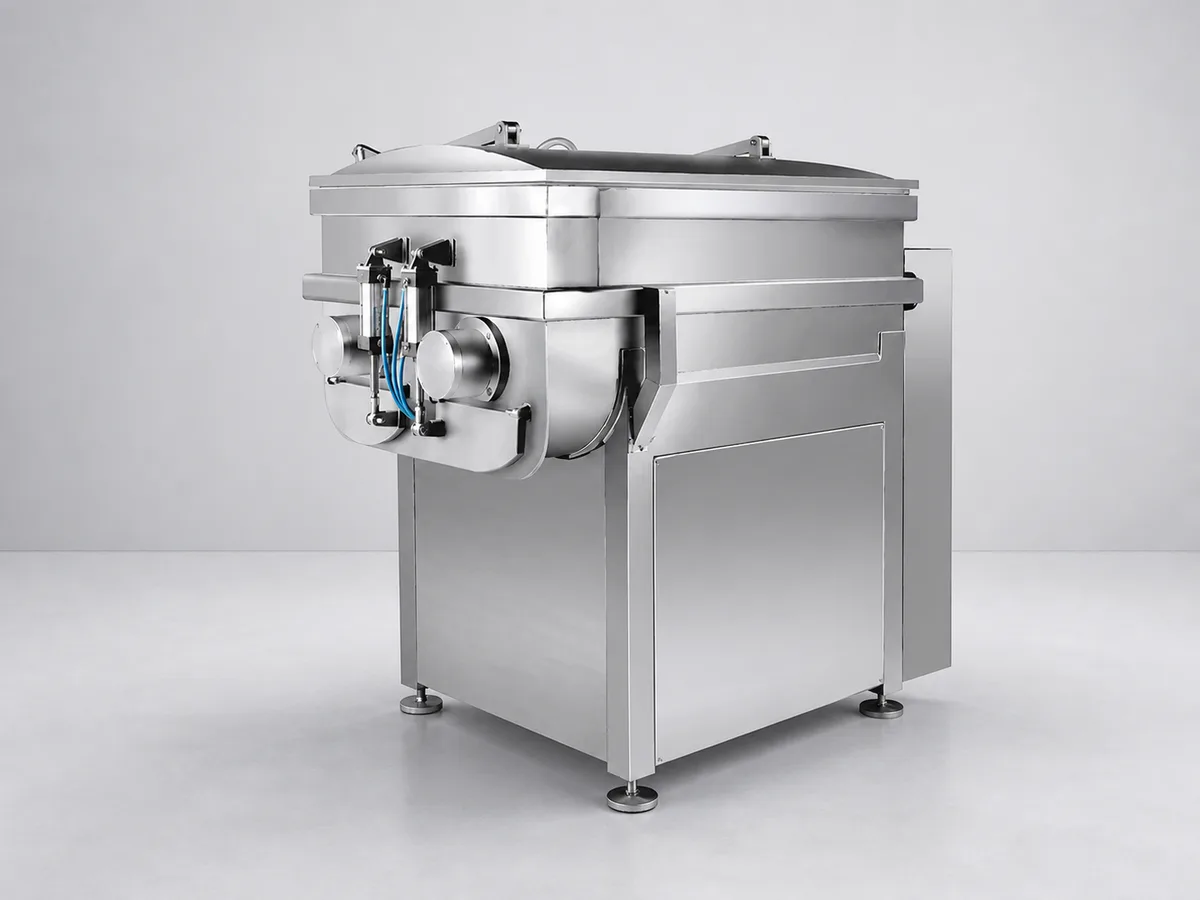

Twin-shaft mixing systems for sausage stuffing, meat blends, vegetables and prepared fillings.
View 2 consolidated families →

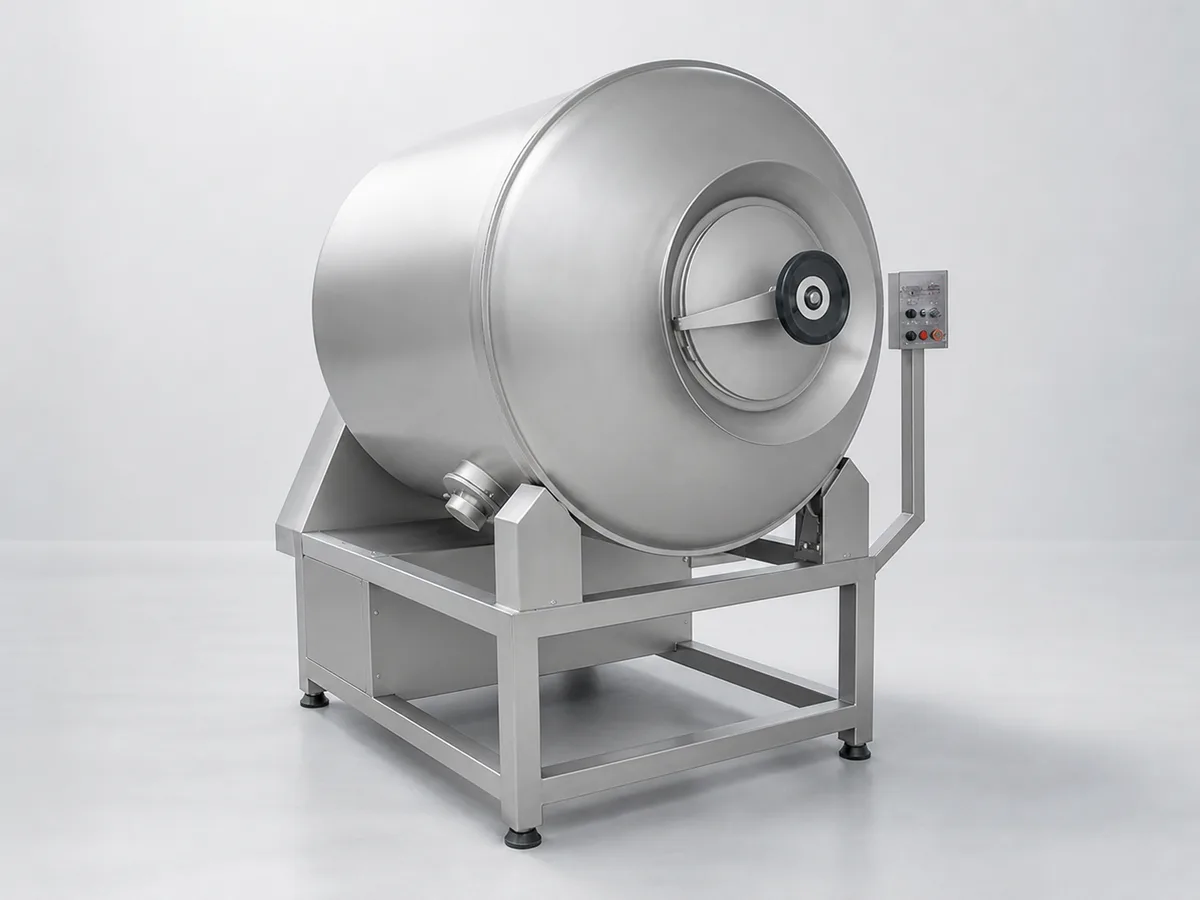

Vacuum massaging and marination systems for poultry, pork, beef and prepared-meat factories.
View 3 consolidated families →

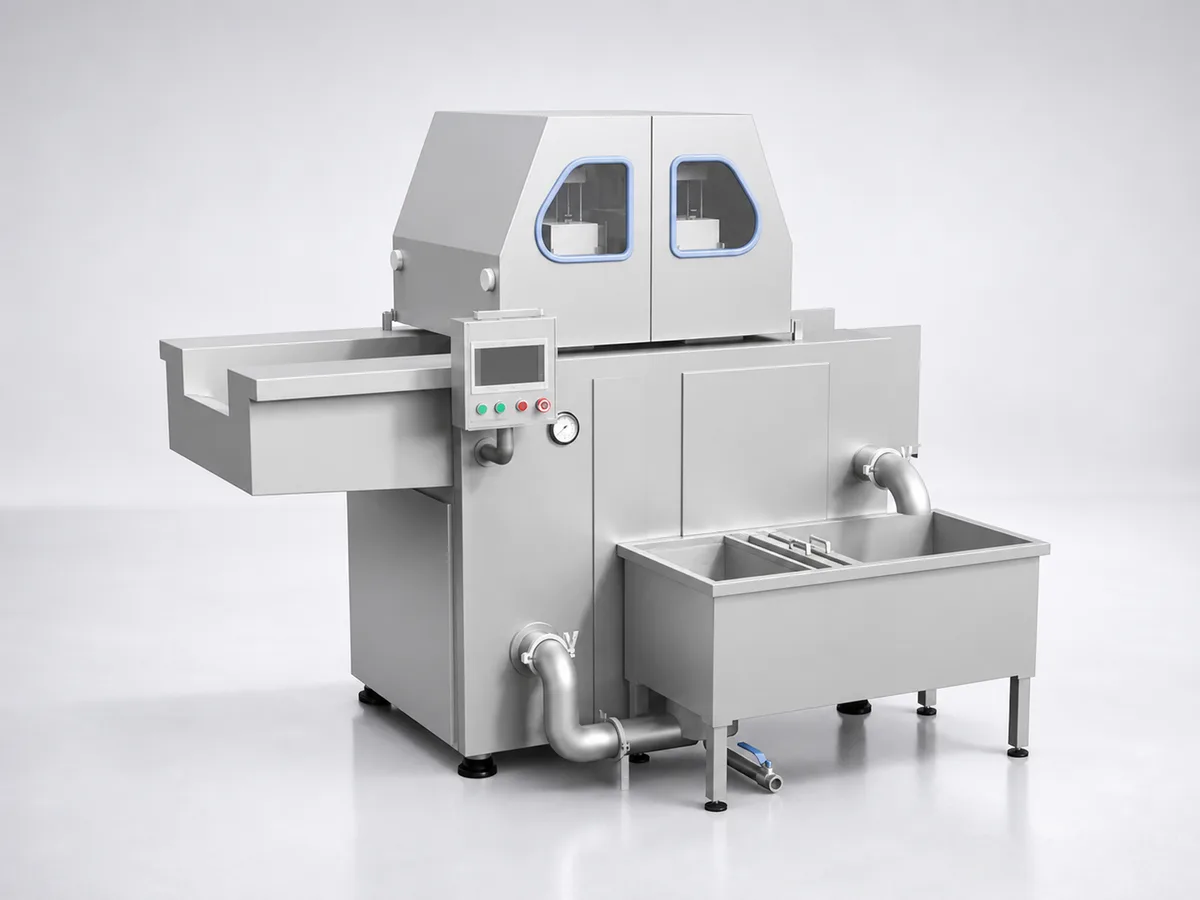

Multi-needle injection systems for controlled brine distribution in poultry, pork and beef.
View 1 consolidated families →

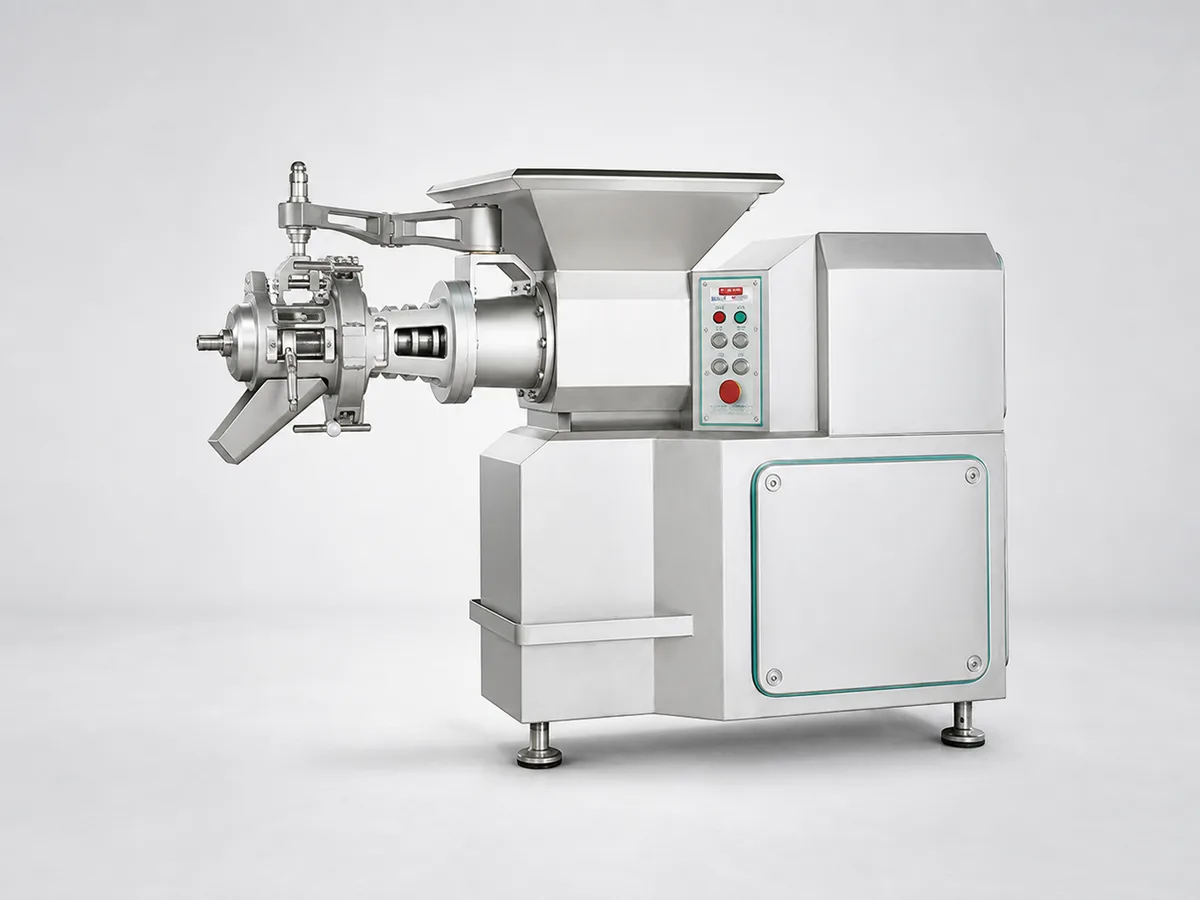

Cutting, crushing and mechanical separation equipment for bone-in meat, poultry and fish.
View 3 consolidated families →

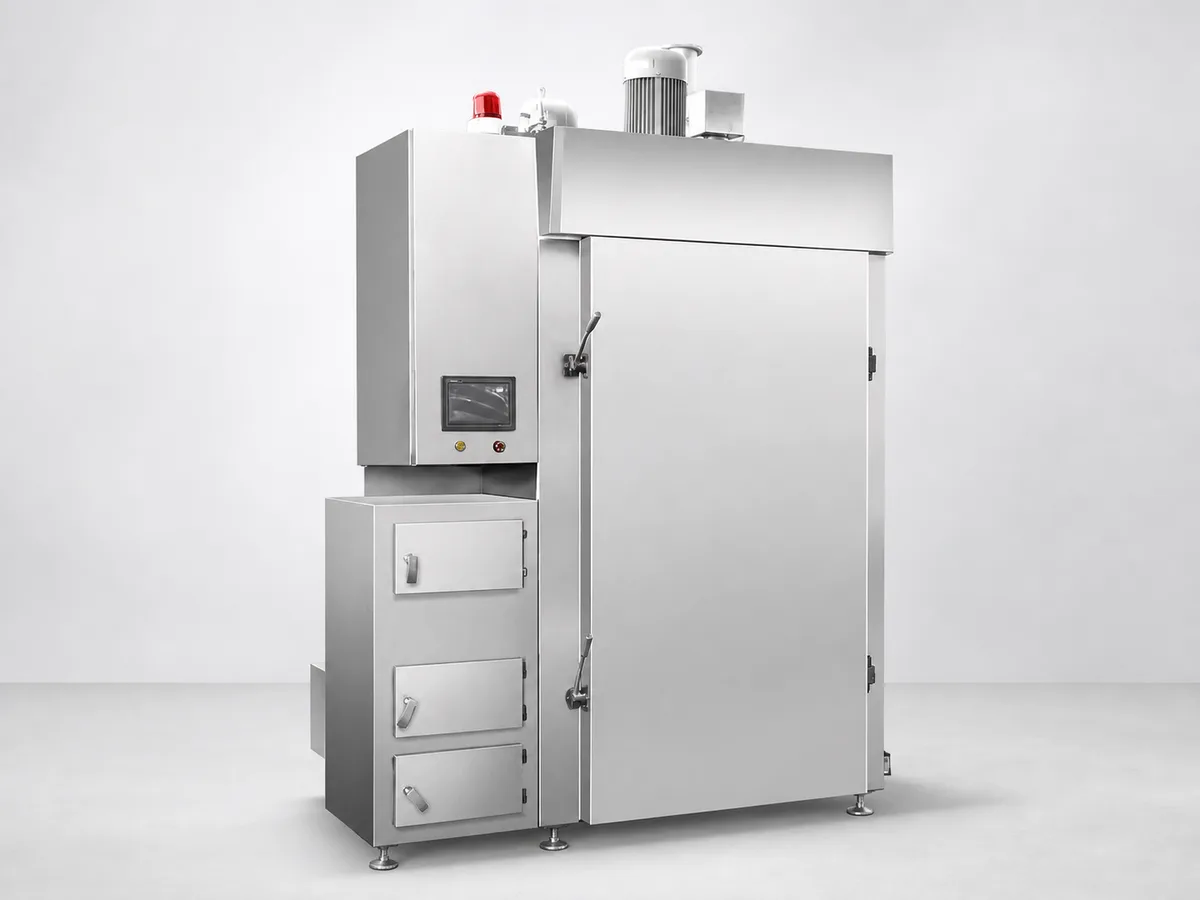

Cooking, smoking, baking, drying and cooling systems for meat and sausage production.
View 1 consolidated families →

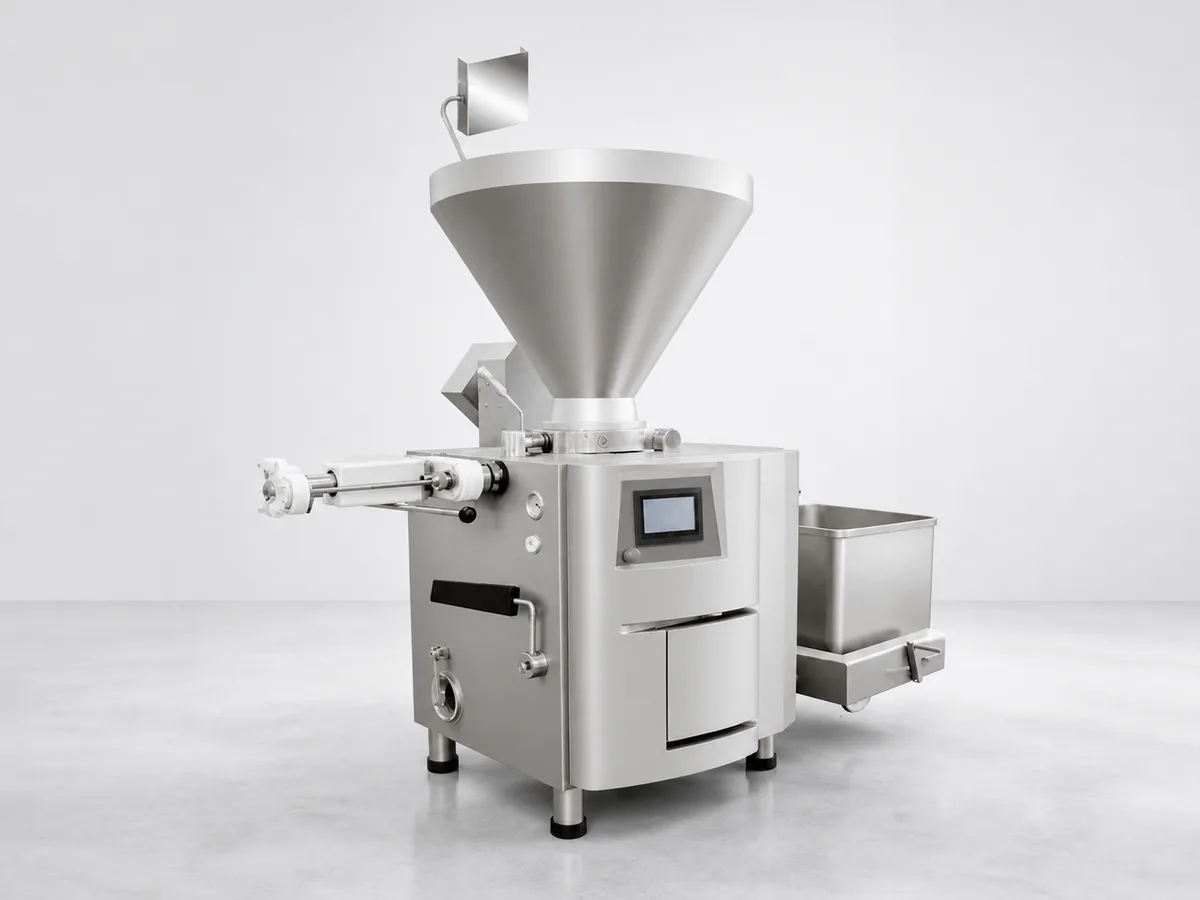

Vacuum filling, clipping, cutting, peeling and downstream sausage handling.
View 3 consolidated families →

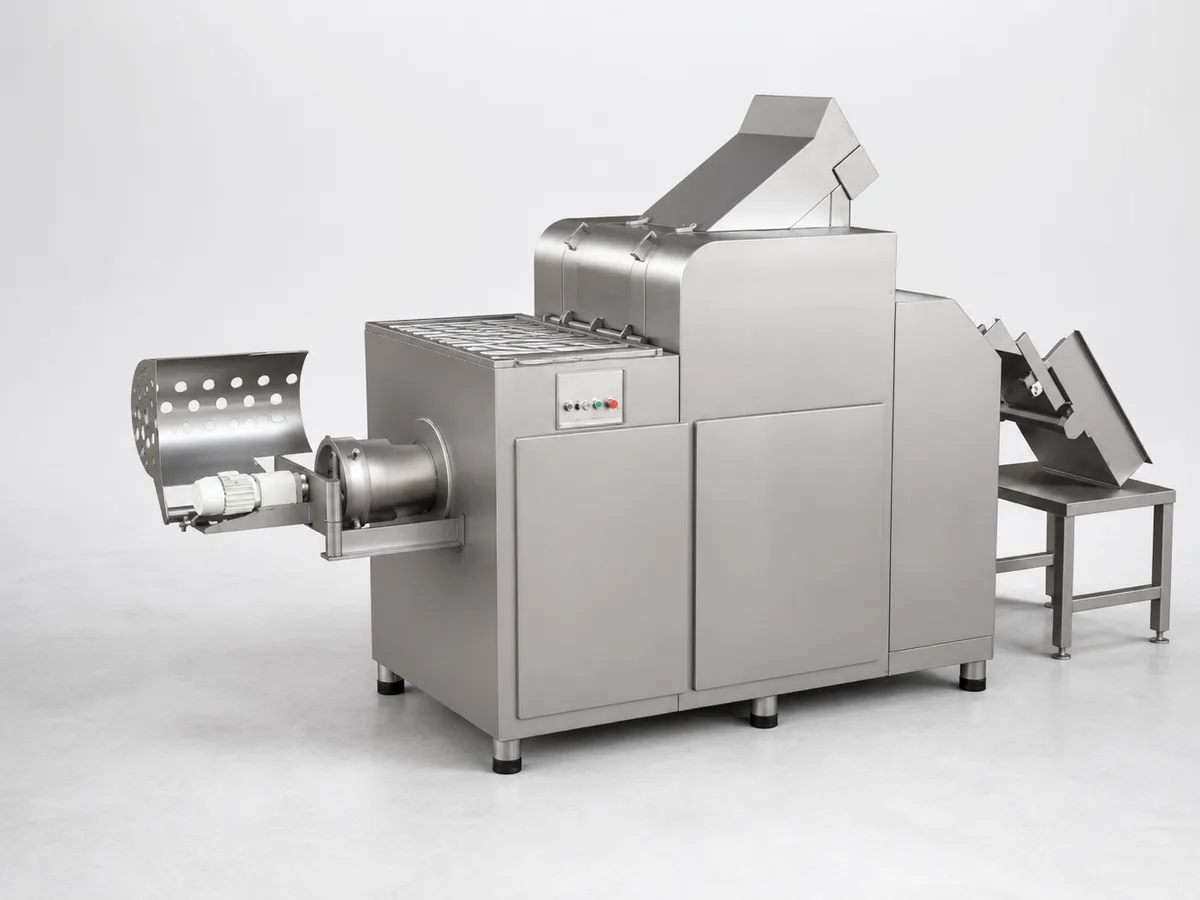

Forming and cutting systems for pet-food and specialty meat products.
View 1 consolidated families →Automatic forming equipment for meatballs and portioned products, plus controlled string tying for loins and prepared meats.
View category → View tying & binding →Integrated sausage, canned luncheon meat and Doner kebab projects, coordinated from raw-material preparation through finishing.
View category → View sausage production line →Turnkey cattle, sheep and poultry slaughterhouse processing systems.
View category →A slice, a strip, a dice and a shred are different acceptance targets. Give the supplier a drawing or a retained sample before comparing machines.
For slices, specify thickness; for strips, thickness, width and desired length; for dice, all three dimensions. For shreds, describe the required fibre appearance and acceptable length variation. State tolerances and the proportion of undersize pieces you will accept.
Record whether the sample is raw or cooked, its measured temperature, incoming dimensions and fat or connective-tissue content. Do not treat “frozen-tempered” as equivalent to an untempered frozen block. Ask the supplier to confirm the permitted feed condition for the proposed model.
Request an inlet sample, the cutting configuration and a representative output sample from the same run. A cooked-meat demonstration alone does not establish performance on your raw material. Record accepted output separately from offcuts and rejects.
Technical reference: Urschel's meat-cutting application notes distinguish dice, strip and shred applications and make capacity conditional on material and feeding. This is an industry reference, not a HELPER performance claim. The checks above are a proposed purchasing brief; confirm HELPER suitability through the meat cutter model pages and a product-specific trial.
A broad meat-equipment catalogue becomes useful only when every category has a clear process role. Begin with the state of the incoming meat and the measurable output required from the next operation.
| Incoming condition | Process objective | Equipment direction | Define before selection |
|---|---|---|---|
| Frozen blocks or hard temper | Reduce to processable pieces without uncontrolled thawing | Flakers, pre-breakers and grinders | Block size, core temperature, required particle and downstream load |
| Fresh boneless meat | Slice, dice, strip, portion or grind | Industrial meat cutting equipment | Muscle geometry, temperature, cut drawing, tolerance and yield |
| Comminuted formulation | Develop particle, protein extraction and mix uniformity | Bowl cutters and mixers | Batch recipe, temperature rise, endpoint and discharge sequence |
| Whole-muscle or portioned meat | Add brine, marinade and controlled mechanical action | Injectors and vacuum tumblers | Pickup/yield target, needle pattern, vacuum, time and temperature control |
| Sausage batter or ground mix | Fill, portion, close, link, cook and finish | Sausage equipment and complete lines | Casing, calibre, portion, accepted rate, thermal program and package |
| Formed or filled product | Apply validated thermal process and cooling | Smokehouses and thermal systems | Product load, trolley/rack, lethality process, uniformity and cooling |
The slowest repeatable operation, sanitation window, changeover or thermal batch can set the real line capacity. Use accepted product, not isolated nameplate throughput.
Capacity boundary: published model values require confirmation against product condition and configuration. For a complete line, calculate effective capacity from batch timing, changeover, sanitation, thermal cycles and the agreed operating window.
Normal and difficult raw material, accepted output, yield, temperature, cut/texture/portion limits and reasons for rejects.
Footprint, service clearance, loading/discharge interface, electrical and process utilities, drainage, exhaust and hygiene zoning.
FAT/SAT scope, manuals, training, cleaning method, preventive maintenance, recommended spare parts and destination-market documentation.
Compare manufacturers on the same product, process and acceptance boundary. A long machine list is not enough unless the supplier can connect raw-material condition, finished-product quality, effective output and factory integration.
Agree the raw material, temperature, recipe, cut or texture target, run duration, accepted output and reject criteria before the trial.
Review fabrication capability, inspection records, food-contact material documentation, controls, guarding and the proposed FAT and SAT scope.
Define layout interfaces, utilities, commissioning, operator training, manuals, preventive maintenance and recommended spare parts in the quotation.
These answers keep model selection, complete-line output and acceptance evidence within the same project boundary.
Select from the incoming meat condition and the required next process result. Define temperature, block or piece dimensions, recipe, target cut or texture, accepted output, yield and downstream interface before comparing models.
No. Complete-line output is limited by the slowest repeatable operation plus changeover, sanitation, thermal cycles, rejects and buffers. Acceptance should use saleable product over an agreed operating window.
Use normal and difficult raw material at defined temperatures, record the recipe and run duration, and agree quality, yield, temperature rise, reject and cleaning criteria. The trial scope should match the proposed configuration.
A complete line is more suitable when multiple preparation, forming, thermal or packing operations must be balanced and their interfaces need coordinated controls. A standalone machine fits when upstream and downstream responsibilities are already defined.
Compare suppliers on the same product and acceptance boundary, including representative trials, food-contact construction, controls and guarding, FAT and SAT, layout and utilities, documentation, training, maintenance and spare-parts scope.
Plan the next decision
Send raw-material condition, product dimensions, required output and factory utilities.
