Connect meat preparation, precision filling, linking or clipping, thermal processing, cooling and packing around the product you need to make.
Start with a complete production route when the full process is in scope, or compare the filling and linking families when your upstream and downstream equipment are already defined.
Define preparation, filling, linking or clipping, smokehouse treatment, cooling and packing as one coordinated project boundary.
Plan the complete line →
Compare filling method, portion control, casing format and closure requirements before connecting the thermal process.
Compare filling equipment →
Choose the handling route around casing type, link length, hanging method, separation and the next processing step.

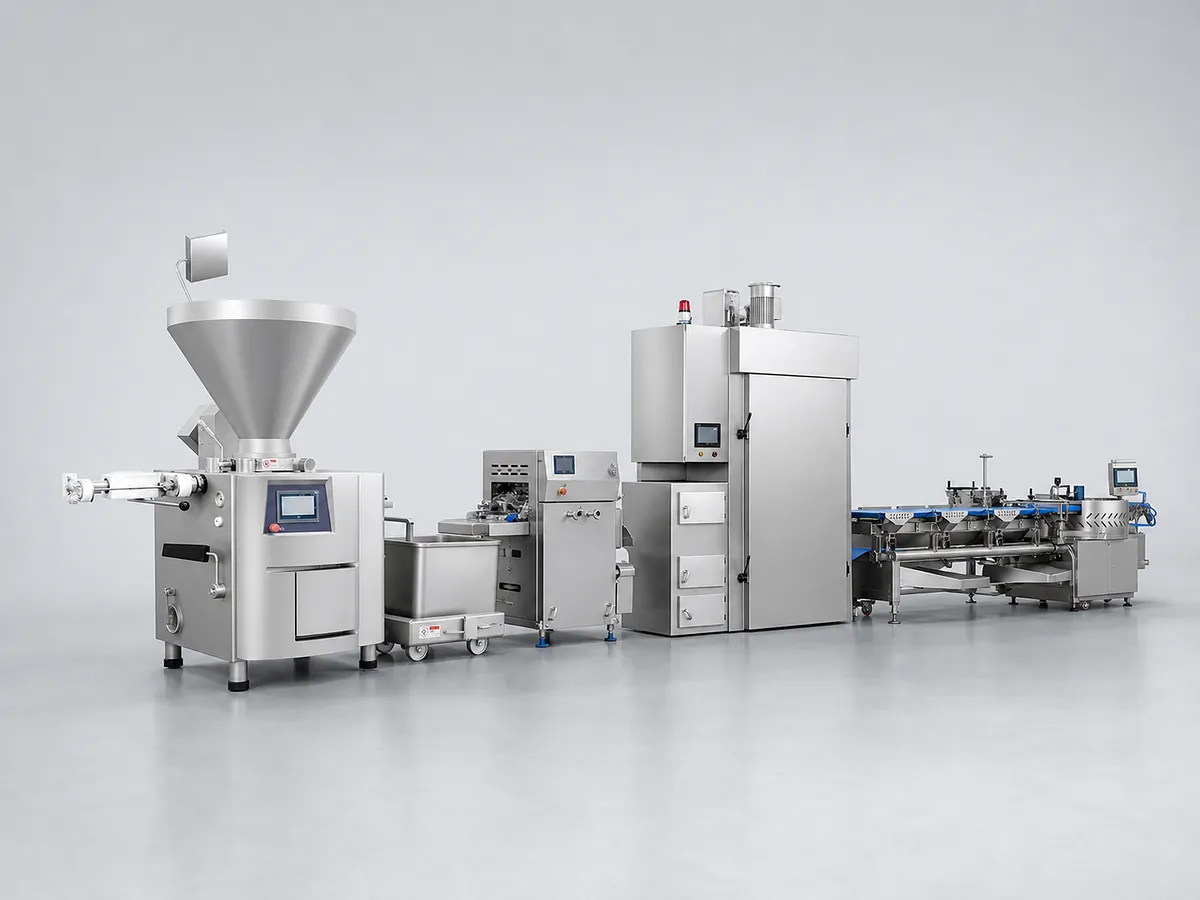

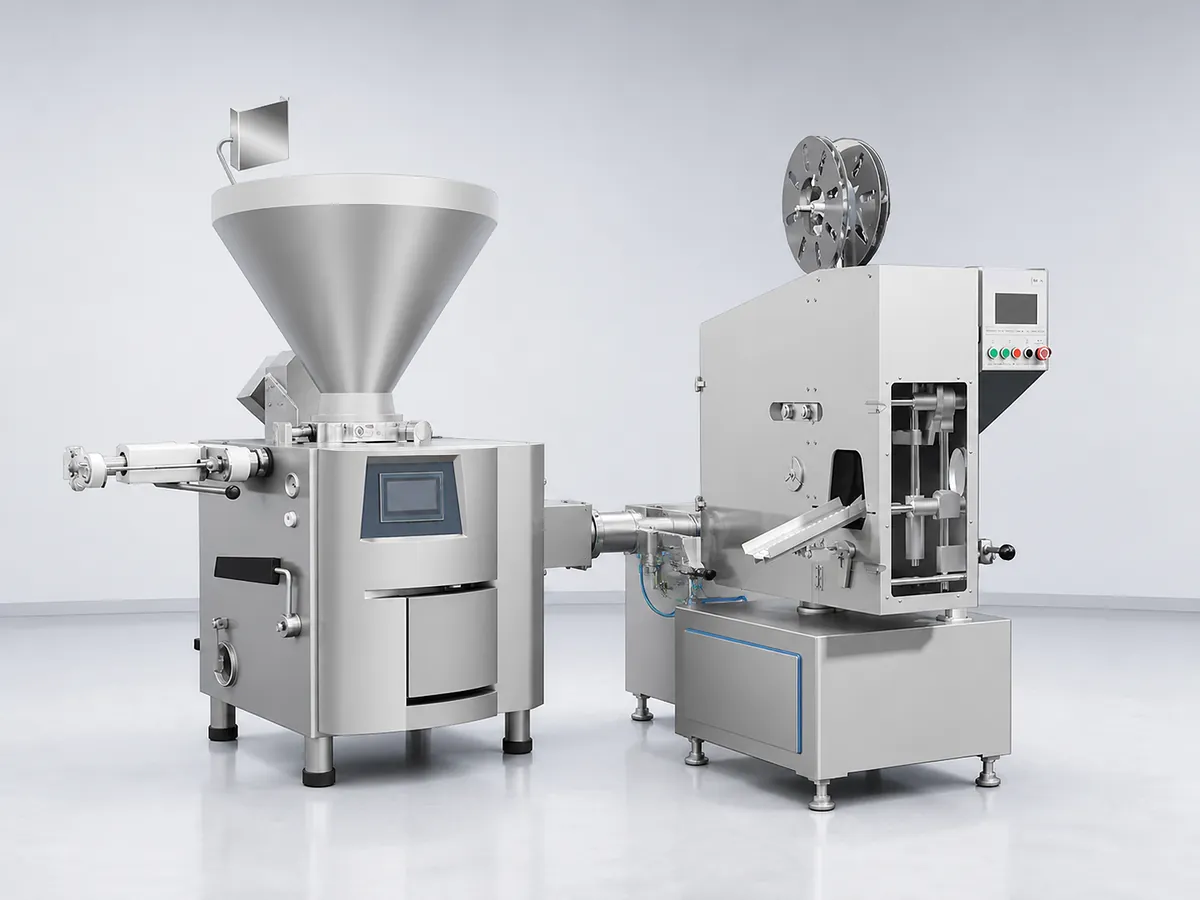

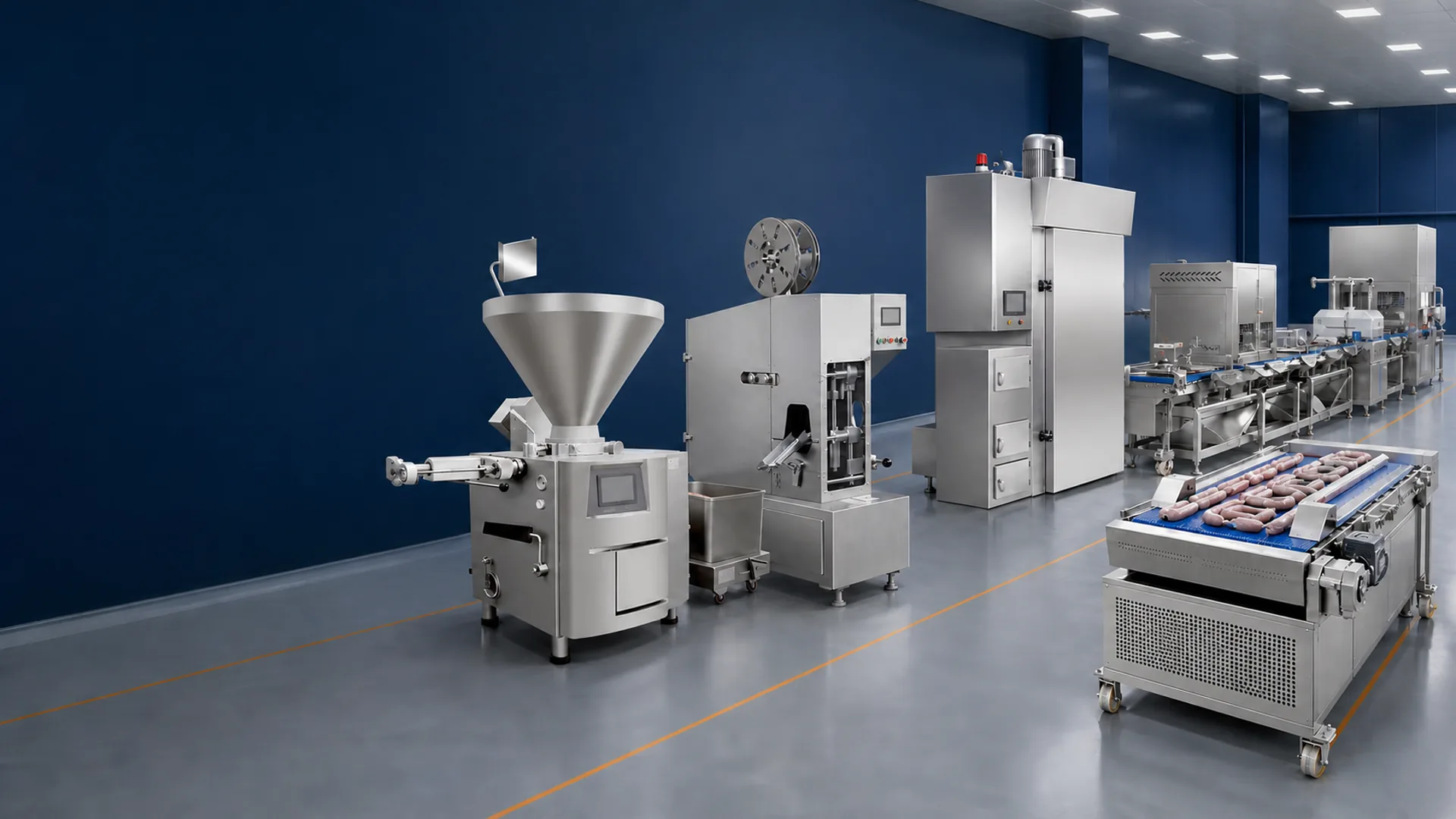

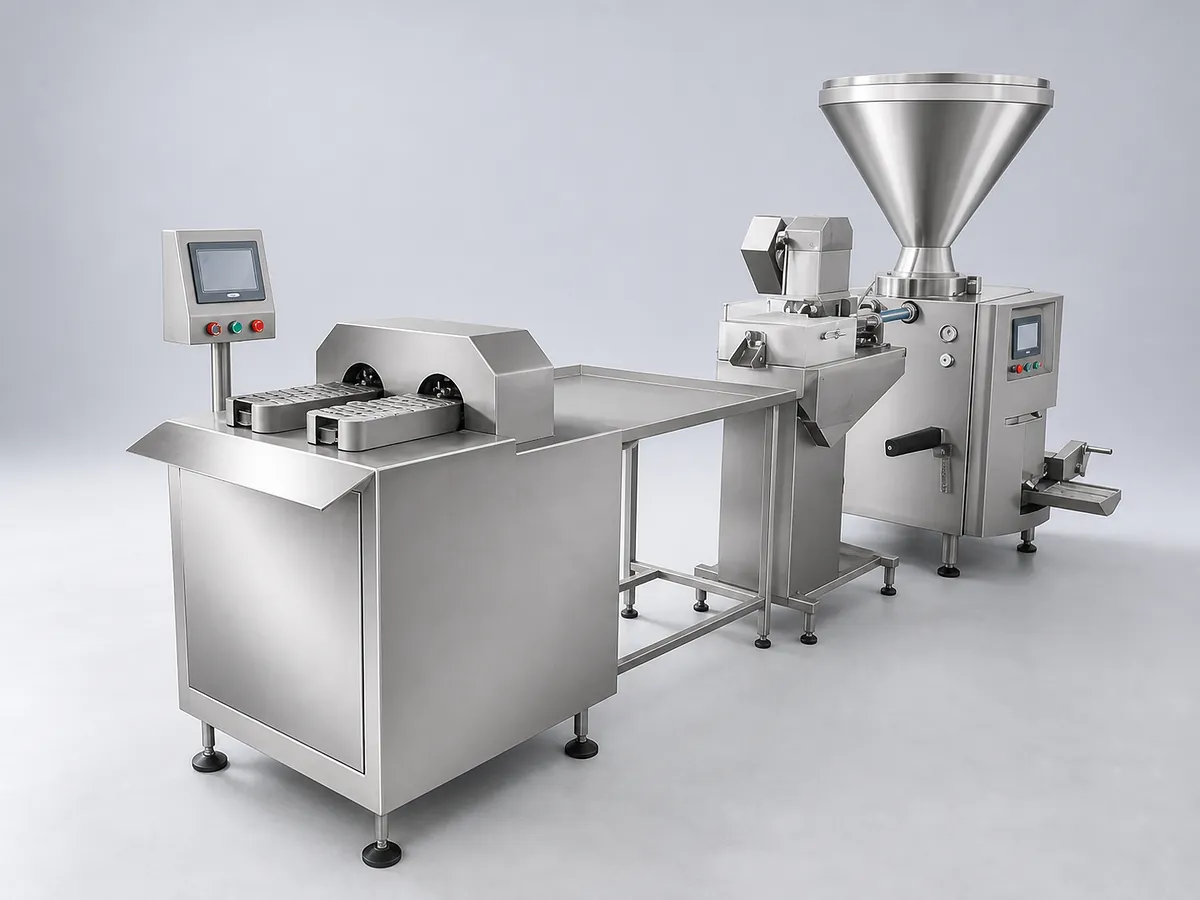

Compare linking equipment →Image note: The route and option images above are product-family visuals created from HELPER equipment references. They explain selection paths and do not represent a delivered customer installation. Final equipment arrangement is confirmed by the approved project proposal.
Share the sausage type, casing, dimensions, recipe condition, target output, thermal route, pack format and available factory space for an engineering review.
Plastic, collagen and alginate gel are three important industrial options, but they are not the whole picture. Natural and cellulose or fibrous casings are also widely used. The choice affects whether the casing is eaten or peeled, how it is filled and closed, and which downstream modules the line needs.
Prepared from animal intestinal tissue. It gives a traditional bite and appearance, while diameter and strength can vary more than manufactured casings.
A regenerated protein casing made from animal collagen. It offers a more consistent diameter; edible and non-edible grades both exist.
Cellulose casings are commonly peeled from skinless products. Fibrous versions add reinforcement for larger diameters and dimensional stability.
A synthetic barrier casing available in different structures and permeability levels. It is used where moisture or oxygen control and a uniform shape matter.
An edible calcium-alginate skin formed around the product during co-extrusion. It is a process system rather than a conventional preformed casing.
| Casing family | Typical handling route | Key specification questions | Equipment decision |
|---|---|---|---|
| Natural | Stuff → link → cook, smoke or dry | Species, caliber range, length, strength and preparation | Horn, pump pressure, linker and hanging method |
| Collagen | Stuff → twist or clip → process | Edible grade, caliber, wall strength and moisture condition | Stuffing pressure, portioning and closure settings |
| Cellulose / fibrous | Stuff → process → peel when required | Permeability, reinforcement, shrink and release behavior | Peeler, smokehouse program and handling layout |
| Plastic | Stuff → clip or seal → cook → remove before eating | Barrier level, sealability, shrink and temperature resistance | Clip or seal system and thermal-cycle compatibility |
| Alginate gel | Co-extrude → set gel → portion → process | Gel formulation, calcium setting, coating thickness and product route | Dedicated co-extrusion, dosing and setting modules |
Selection boundary: “Edible” and “non-edible” are grade- and supplier-specific; verify the casing declaration and local labeling rules for the target market. Classification references: USDA FSIS, FAO sausage-casing guidance, and peer-reviewed alginate co-extrusion research.
Use a worked process concept to discuss the handoffs between equipment stages.
Follow preparation, filling, linking, thermal processing and separation. This is a conceptual design, not a completed customer case.
