Multiple cutting formats
The catalog lists cubes, strips and slices for compatible produce.
Products / Vegetable Cutters / QD-02
HELPER · Product specifications

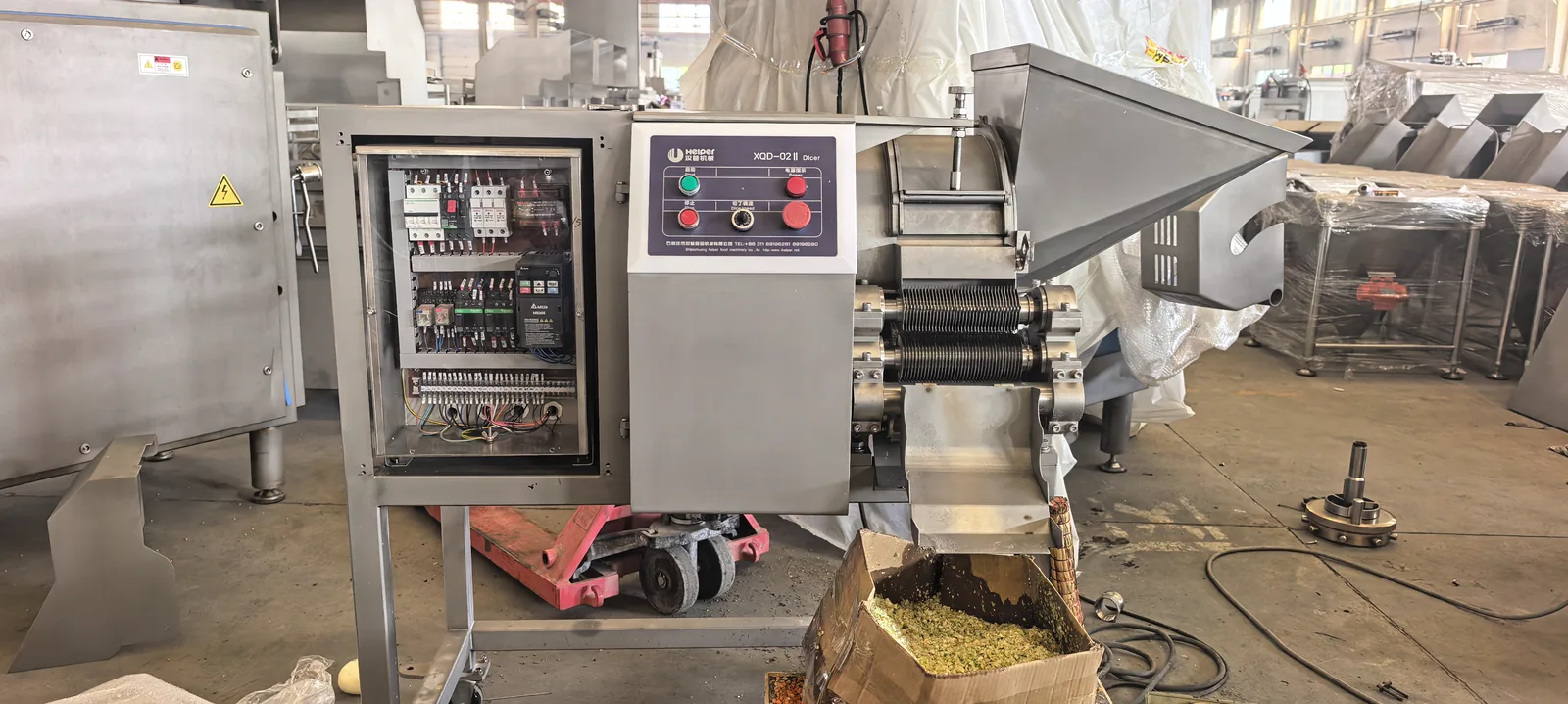

QD-02 Vegetable & Fruit Dicer
Cut root vegetables, onions, apples, peppers and suitable fruit into cubes, strips or slices using stainless-steel construction and alloy-steel knives.
View specifications Request a quotation
Design and operation
Produce selection
Carrot, potato, onion, apple and pepper are listed applications.
Cold-fruit processing
The catalog discusses selected fruit at approximately −2°C; trial the specific product.
Second-generation option
The catalog separately describes QD-02II feed and knife-speed improvements; confirm which generation is quoted.
2026 product catalog
QD-02 technical data
| Model | QD-02 |
|---|---|
| Power | 3.75 kW |
| Catalog productivity entry | 1000 / 4000 kg/h; confirm product and operating condition |
| Weight | 400 kg |
| Dimensions | 1440 × 860 × 1400 mm |
| Cube sizes | 3, 4, 5, 6, 7, 8 and 10 mm |
| Strip lengths | 19, 25, 30, 40 mm or free length; tooling dependent |
This schedule is for the catalog QD-02. QD-02II is described separately, and equivalence to the previously used XQD-02II name has not been established.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference
Use this process demonstration together with the model-specific technical schedule above.
Plan your QD-02 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
