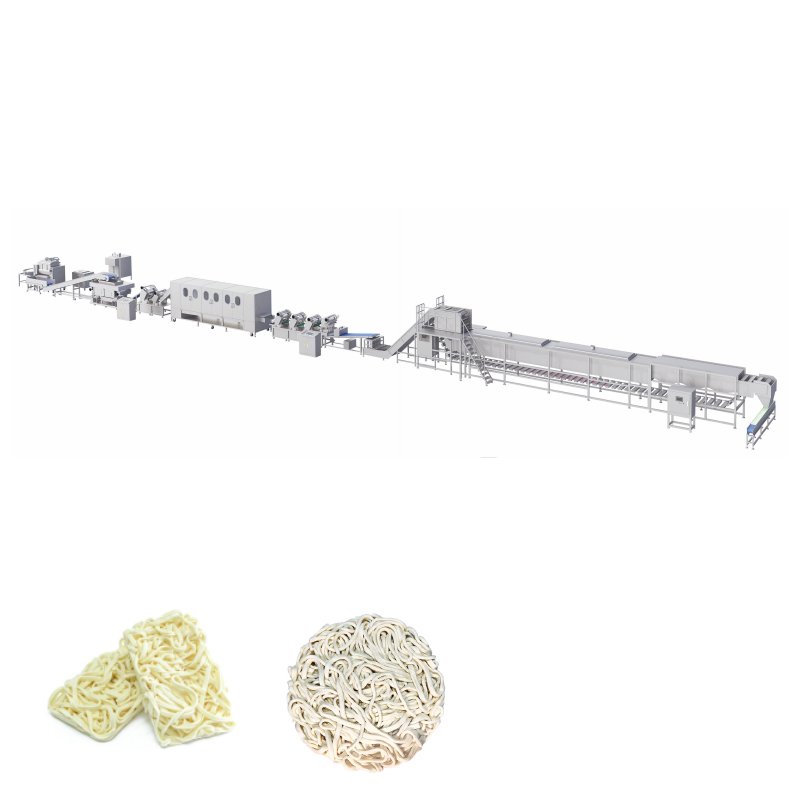

Automatic Pre-Cooked Frozen Ramen & Udon Line
The DM-440 project line carries noodle dough through rolling and cutting, portions the strands, cooks them under controlled time and temperature, cools or rinses them and transfers the product toward rapid freezing. It supports pre-cooked ramen, udon and related formats where the consumer reheats a frozen portion rather than cooking a dry noodle from the beginning.
Control every stage as one production system
Stable output requires repeatable raw materials, recipes, utilities and downstream handling. HELPER reviews the complete route before confirming equipment, controls and factory layout.
Why process conditions determine machine performance
Cooking changes starch structure and makes the product more vulnerable to sticking and deformation. Portion weight, water circulation, cooking time, noodle thickness and solids loading must be balanced. Cooling stops further cooking, removes surface heat and prepares portions for freezing; excessive rinsing can affect flavor and solids yield. Transfer design should preserve portion shape while avoiding long residence in an unsafe temperature range.
Provide ingredients, moisture, temperature, batch history and the acceptable finished-product standard.
State good finished output after trimming, cooking, drying or freezing—not only raw material input.
Confirm voltage, compressed air, water, steam, drainage, extraction and refrigeration where applicable.
Agree product samples, output duration, quality tolerances and changeover criteria before manufacture.
Interpret published data in the context of your product
The published published range of 5,000–10,000 portions per hour is project-dependent. Portion weight, basket or belt pitch, cook time, cooling duty and freezer loading determine accepted output. The freezing tunnel is an engineered interface: belt elevation, portion spacing, inlet temperature, target core temperature and available refrigeration capacity must be confirmed before layout approval.
Final specifications are confirmed after HELPER receives the real recipe, product dimensions, required capacity, factory utilities and available floor plan. Where a source does not publish a value, the project quotation should identify it as a confirmed engineering parameter rather than an assumed catalog figure.
Automatic Pre-Cooked Frozen Ramen & Udon Line FAQ
Is the published capacity guaranteed for every product?
No. It defines a reference equipment envelope. Contract capacity is confirmed from the actual recipe, format, acceptance standard and downstream process.
Can the line be customized?
Yes. Working width, cutters or tooling, controls, conveyors and downstream modules are configured after product and factory review.
What is required before quotation?
Provide product samples or photos, formula, dimensions, target output, destination voltage, utilities, floor plan and the required final process.
How is factory acceptance defined?
The order should state test material, run duration, accepted output, weight or dimension tolerances, sanitation checks and the responsibility for downstream equipment.
Specify Automatic Pre-Cooked Frozen Ramen & Udon Line from the finished product backwards
A reliable quotation starts with the product and process target rather than a catalogue capacity alone. Provide sheet thickness, dough temperature, hydration, rest time, cutting format and downstream transfer. Samples, drawings and representative raw materials allow the supplier to identify the working configuration and any limits that should appear in the signed specification.
Published capacity is a reference condition, not an unconditional guarantee for every recipe. Sustainable performance must be measured as accepted product after normal rejects and interruptions. The acceptance plan should record sheet uniformity, product dimensions, moisture, texture, trim rate and accepted kilograms per hour. Agree the run duration, staffing, utility conditions and sampling frequency before the factory acceptance test so both parties evaluate the same result.
Confirm voltage and frequency, connected load, compressed air, water, drainage, exhaust or refrigeration where applicable. Check loading height, discharge direction, service clearance, floor loading and the real interface with upstream and downstream equipment.
Review flour dust, dough residue, roller access, belt release and recipe changeover. The sanitation method must suit the machine’s electrical protection and the factory’s documented food-safety program.
Use the intended material and product format. Record start-up loss, stable output, quality variation, alarms, downtime, cleaning time and changeover time. Repeat critical checks after installation with actual site utilities and trained operators.
Send product photos or samples, formula where relevant, target hourly output, shift pattern, pack or downstream format, factory layout and utility schedule. Mark mandatory requirements separately from optional future expansion.
