Vacuum filling
The vane pump portions material under vacuum to reduce entrained air.
Products / Sausage Fillers / ZKG-6500
HELPER · Product specifications

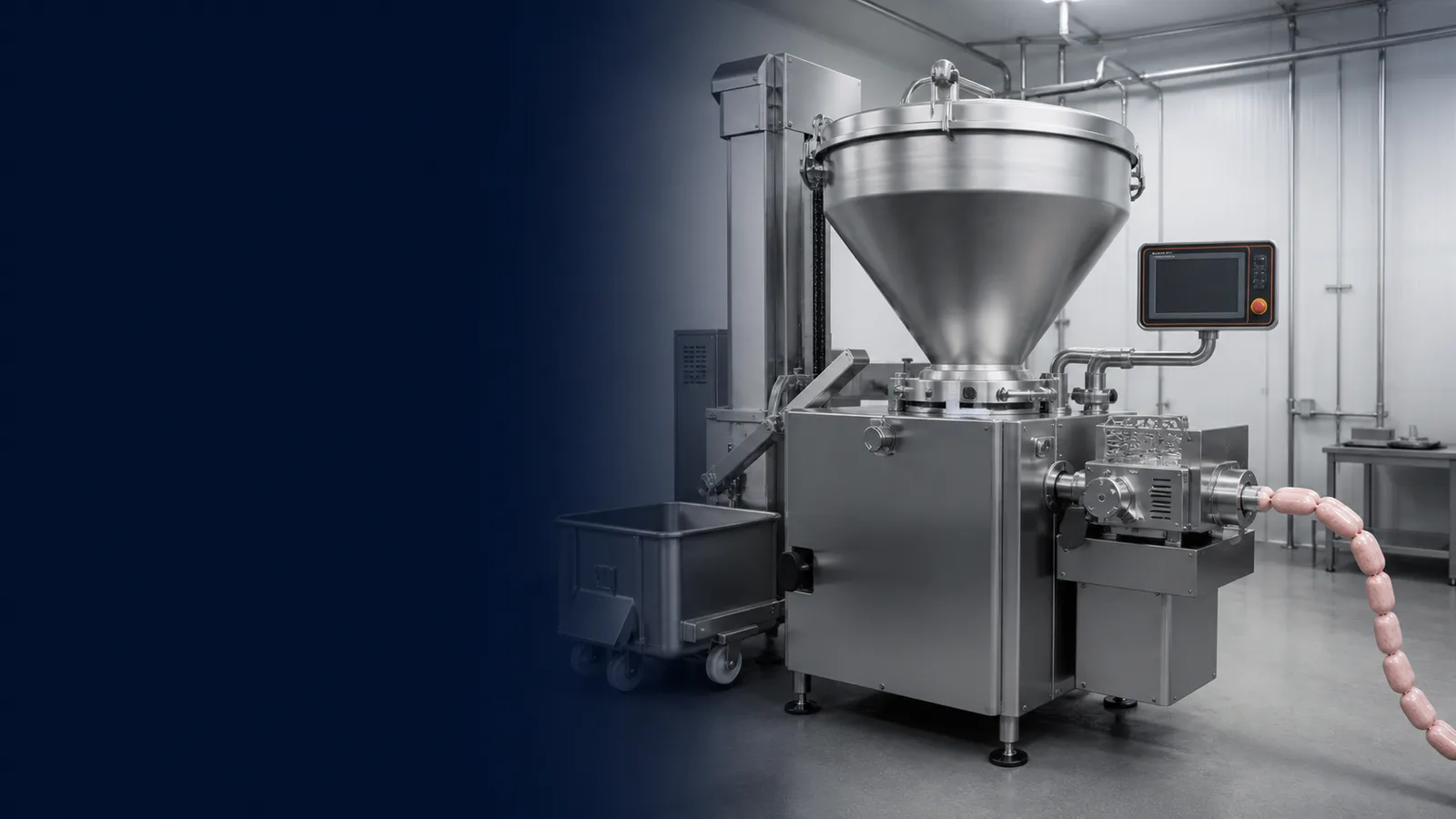

ZKG-6500 Vacuum Sausage Filler
ZKG-6500 quantitative vacuum filler with servo-controlled portioning, vane-pump feeding and high-speed twisting integration for larger output.
View specifications Watch operation video Request a quotation
Design and operation
Servo drive
Filling and twisting are driven by servo motors with PLC and operator interface.
Automatic loading
The catalog includes a lifting device for hopper loading.
Casing and clipping
The catalog describes natural, collagen and smoked casing use and connection to a compatible clipper.
2026 product catalog
ZKG-6500 technical data
| Model | ZKG-6500 |
|---|---|
| Portioning range | 5–9,999 g |
| Filling capacity | 6,500 kg/h |
| Hopper volume | 250 L |
| Power | 9.7 kW |
| Voltage | 380 V |
| Weight | 1200 kg |
| Dimensions | 1750 × 1400 × 1900 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Official operation evidence
See the filling, linking and hanging sequence
This HELPER product video shows the vacuum-filling platform operating with downstream linking and hanging modules. The original frame and machine arrangement are preserved so buyers can inspect the product path and hand-off between operations.
What the footage verifies
It visibly confirms the coordinated product path from filling through linking and transfer to a hanging arrangement, together with the operator access and downstream hand-off shown in this configuration.
What still requires project testing
The footage does not prove a universal finished-output rate, recipe suitability, casing compatibility or portion accuracy. Confirm these against your material, casing and acceptance protocol before purchase.
Plan your ZKG-6500 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
