Wire choice
Select the wire diameter and mold for the closure.
Products / Sausage Clippers / JLSK-2
HELPER · Product specifications

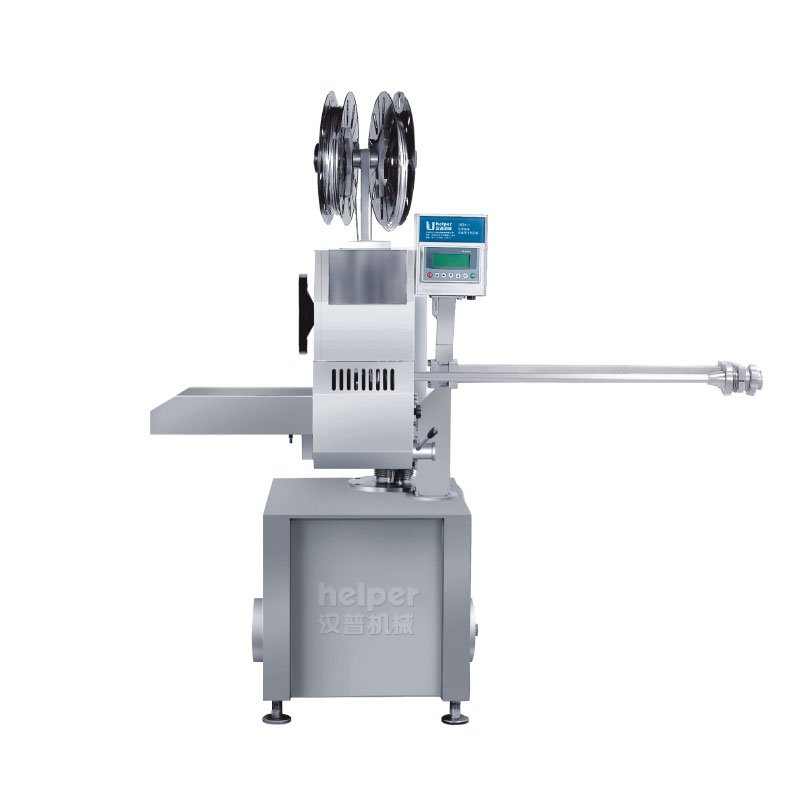

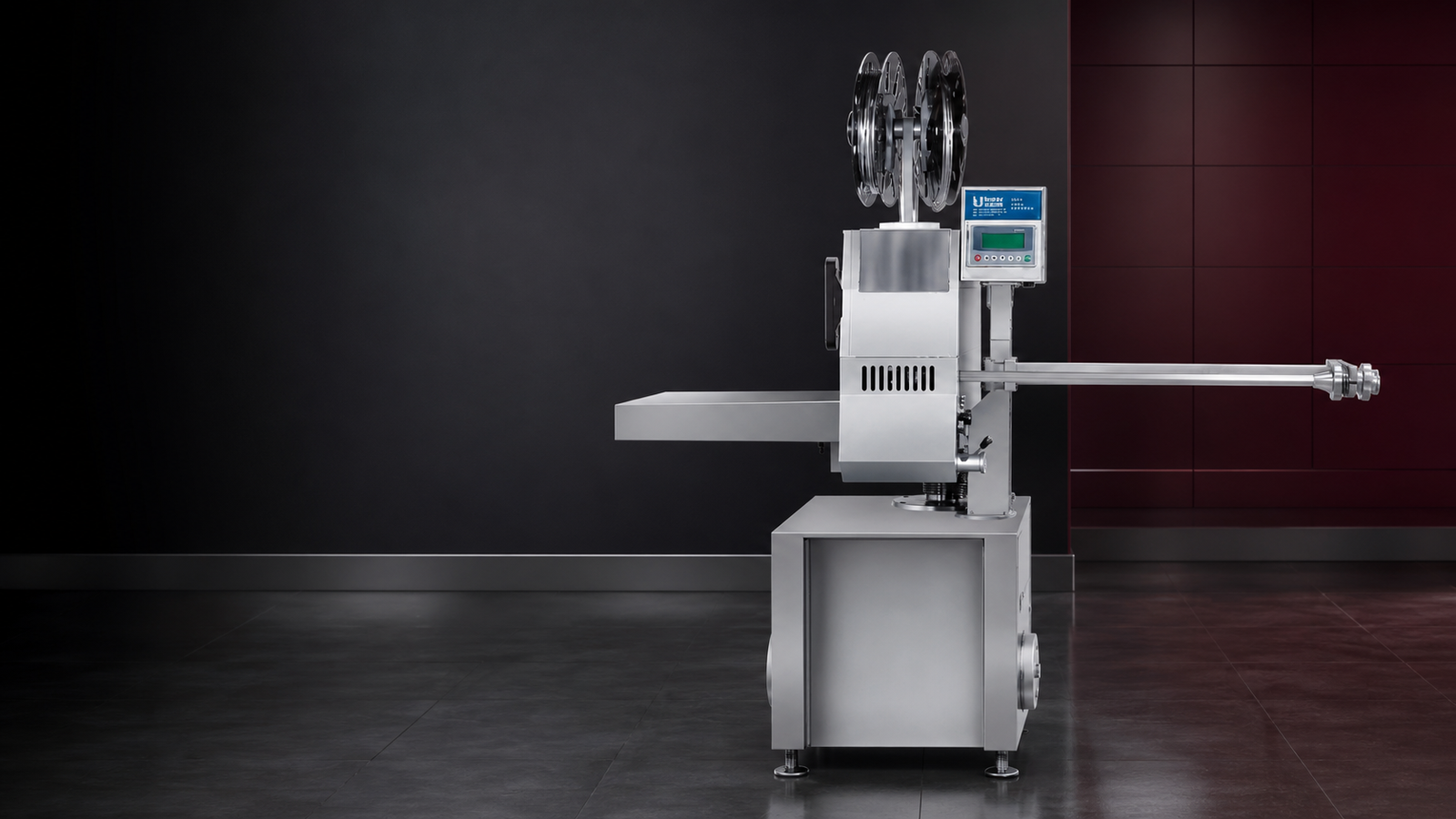

JLSK-2 Aluminum-Wire Double Clipper
Mechanical aluminum-wire clipping with servo control, interchangeable molds and an interface for a filling machine.
View specifications Request a quotation
Design and operation
Visual control
The operator interface supports machine operation and setup.
Lubrication and counting
The catalog includes automatic lubrication and cutting-count control.
Double filling tubes
An optional double-tube arrangement supports production handling.
2026 product catalog
JLSK-2 technical data
| Model | JLSK-2 |
|---|---|
| Catalog configuration | Servo adjustable-speed |
| Table speed | 120 cycles/min; five-stage speed adjustment |
| Power | 2.7 kW |
| Voltage | 220 V |
| Casing flat width | 28–85 mm |
| Clip center height | 920–1000 mm |
| Weight | 800 kg |
| Dimensions | 1160 × 1470 × 1400 mm |
| Mold sizes | 16, 19, 21 |
| Aluminum wire diameters | 2.1, 2.45, 2.7, 2.9 mm |
The table specifies 120 cycles/min for the adjustable-speed version; the English feature list says 84 times/min. Confirm the rated speed of the quoted drive. Single-speed equipment is mentioned but has no separate full table here.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference
Use this process demonstration together with the model-specific technical schedule above.
Plan your JLSK-2 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
