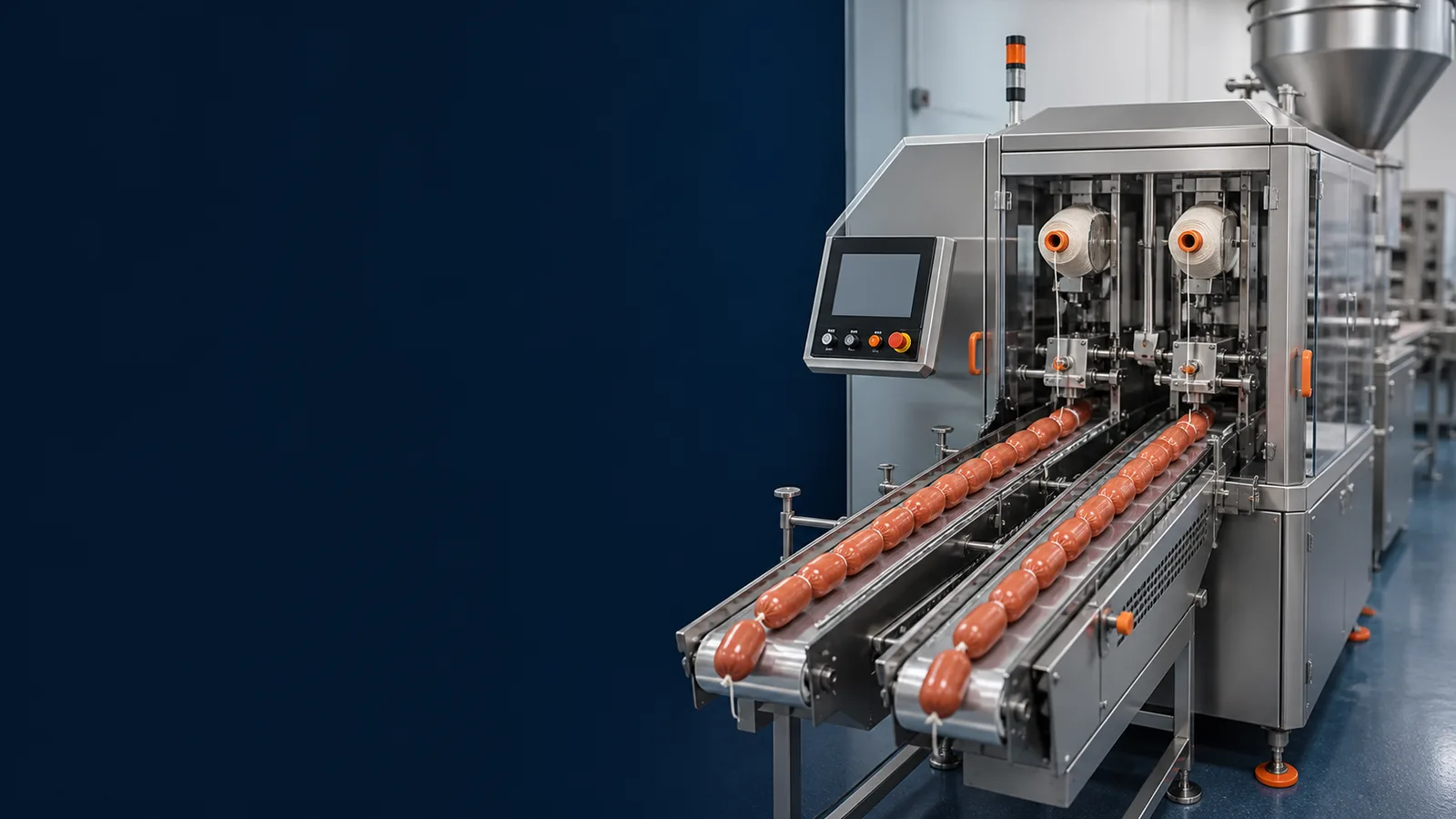

ZX Dual-Track Sausage Tying Machine
An automatic double-track sausage tying machine with servo drive, PLC and operator interface.
View specifications Request a quotation
Design and operation
Adjustable length
Set sausage length within the listed range.
Double-track production
Two tracks support continuous tying work.
Filling conveyor option
A matching feeding conveyor can simplify operator loading.
2026 product catalog
ZX technical data
| Model | ZX |
|---|---|
| Casing diameter | 9–35 mm |
| Single sausage length | 20–280 mm adjustable |
| Capacity | Approximately 100–700 pieces/min |
| Weight | 290 kg |
| Dimensions | 1000 × 1000 × 1200 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Selection boundary
Where the ZX dual-track machine fits
Tie filled casing into individual portions
The ZX uses string tying on two tracks after the casing has been filled. It is suited to products whose presentation or process calls for tied divisions. It does not replace the filler, and the incoming casing must arrive with stable diameter and product pressure.
Define the real size mix
The published working window covers 9–35 mm casing diameter and 20–280 mm adjustable length. The selected string, casing strength, fill firmness and knot position must be tested on each important commercial size.
The catalog capacity is approximately 100–700 pieces/min. Accepted output depends on product length, two-track balance, feeding method, operator replenishment and reject rate.
Trial and acceptance checks
Knot and casing quality
Check knot security, spacing, casing marks, opened ends and product deformation. Agree on measurable defects for both the smallest and largest purchased formats.
Two-track balance
Record output and rejects by track. Test normal feed, short interruption, string replenishment and restart so one track does not hide instability on the other.
Upstream feeding
If the optional feeding conveyor is required, confirm infeed height, spacing and operator loading method. Filled casing should enter without stretching, twisting or uncontrolled accumulation.
Changeover and safety
Measure length adjustment, string change and first-good-piece time. Verify guarding, interlocks, emergency stops and cleaning access around both tracks and the conveyor.
Information HELPER needs before quotation
Provide casing material and diameter, filled-product firmness, required portion lengths, string specification, target accepted pieces per minute and the format arriving from the filler. Add upstream conveyor details, discharge method, available factory space and cleaning rules. Product and casing samples allow the tying quality to be agreed before shipment.
