CONTROL
PLC recipes for repeatable setup
The touchscreen control stores more than ten recipe programs, allowing defined mixing settings to be recalled for different fillings.
Atmospheric mixing · 650 L chamber

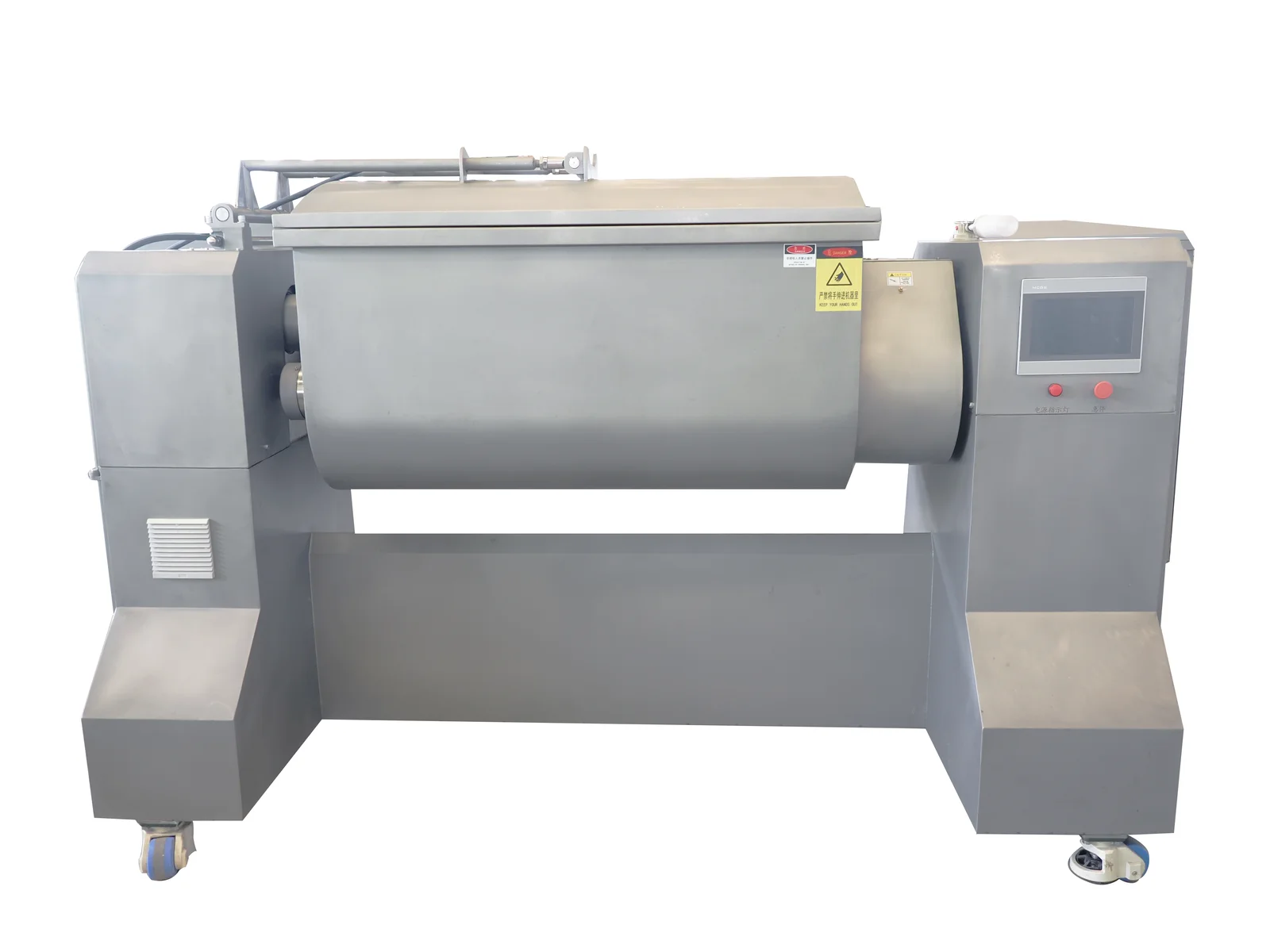

JB-650A Twin-Shaft Stuffing Mixer
A 304 stainless steel mixing platform for filling and prepared-food recipes that need variable-speed twin-shaft blending, stored PLC programs and controlled tilting discharge.
650 LMixing chamber volume
30–60 rpmVariable mixing speed
11.5 kWInstalled power
105°Trough tilt for discharge
Configuration workbench
What changes in the JB-650A
This A-model is not the same specification as the existing JB-650 catalog page. Its supplied data identifies higher installed power, variable-speed mixing, a heavier frame and a PLC control package.
MIXING
Crossing twin-shaft blade action
The supplied specification describes an auger-style, intersecting blade arrangement designed to distribute ingredients uniformly while limiting unnecessary product-structure damage.
DISCHARGE
Tilting trough with pneumatic control
A self-locking pneumatic cylinder supports lid handling, while the mixing trough rotates to approximately 105° to make discharge and access easier.
HYGIENE
304 stainless steel working surfaces
The machine is specified in 304 stainless steel and supports high-pressure water cleaning. Confirm site washdown practice and electrical protection before installation.
Operating sequence
From loading to washdown
The sequence below explains the equipment boundary. Working batch mass, mixing time and acceptance criteria remain recipe-dependent and should be confirmed with a sample or trial plan.
Charge ingredients
Load the defined working batch with lid and operator-safety procedures agreed for the plant.
Run the recipe
Select the stored PLC program and set the 30–60 rpm mixing range for the formulation.
Discharge the batch
Rotate the trough to the discharge position and transfer product to the next controlled step.
Open and wash
Use the open-lid access and the plant’s validated cleaning procedure for product-contact areas.

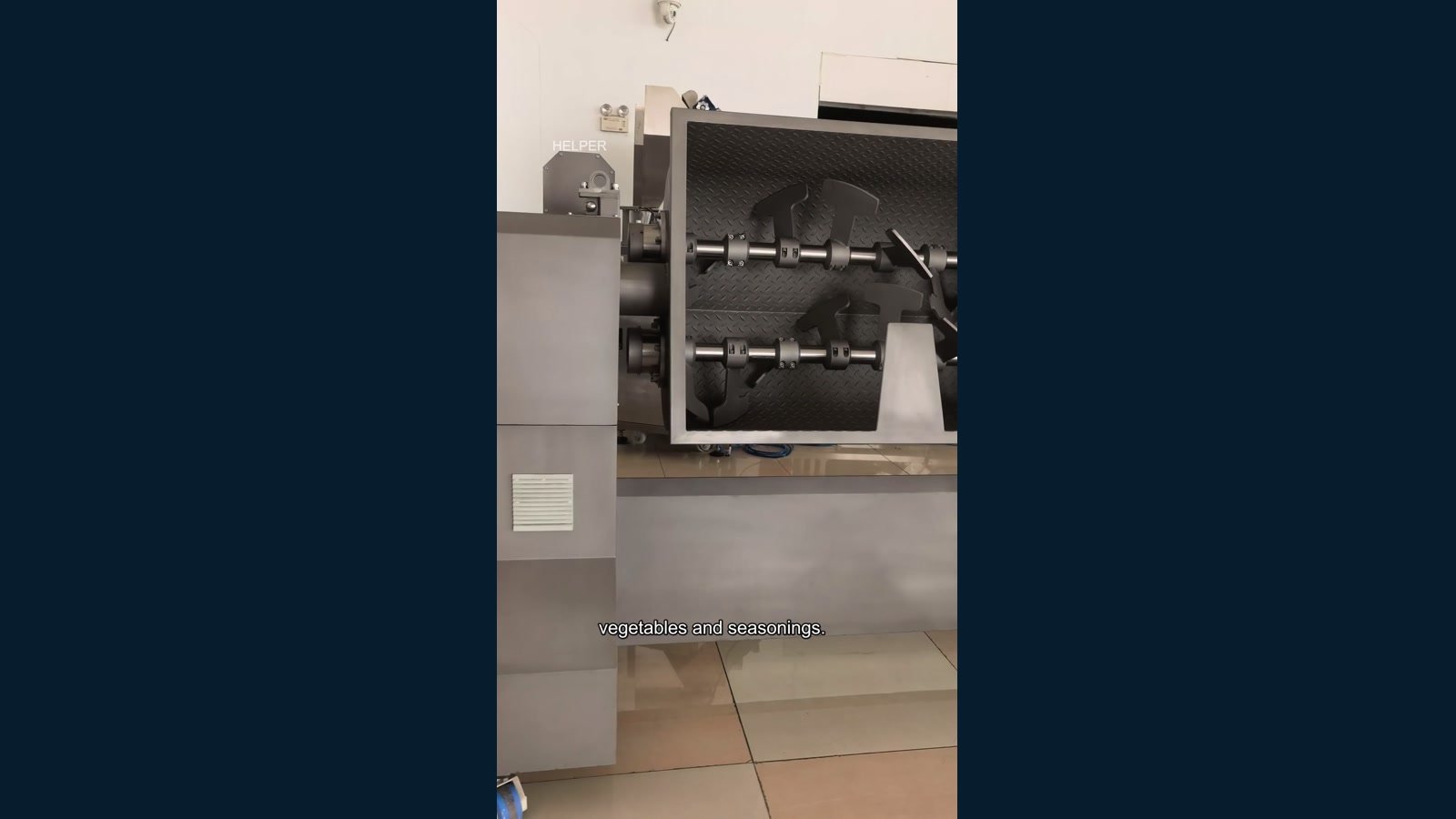

27-second workshop view
See the twin-shaft layout
This owned HELPER video adds motion and internal-layout context that a still image cannot show. The page remains complete without playing it.
What to watch
- 01The two parallel shafts and crossing paddles inside the open trough.
- 02The atmospheric, non-vacuum chamber arrangement and access around the machine.
- 03The scale of the mixing platform relative to the workshop floor and operator.
Source boundary: the YouTube video is titled “JB-650 Non-Vacuum Meat Mixer” and is used here only to illustrate the related twin-shaft platform. It does not replace the JB-650A specifications on this page and is not a loaded production trial.
Supplied technical sheet
JB-650A technical data
Figures below come from the attached JB-650A source document. Confirm voltage, air supply, product-contact finish, final guarding and acceptance conditions in the commercial quotation.
| Model | JB-650A |
|---|---|
| Construction | 304 stainless steel |
| Mixing chamber volume | 650 L |
| Installed power | 11.5 kW |
| Mixing speed | 30–60 rpm, variable-frequency control |
| Control | PLC touchscreen; more than 10 recipe programs |
| Lid / drive assistance | Pneumatic cylinder with self-locking function |
| Discharge | Trough rotates approximately 105° |
| Machine weight | 1,500 kg |
| Machine dimensions | 2,586 × 1,270 × 1,712 mm |
| Maximum open-lid height | 3,071 mm |
Confirm the working batch—not only the chamber size
Send your filling type, ingredient temperatures, target batch mass, mixing time, utilities, cleaning method and available floor/ceiling space. HELPER can then confirm whether JB-650A is the correct configuration.
