Even distribution
Inclined paddles move material through the trough and combine ingredients throughout the batch.
Products / Meat Mixers / ZKJB-650
HELPER · Product specifications

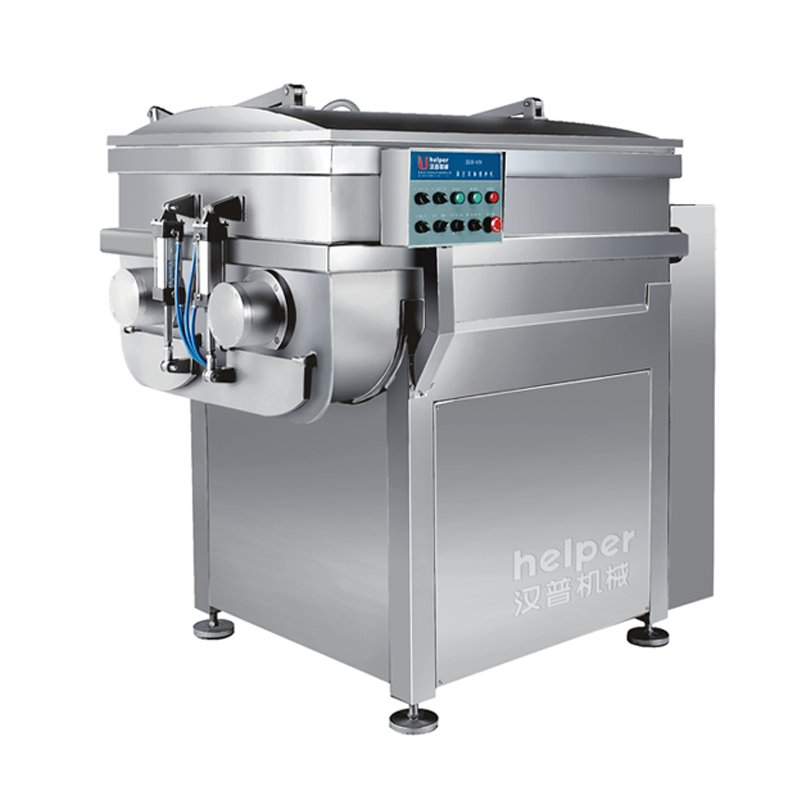

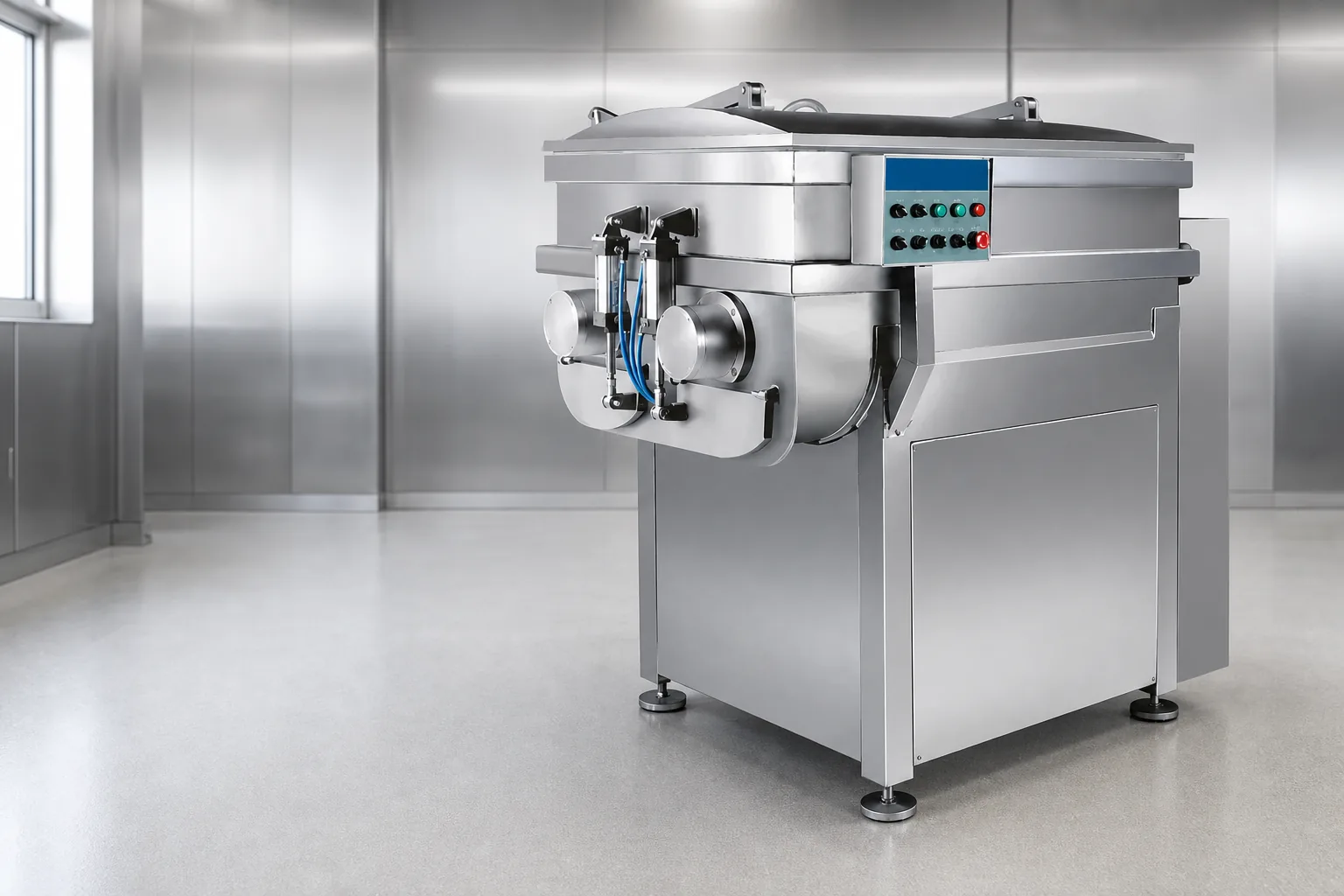

ZKJB-650 Vacuum Meat Mixer
ZKJB-650: Parallel shafts and inclined paddles turn ingredients through the trough to distribute meat, vegetables and seasonings. Stainless-steel construction and accessible product-contact surfaces support routine cleaning.
View specifications Request a quotation
Twin-shaft ingredient mixing
Controlled handling
The catalog describes pneumatic lid and discharge-door operation for the production mixing platform.
Vacuum or atmospheric
Choose the JB atmospheric machine or the ZKJB sealed vacuum machine according to the required texture and air removal.
Cooling configuration
Cooling versions have their own weights and installation dimensions. Define the coolant circuit and temperature duty when ordering.
2026 product catalog
ZKJB-650 technical data
| Model | ZKJB-650 |
|---|---|
| Process | Vacuum mixing |
| Chamber volume | 650 L |
| Mixing speed | 20 / 41 rpm |
| Power | 10.1 kW |
| Weight | 1300 kg |
| Dimensions | 1300 × 1400 × 1200 mm |
| Usable batch mass | Set by formulation and working fill level; not specified in the catalog table |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.

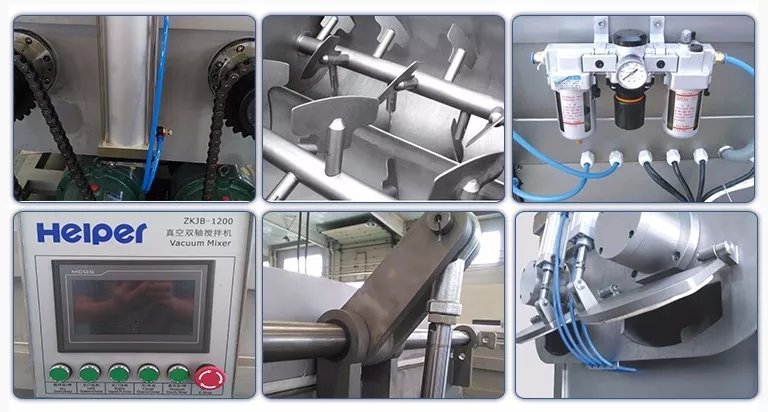

Machine and process details
Plan your ZKJB-650 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
