Three functions
The catalog combines a lifter, slicer and grinder.
Products / Meat Grinders / QPJR-250
HELPER · Product specifications

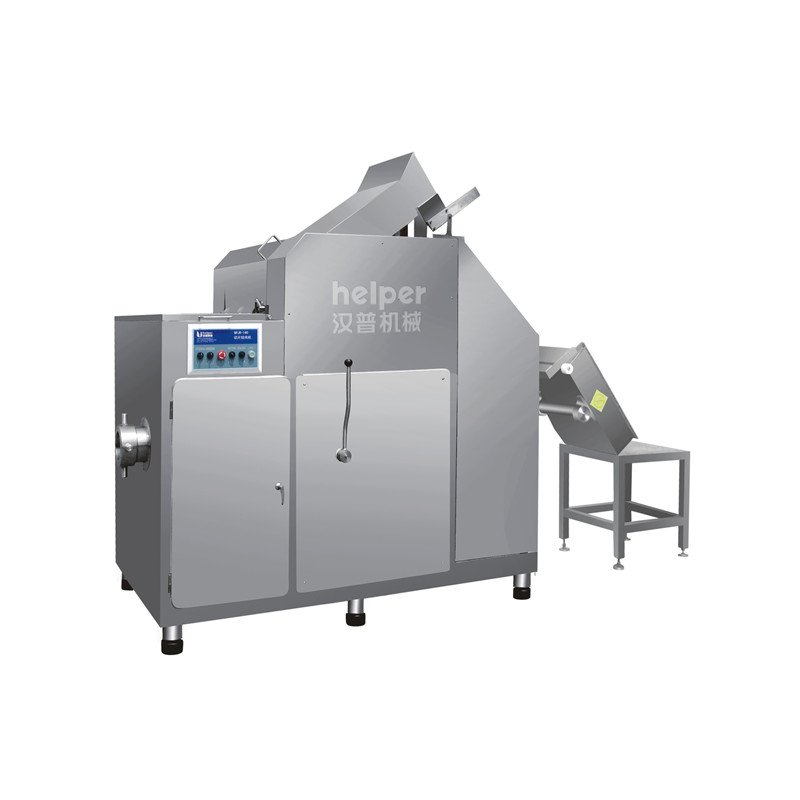

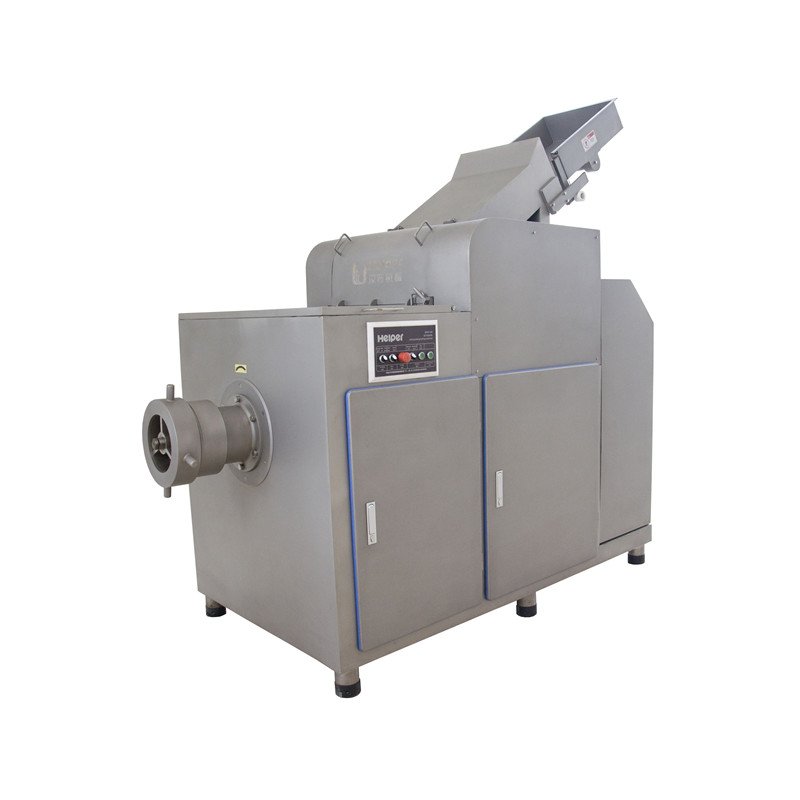

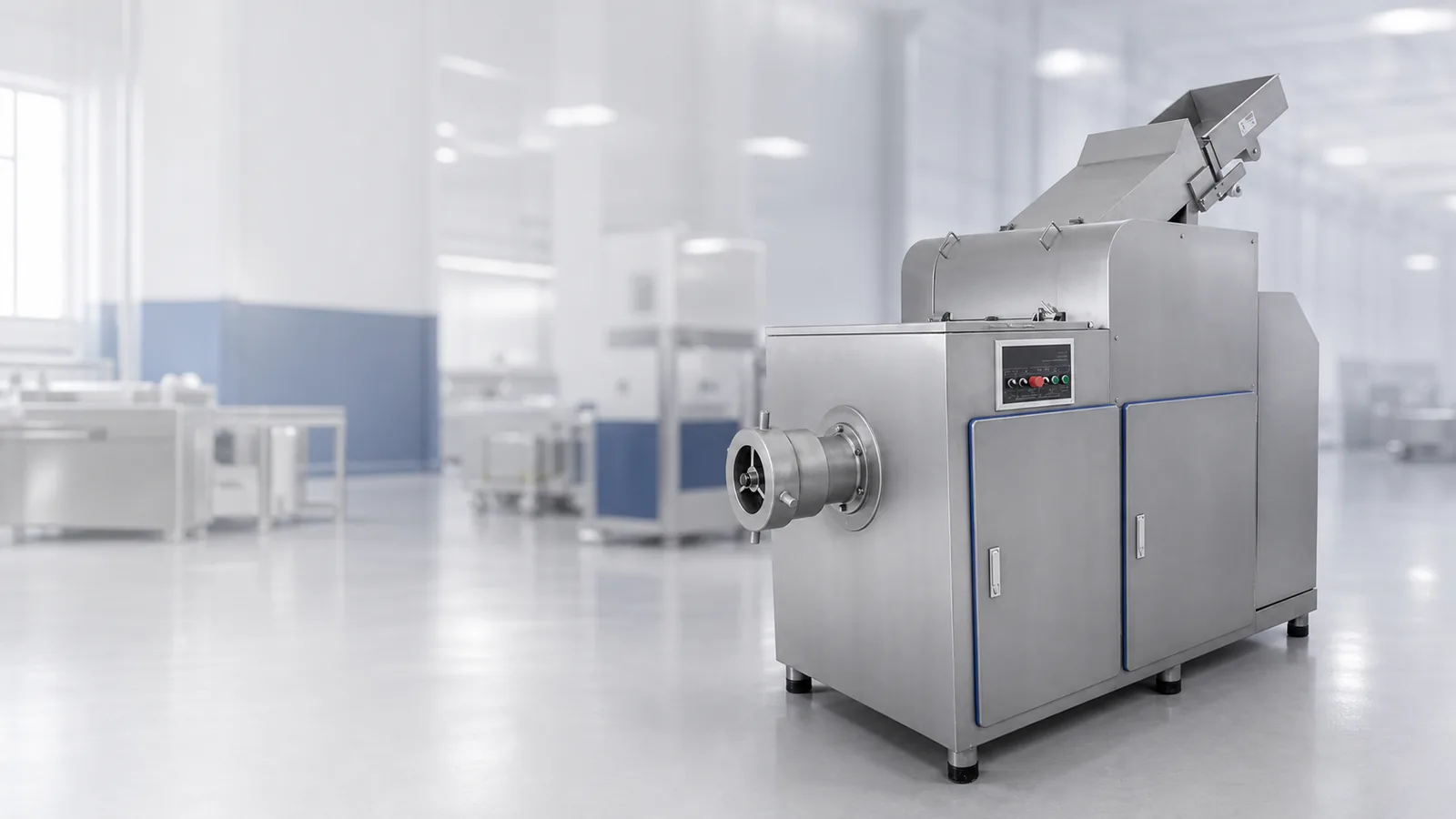

QPJR-250 Frozen Meat Flaker & Grinder
An integrated lifting, slicing and grinding machine that prepares frozen meat blocks for bowl cutting or mixing.
View specifications Request a quotation
Design and operation
PLC control
Frequency control coordinates the slicing and grinding process.
Frozen-block preparation
Prepare blocks within the listed size, weight and temperature limits.
Fresh-meat grinding
The grinder can also be used independently for fresh meat; no separate fresh capacity is specified in this catalog.
2026 product catalog
QPJR-250 technical data
| Model | QPJR-250 |
|---|---|
| Productivity | 3–4 t/h |
| Power | 46 kW |
| Maximum block size | 650 × 450 × 160 mm |
| Maximum block weight | 40 kg |
| Material temperature | −10°C to 0°C, as stated in the catalog description |
| Weight | 3000 kg |
| Dimensions | 3830 × 1325 × 2700 mm |
| Slicing knife height | 40 mm |
| Sliced meat thickness | 20 mm |
The table prints its temperature inequality in reverse order. This page uses the clear −10°C to 0°C range in the accompanying Chinese and English description.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your QPJR-250 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
