Frozen input
The catalog specifies frozen blocks within the listed size and temperature limits.
Products / Meat Grinders / QK/P-600C
HELPER · Product specifications

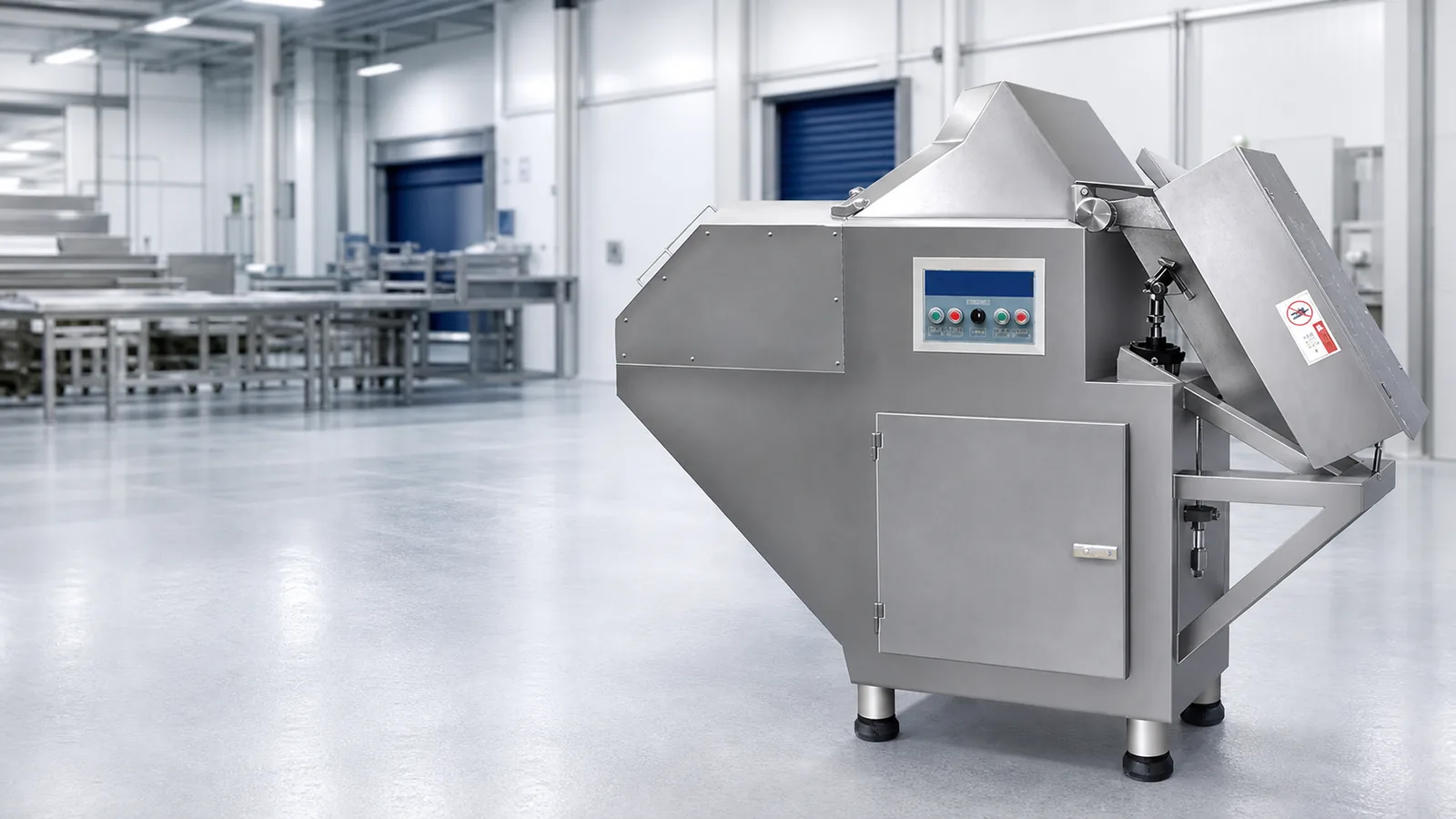

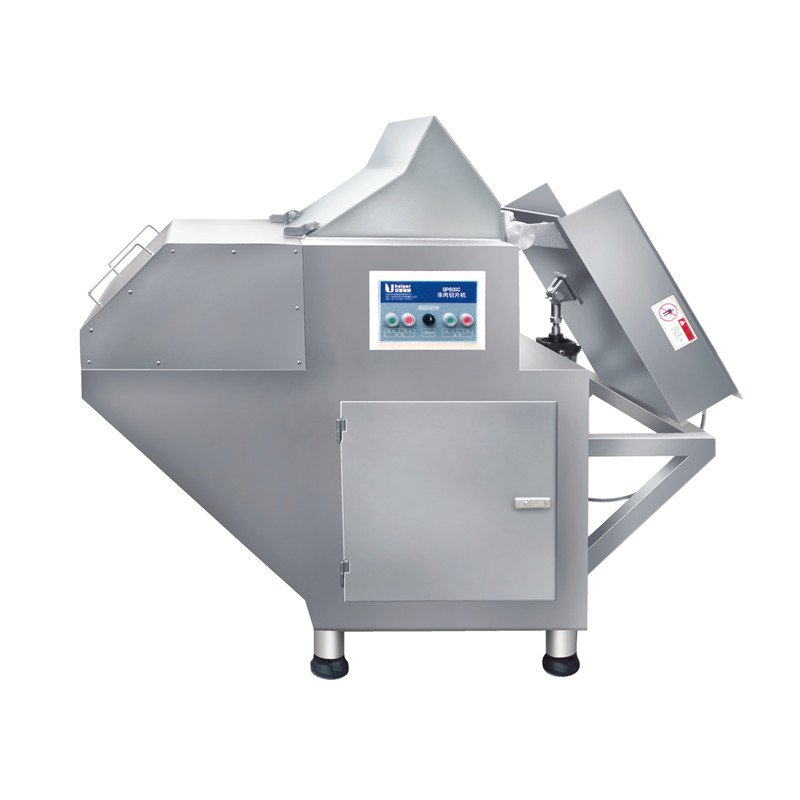

QK/P-600C Frozen Meat Flaker
Slice frozen meat blocks into smaller pieces for downstream food processing without a separate thawing step.
View specifications Request a quotation
Design and operation
Four slice sizes
Choose the appropriate cutting setup from the listed thickness options.
Separated cylinder
The cylinder is positioned away from the meat path.
Manual-feed provision
The catalog describes manual loading when compressed air is unavailable; follow the supplied operating instructions.
2026 product catalog
QK/P-600C technical data
| Model | QK/P-600C |
|---|---|
| Track width / height | 540 / 200 mm |
| Power | 7.5 kW |
| Cylinder stroke | 420 mm |
| Operating pressure | 4–5 kg/cm² |
| Weight | 600 kg |
| Dimensions | 1750 × 1000 × 1600 mm |
| Block weight | 5–40 kg |
| Maximum block dimensions | 650 × 500 × 180 mm |
| Slice thickness options | 5 / 10 / 20 / 30 mm |
| Productivity | 3,000–4,000 kg/h |
| Material temperature | −18°C to 0°C |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your QK/P-600C configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
Contact HELPER
