Direct frozen-meat processing
The JR-D family is described for frozen meat; confirm the block size and temperature for the selected cutting set.
Products / Meat Grinders / JR-D120
HELPER · Product specifications

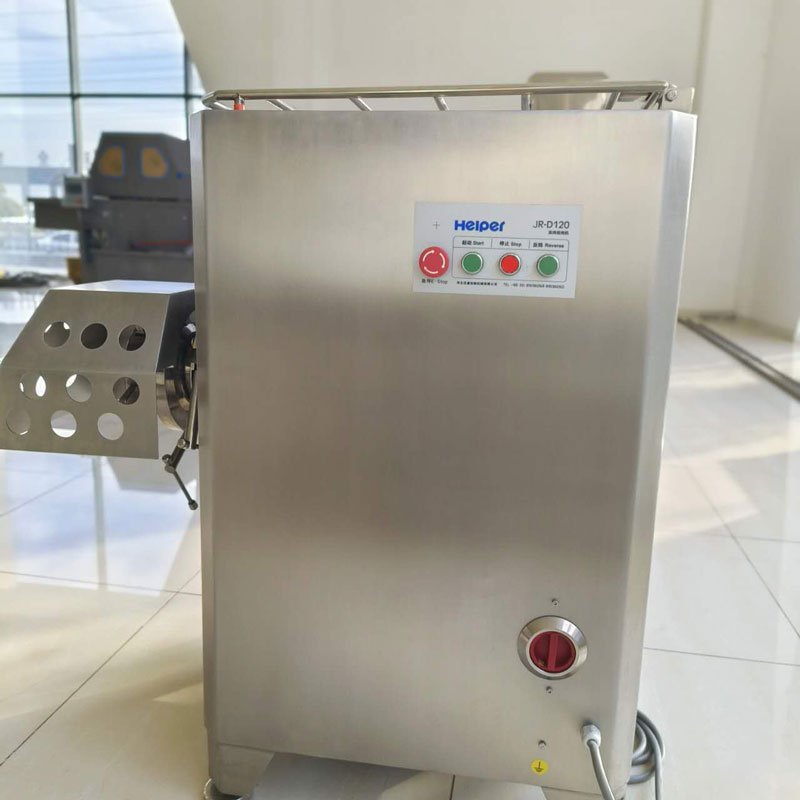

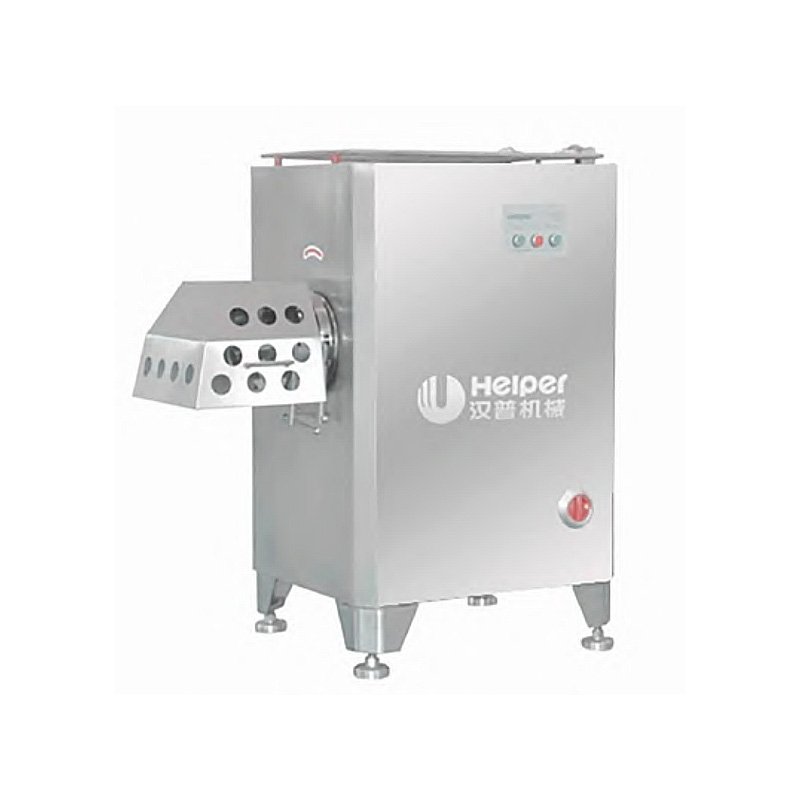

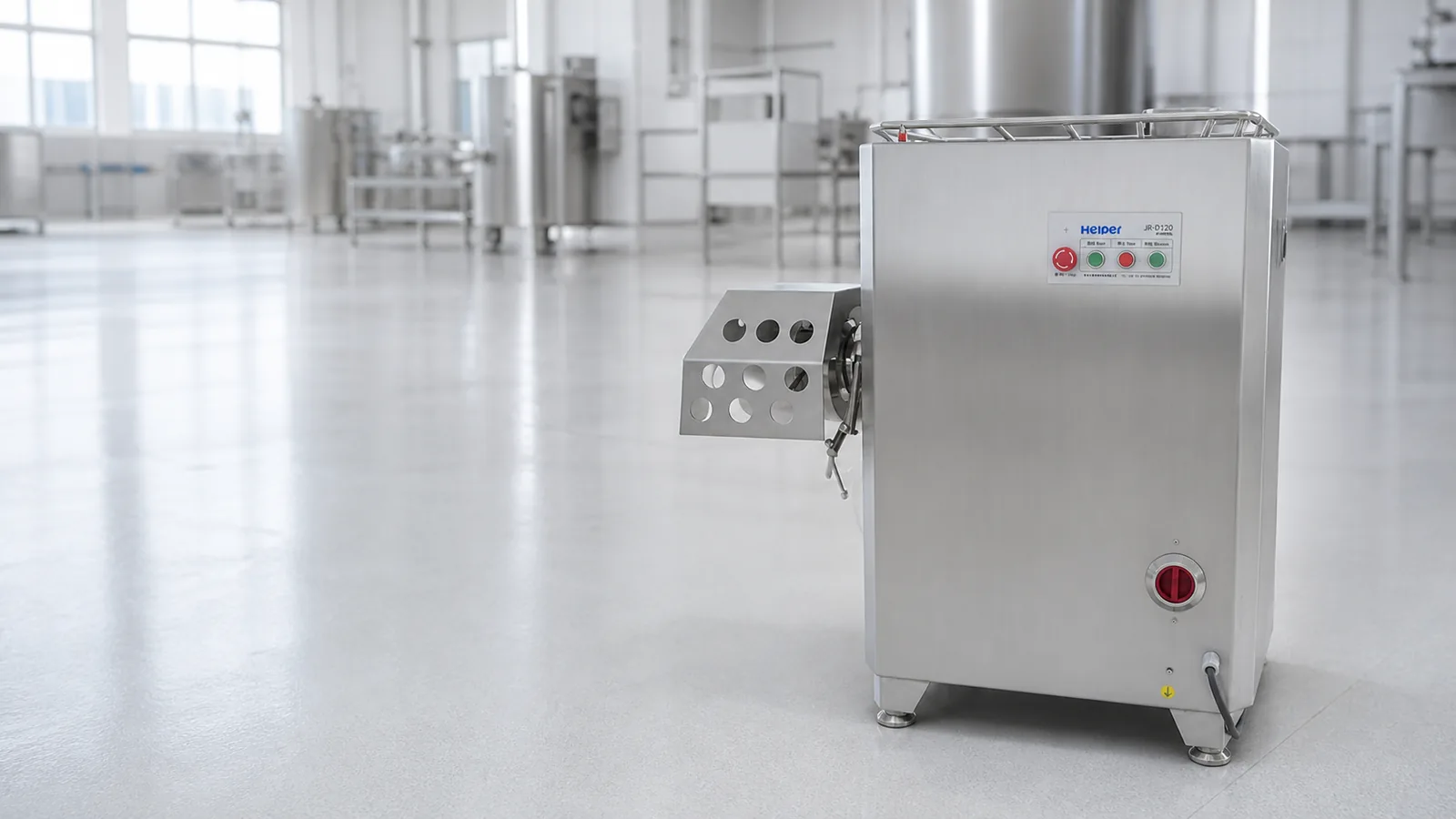

JR-D120 Frozen Meat Grinder

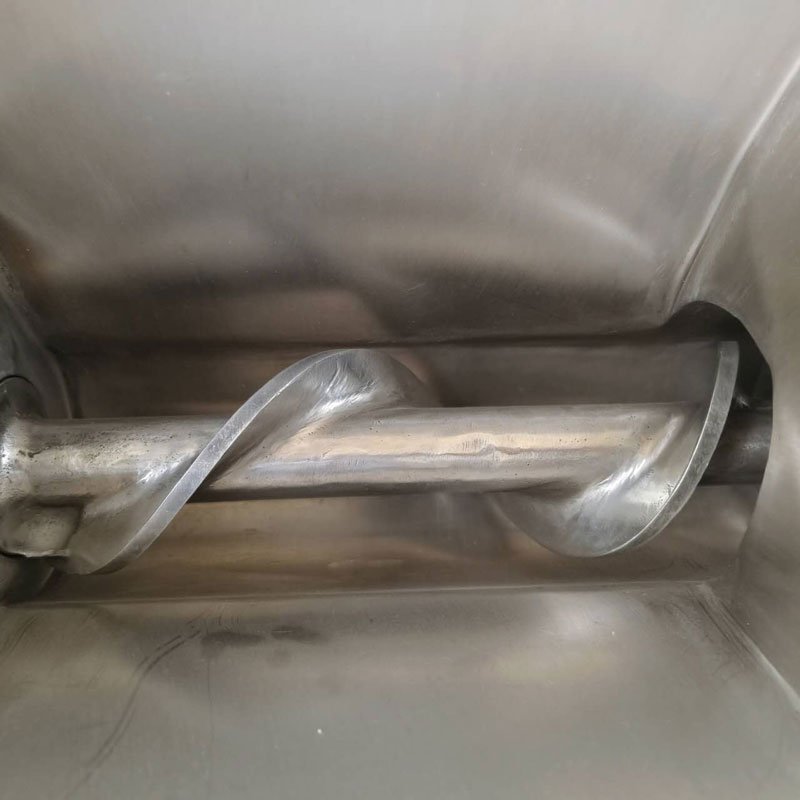

JR-D120: The screw feeds meat into the cutting set to produce particles for downstream mixing or bowl cutting. The catalog specifies stainless-steel construction and a large feed opening for continuous material transfer.
View specifications Request a quotation
Frozen-meat preparation
Particle preparation
Select the plate and knife arrangement around the downstream texture and throughput target.

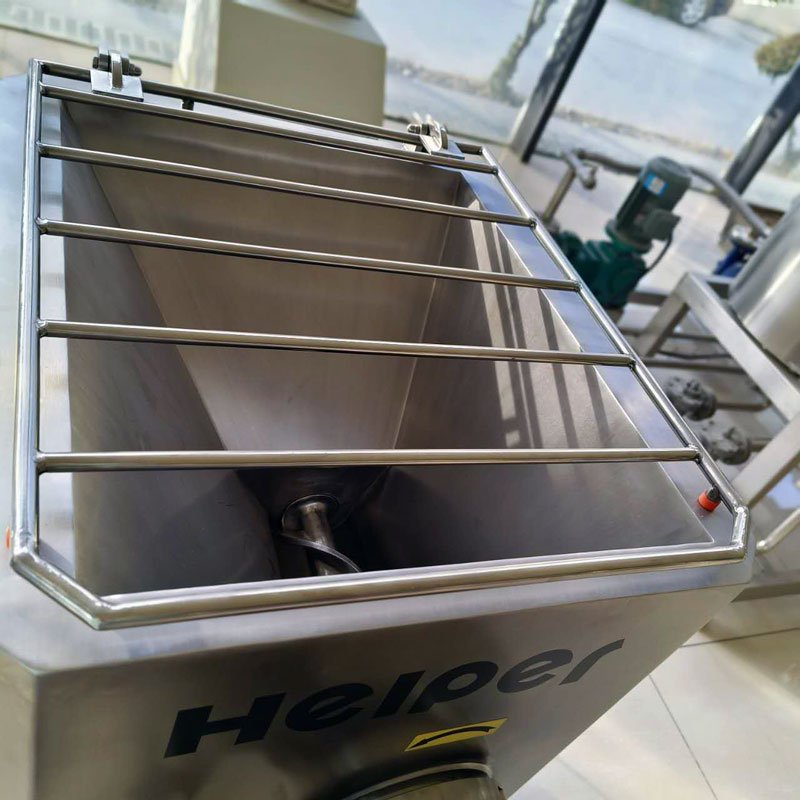

Integrated hopper and feed path
The catalog joins the hopper and material path to support smooth feeding.
Cleaning and changeover
Accessible stainless-steel product-contact parts support cleaning and cutting-set maintenance.
2026 product catalog
JR-D120 technical data
| Model | JR-D120 |
|---|---|
| Productivity | 1–2 t/h |
| Power | 7.5 kW |
| Electrical supply | 380 V / 50 Hz |
| Rotation speed | 240 rpm |
| Weight | 300 kg |
| Dimensions | Requires confirmation |
JR-D120 dimensions differ between the Chinese (1085 × 620 × 1205 mm) and English (950 × 550 × 1050 mm) catalog tables.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your JR-D120 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
