Frozen-block preparation
The machine is designed to cut blocks without a separate thawing step.
Products / Meat Grinders / QK-2000
HELPER · Product specifications

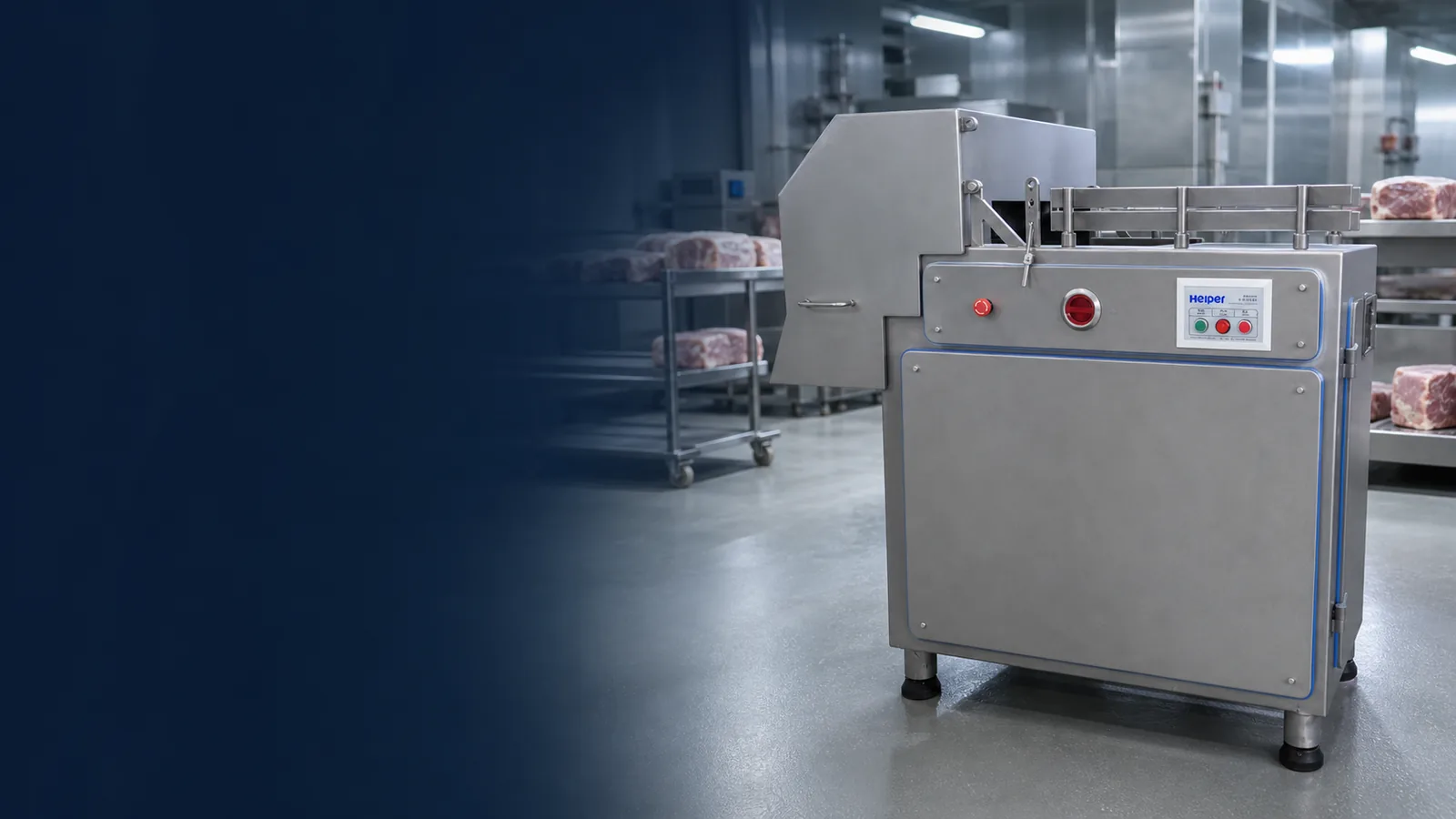

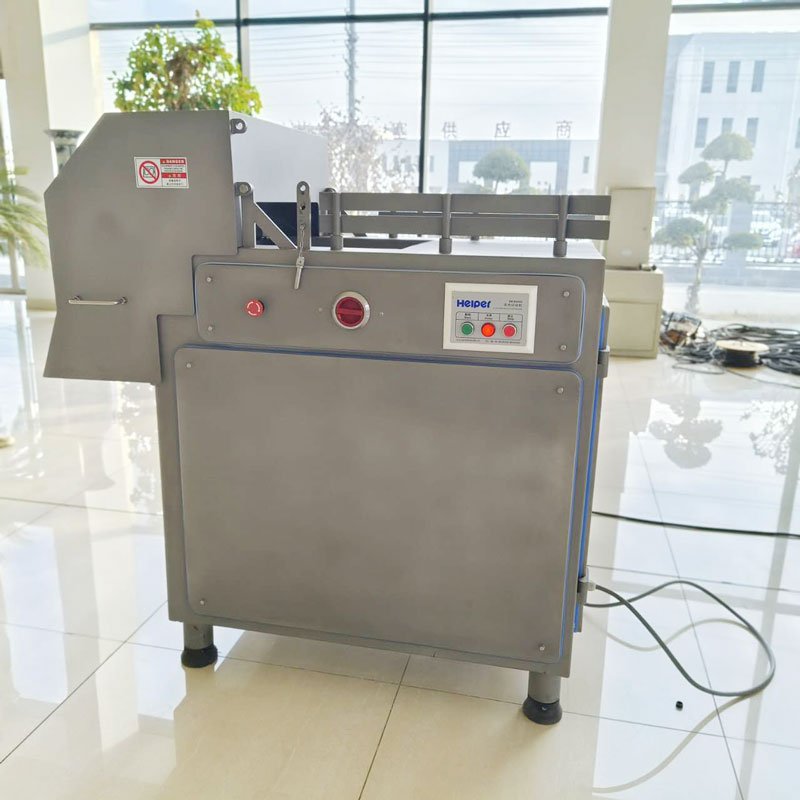

QK-2000 Frozen Meat Guillotine
Cut frozen meat blocks directly into smaller sections before further processing, with a stainless-steel frame and alloy cutting blade.
View specifications Request a quotation
Design and operation
Reciprocating blade
The catalog specifies blade motion and a horizontal cutter stroke.
Stainless food-contact parts
The external frame and meat-contact surfaces use stainless steel.
Emergency stop
The catalog includes an emergency-stop control.
2026 product catalog
QK-2000 technical data
| Model | QK-2000 |
|---|---|
| Blade reciprocation | 41 cycles/min |
| Material-track width | 460 / 500 mm |
| Horizontal cutter stroke | 200 mm |
| Power | 5.5 kW |
| Productivity | 5 t/h |
| Weight | 600 kg |
| Dimensions | Requires confirmation; catalog tables disagree |
Chinese table dimensions: 1400 × 730 × 1420 mm. English table: 1255 × 720 × 1420 mm. Confirm the final installation drawing.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your QK-2000 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
Contact HELPER
