Direct frozen-meat processing
The JR-D family is described for frozen meat; confirm the block size and temperature for the selected cutting set.
Products / Meat Grinders / JR-D140
HELPER · Product specifications

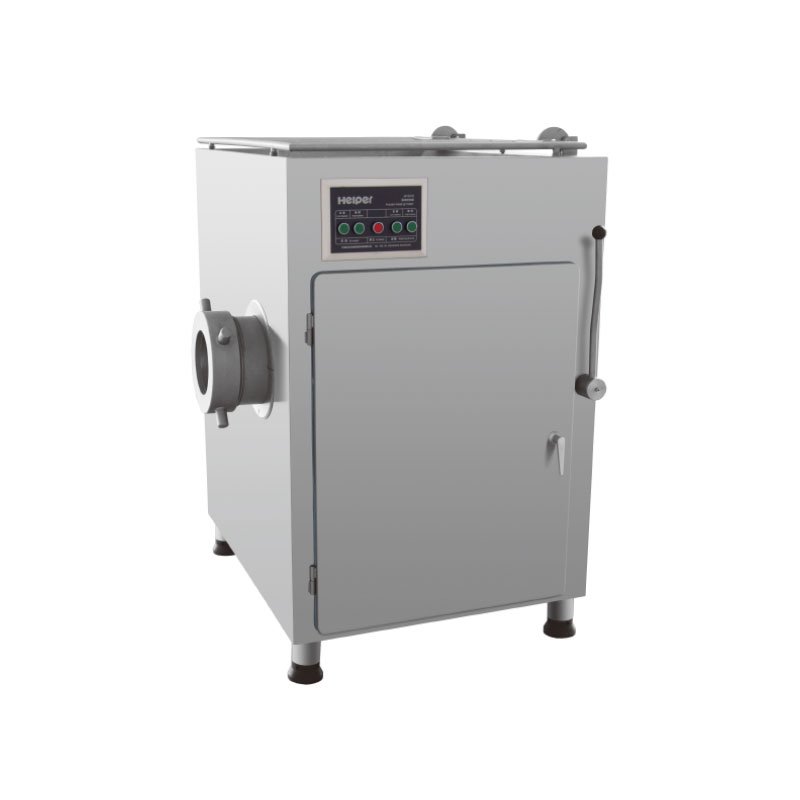

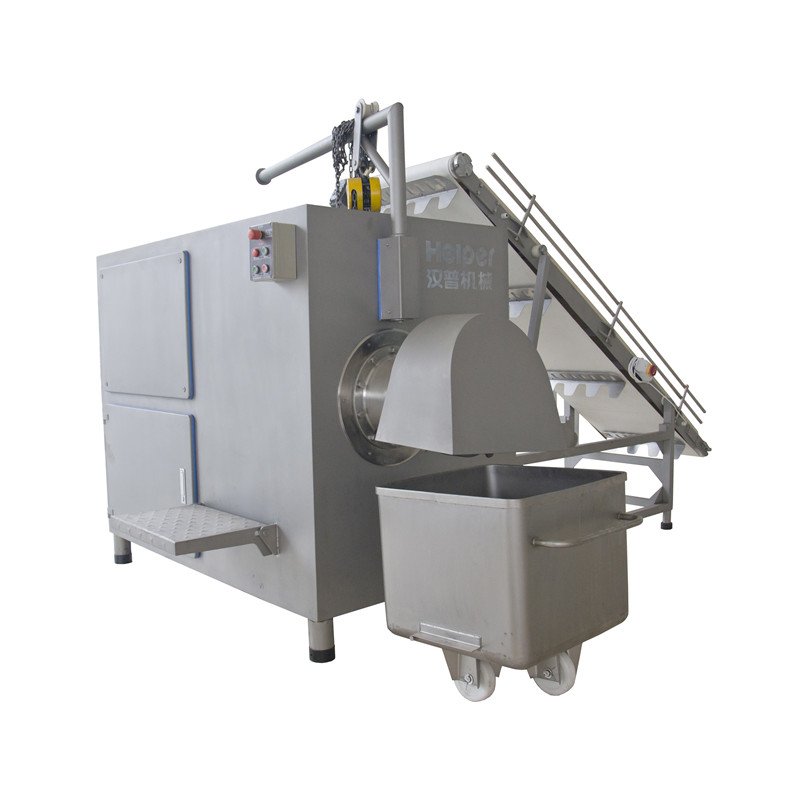

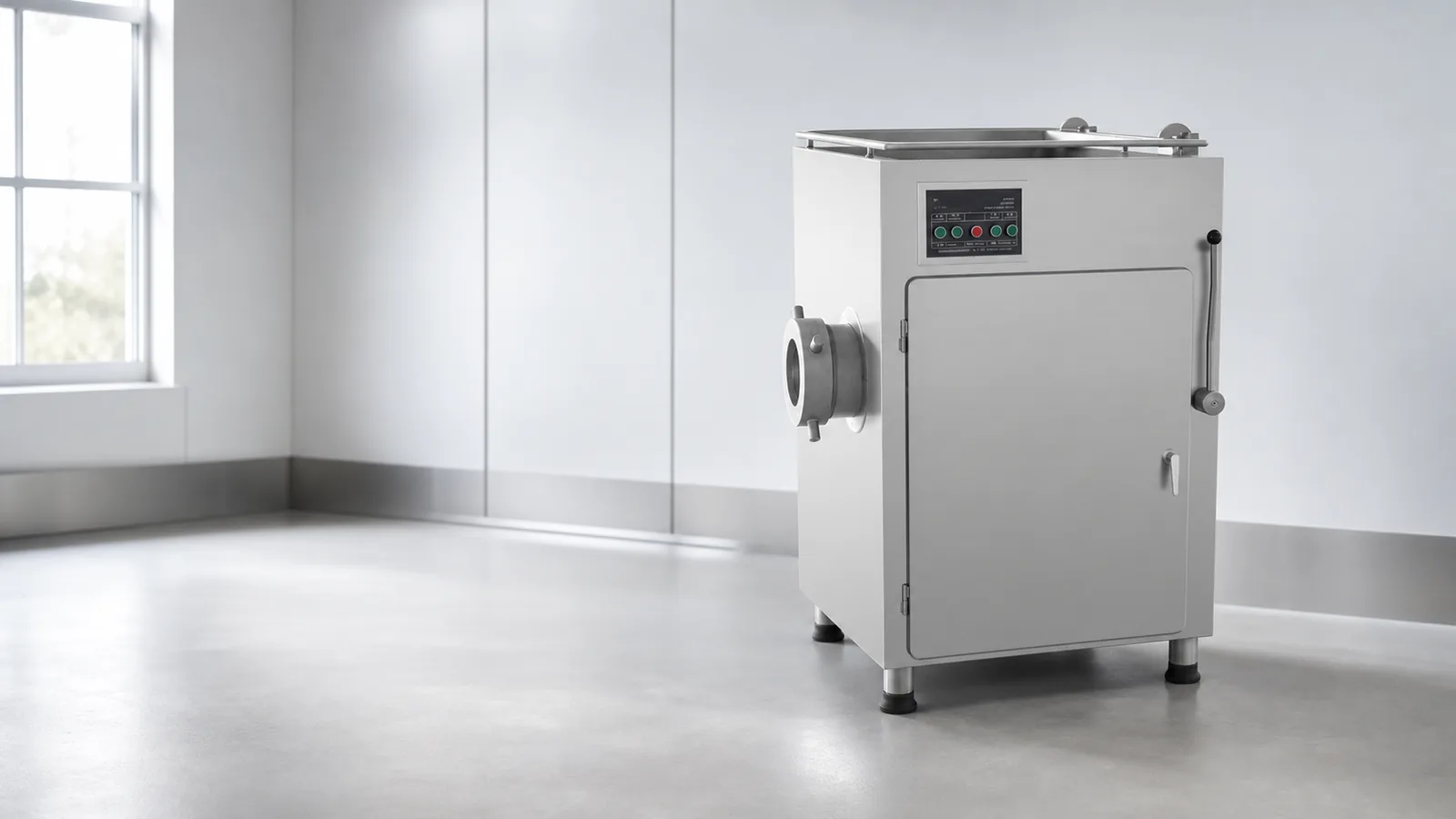

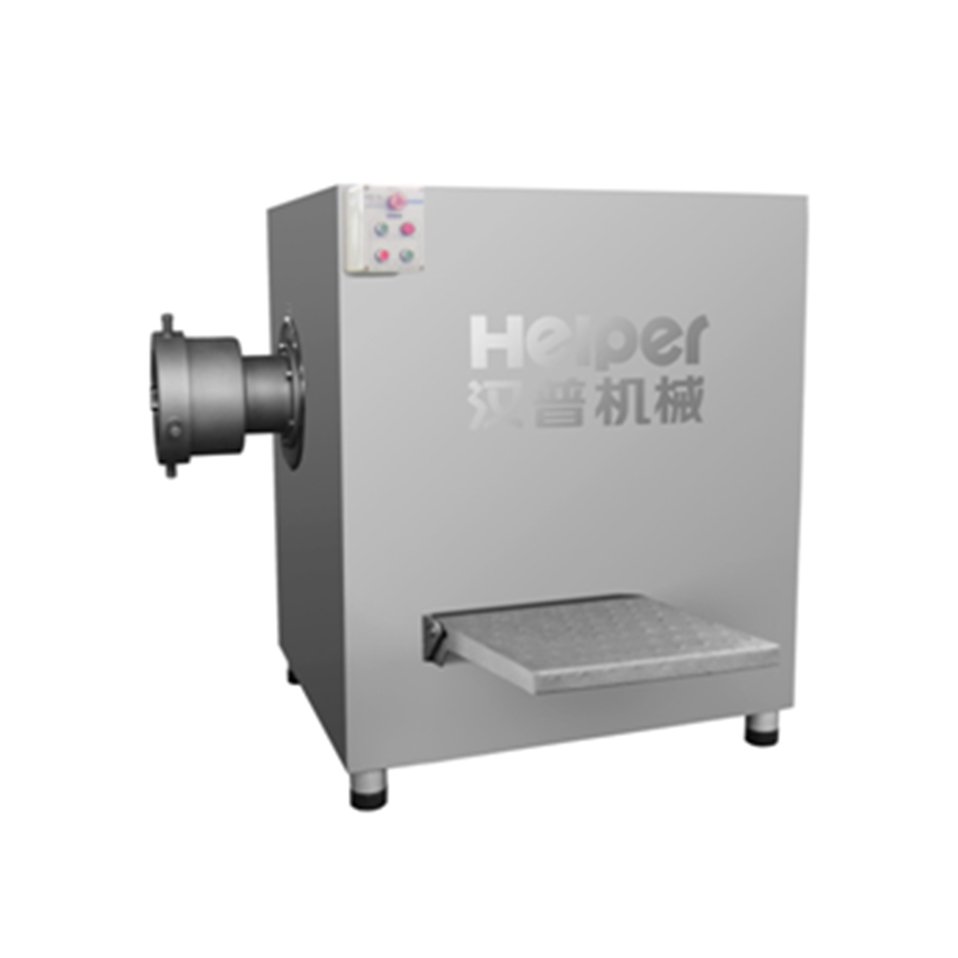

JR-D140 Frozen Meat Grinder
JR-D140: The screw feeds meat into the cutting set to produce particles for downstream mixing or bowl cutting. The catalog specifies stainless-steel construction and a large feed opening for continuous material transfer.
View specifications Request a quotation
Frozen-meat preparation
Particle preparation
Select the plate and knife arrangement around the downstream texture and throughput target.
Integrated hopper and feed path
The catalog joins the hopper and material path to support smooth feeding.
Cleaning and changeover
Accessible stainless-steel product-contact parts support cleaning and cutting-set maintenance.
2026 product catalog
JR-D140 technical data
| Model | JR-D140 |
|---|---|
| Productivity | 1.5–3 t/h |
| Power | 15.8 kW |
| Electrical supply | 380 V / 50 Hz |
| Rotation speed | 170 / 260 rpm |
| Weight | Requires confirmation |
| Dimensions | Requires confirmation |
JR-D140 Chinese table: 1140 kg and 1205 × 1305 × 1465 mm. English table: 1000 kg and 1200 × 1050 × 1440 mm. Confirm weight and drawing.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your JR-D140 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
