Two working widths
Choose the catalog 800 or 1200 mm configuration around product width.
Products / Meat Cutters / 800 / 1200 mm rotary cutter
HELPER · Product specifications

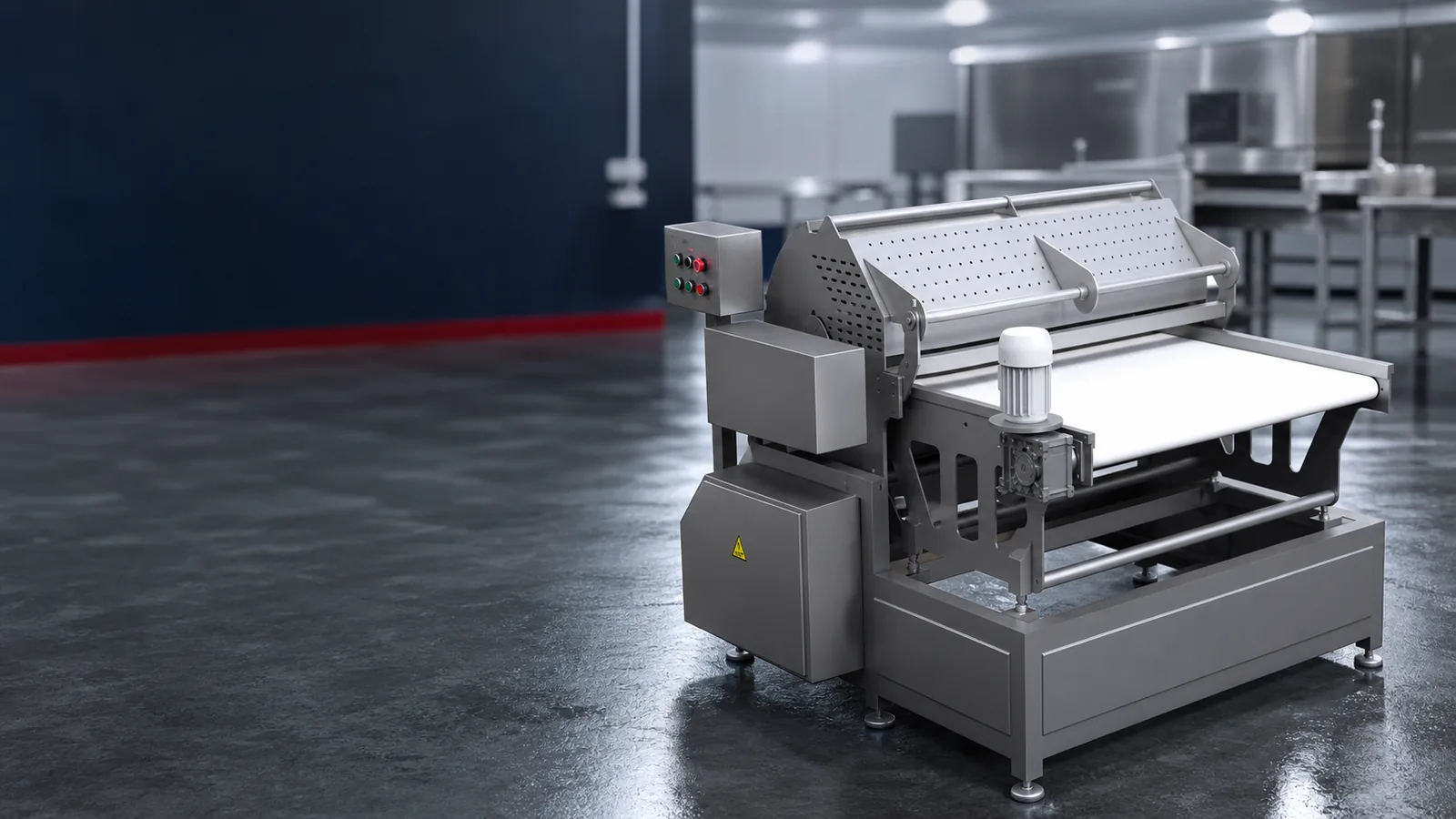

800 & 1200 mm Rotary Cutting Machines
Rotary cutting platforms with conveyor feed, adjustable knife angle and two working widths for product chunk preparation.
View specifications Request a quotation
Design and operation
Adjustable cut length
The catalog lists 5–60 mm material length.
Adjustable knife angle
Set the cutting angle within the listed range.
Separate motor functions
The catalog separately identifies the conveyor and cutting motors.
2026 product catalog
800 / 1200 mm rotary cutter technical data
| Model | 800 / 1200 mm rotary cutter |
|---|---|
| Total power | 2.75 kW |
| Conveyor motor | 0.55 kW |
| Cutting motor | 2.2 kW |
| Cut length | 5–60 mm |
| Knife angle | 0–40° adjustable |
| 800 mm version width | Up to 800 mm |
| 800 mm version dimensions | 1560 × 1630 × 1210 mm |
| 1200 mm version width | 1200 mm |
| 1200 mm version dimensions | 1650 × 1900 × 1300 mm |
The PDF identifies these configurations by working width and does not state a QGJ model code. Confirm the sales model in the quotation.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your 800 / 1200 mm rotary cutter configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
