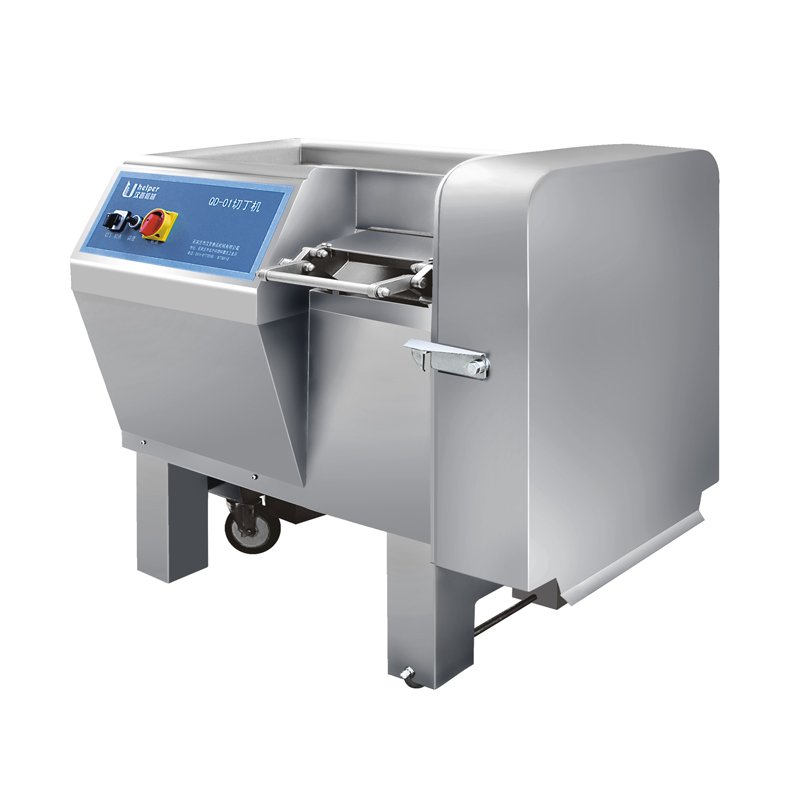

QD-01 product preparation
The catalog describes softened meat around −5°C and firm vegetables such as carrot and potato.
Products / Meat Cutters / QD-01 / QD-03
HELPER · Product specifications

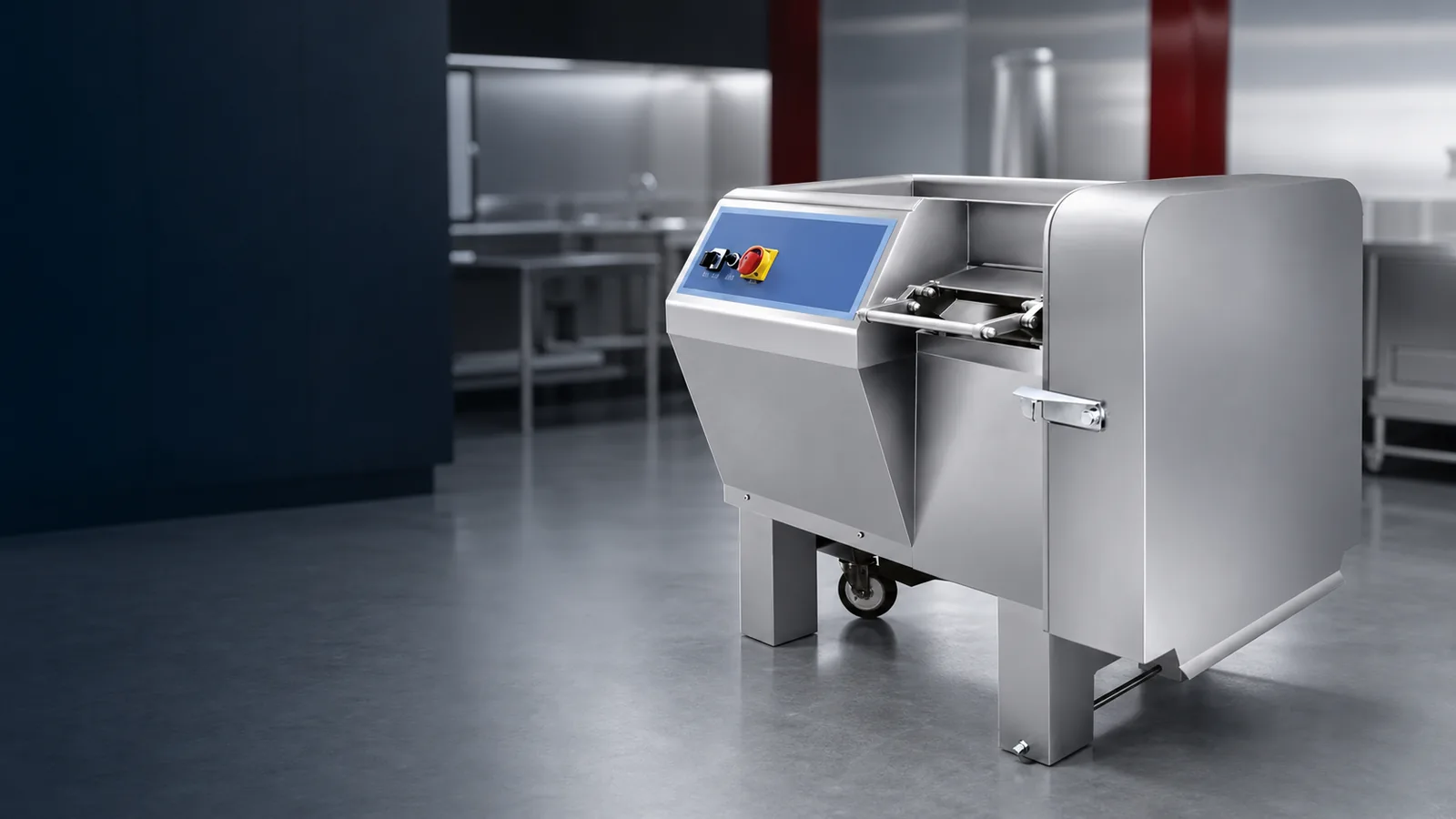

QD-01 & QD-03 Meat Dicers
Chamber dicers for cubes, strips and other cuts. QD-01 covers smaller meat and firm-vegetable work; QD-03 provides a larger chamber and wider tooling selection.
View specifications Request a quotation
Design and operation
QD-03 cutting formats
Tooling supports cubes, strips, shreds and slices.
Alloy-steel knives
The catalog specifies sharp alloy-steel blades.
Stainless enclosure
The body and frame enclosure use stainless steel for food processing.
2026 product catalog
QD-01 / QD-03 technical data
| Model | QD-01 / QD-03 |
|---|---|
| QD-01 channel | 84 × 84 × 350 mm |
| QD-01 power / capacity | 3 kW; 500–600 kg/h |
| QD-01 weight / dimensions | 500 kg; 1480 × 800 × 1000 mm |
| QD-03 channel | 120 × 120 × 550 mm |
| QD-03 power / capacity | 3.7 kW; 700–900 kg/h |
| QD-03 weight / dimensions | 700 kg; 1950 × 1000 × 1120 mm |
| QD-03 discharge conveyor | Optional |
| QD-01 catalog cutting sizes | 5 mm and 10 mm; other sizes by request |
| QD-03 catalog grid sizes | 4, 5, 6, 7, 8, 10, 12, 14, 16, 20, 24, 30, 40, 60, 120 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your QD-01 / QD-03 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
