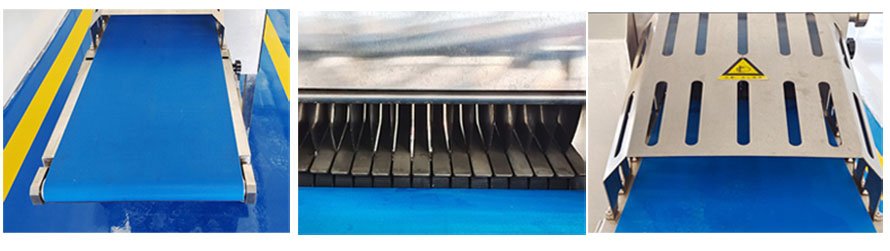

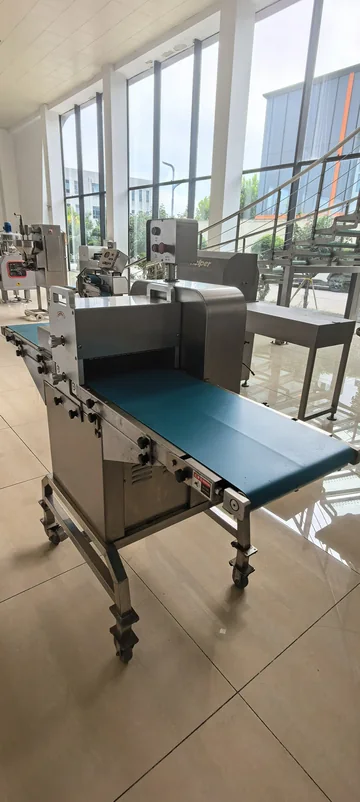

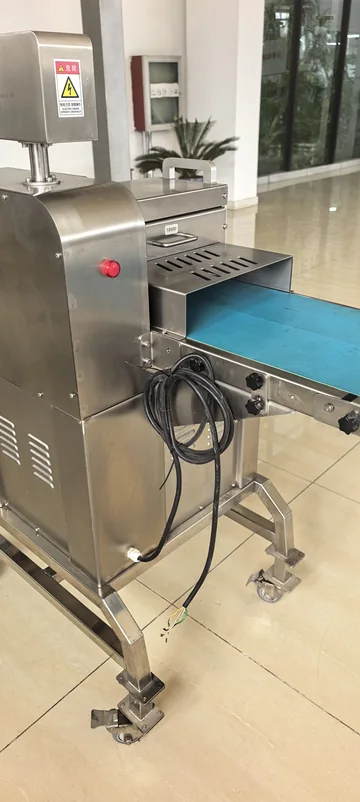

Conveyor handling
Belts feed and discharge the product for orderly transfer.
Products / Meat Cutters / LC-340 / LC-500
HELPER · Product specifications

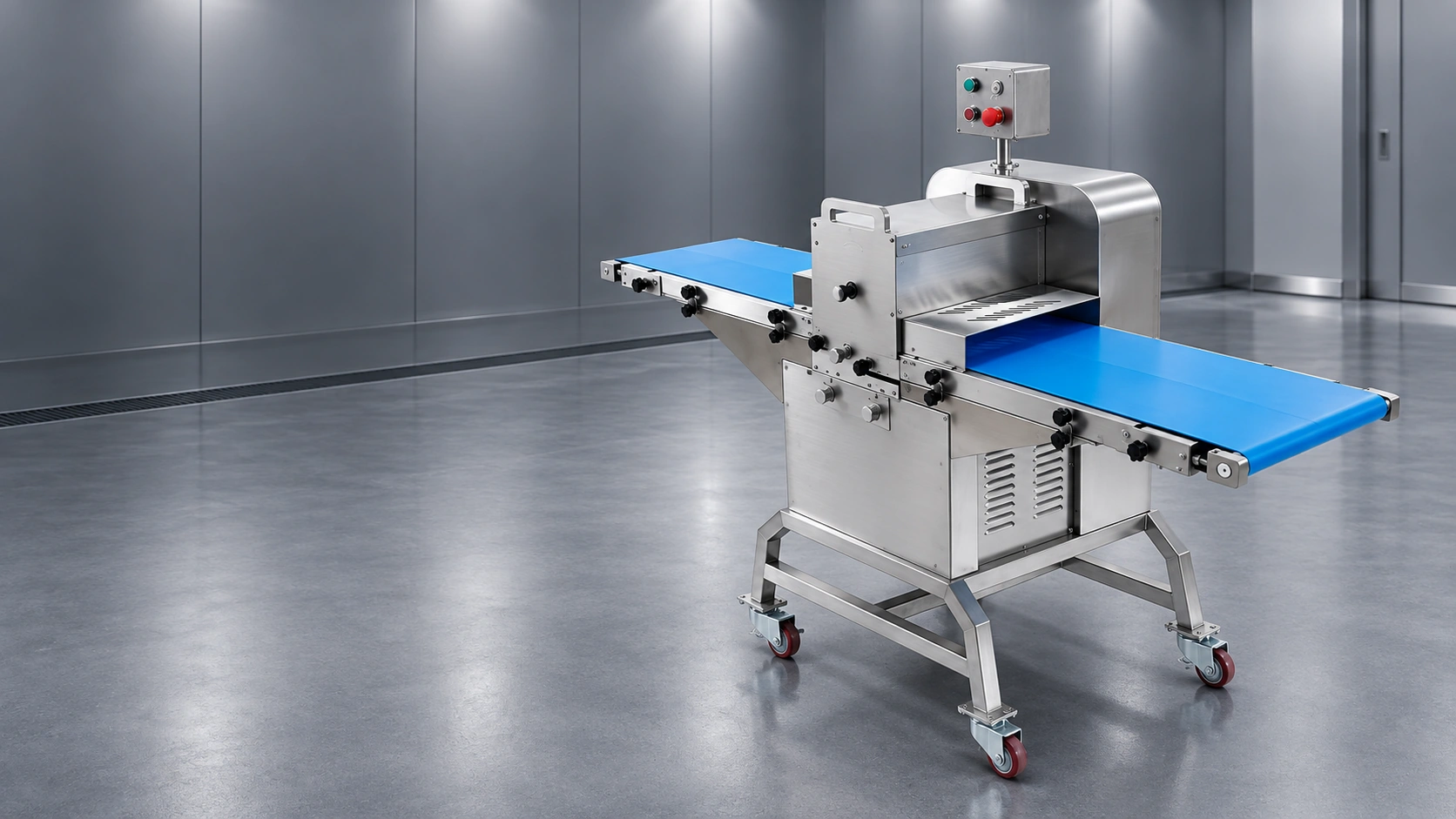

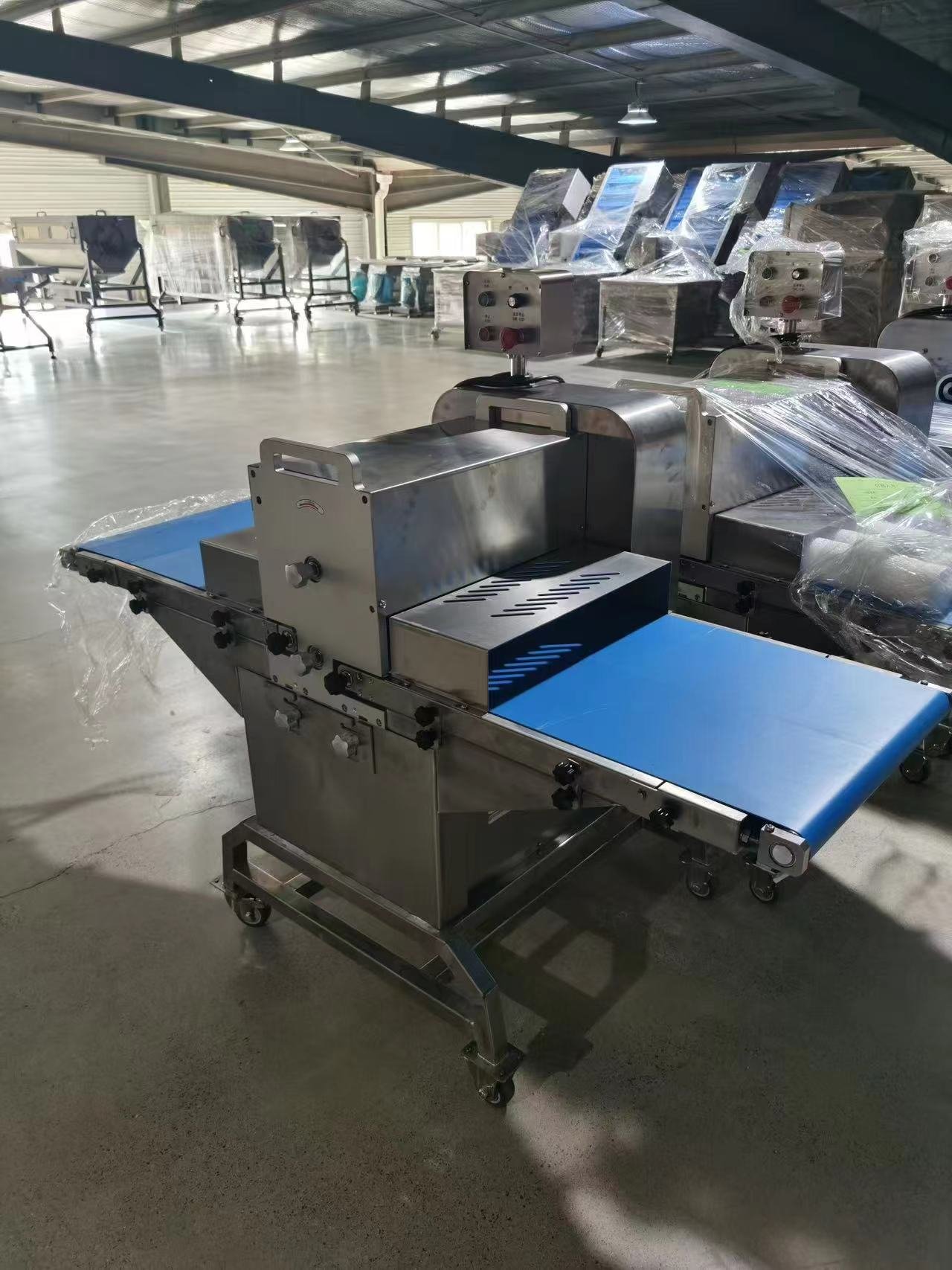

LC-340 & LC-500 Meat Cutters
Conveyor-fed meat cutting with quick-change knife groups for strips and chunks.
View specifications Request a quotation
Design and operation

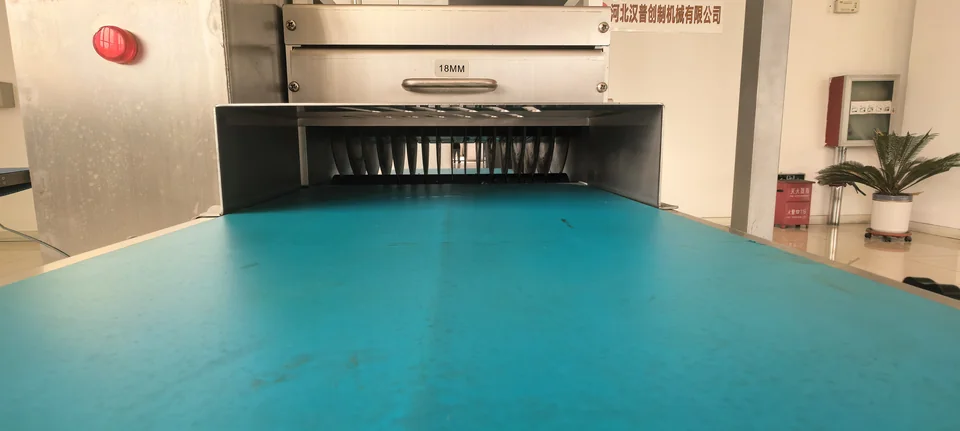

Quick-change knives
The catalog describes a removable knife-group design.

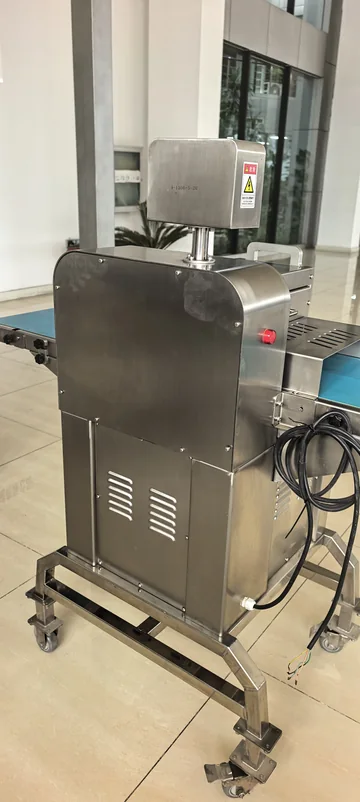

Stainless body
The machine body uses stainless steel; the catalog lists 3 mm plate.
Product-specific tooling
Bone-in poultry cutting requires the corresponding knife group specified in the catalog.
2026 product catalog
LC-340 / LC-500 technical data
| Model | LC-340 / LC-500 |
|---|---|
| LC-340 capacity | 500–800 kg/h |
| LC-340 cutting size | 3–40 mm; custom sizes available |
| LC-340 power / weight | 1.5 kW; 159 kg |
| LC-340 dimensions | 1700 × 640 × 1430 mm |
| LC-500 capacity | 500–2,000 kg/h |
| LC-500 cutting size | 4–40 mm; custom sizes available |
| LC-500 power / weight | 2.2 kW; 254 kg |
| LC-500 dimensions | 1700 × 760 × 1430 mm |
| Electrical supply | 380 V / 50 Hz |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference
Use this process demonstration together with the model-specific technical schedule above.
Plan your LC-340 / LC-500 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
