ZKZB-330: The rotating bowl carries meat, vegetables and seasonings through high-speed knives. Coordinating knife speed, bowl circulation and processing time produces the required particle size and mixture.
Select the listed knife and bowl settings for ingredient distribution and the required cutting result.
Close cutting clearance
The catalog describes a knife-tip clearance below 2 mm; setup and inspection must follow the delivered machine instructions.
Sealed knife shaft
Two shaft seals protect the bearings and help keep lubricant away from the product zone.
Cleaning access
Stainless construction, a sealed bowl cover and replaceable seals support cleaning between recipes.
2026 product catalog
ZKZB-330 technical data
Model
ZKZB-330
Bowl volume
330 L
Batch productivity
200–240 kg/batch
Power
102 kW
Knives
6
Knife speed
200 / 1200 / 2400 / 3700 rpm
Bowl speed
Stepless control
Unloader
Stepless control
Weight
6000 kg
Dimensions
2920 × 2650 × 1850 mm
Process
Vacuum
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details

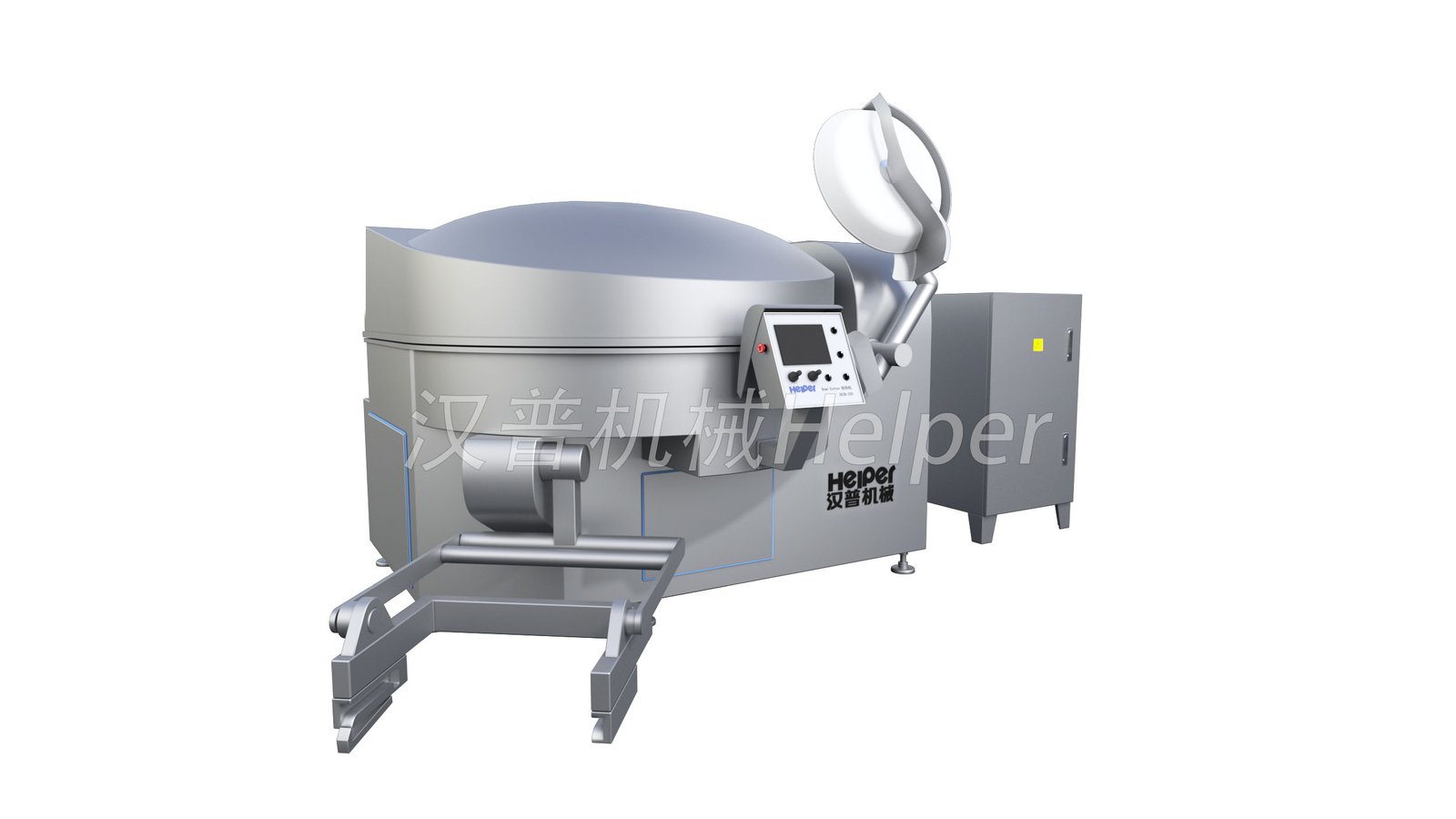

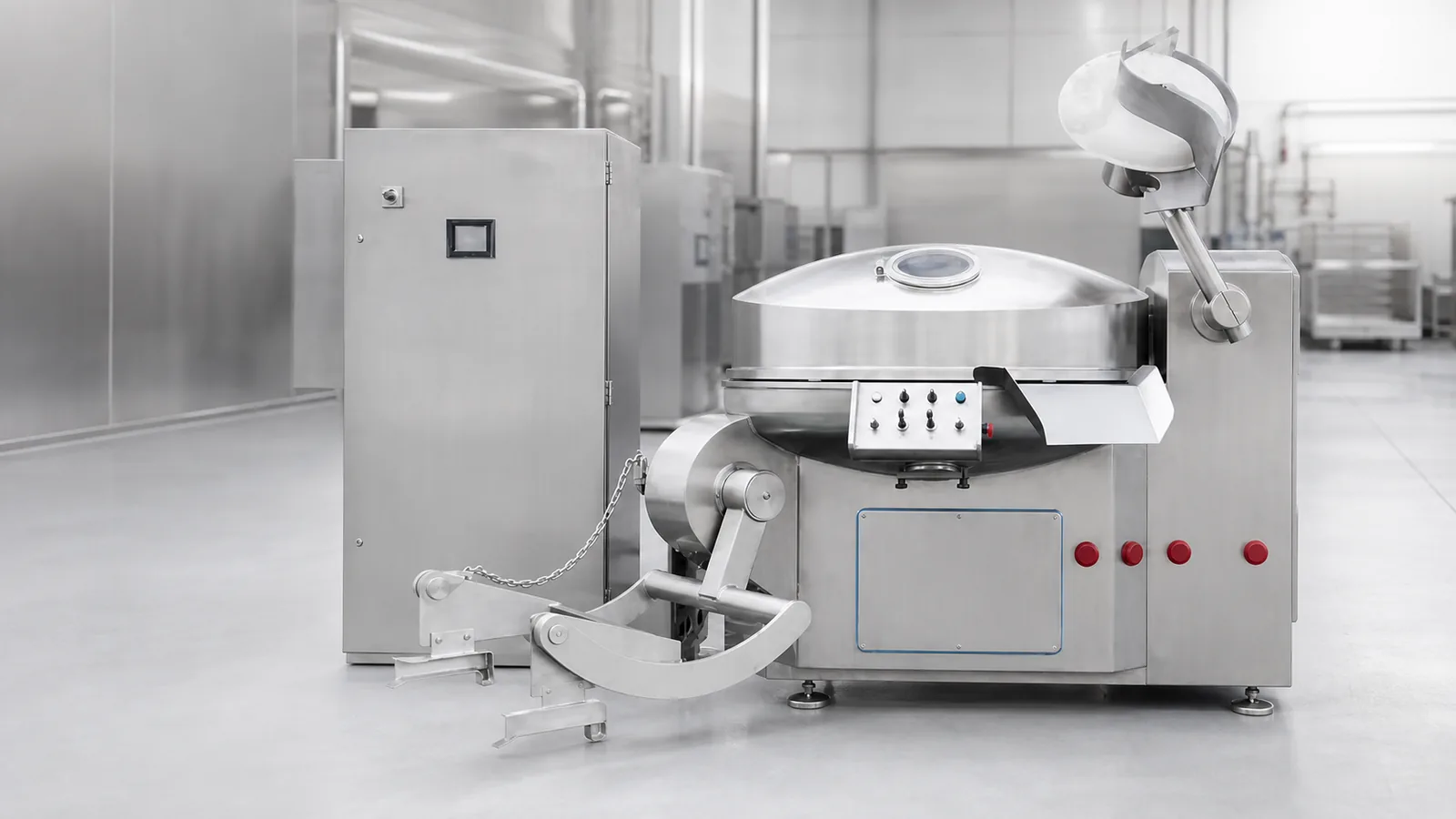

Official view of the ZKZB-330 vacuum bowl chopping machineOfficial alternate view of the ZKZB-330 vacuum bowl cutter
Inside the HELPER workshop
ZKZB-330 production workshop photos
Actual workshop photographs showing the machine from multiple angles, its operator controls and service access. Select any photograph for a larger view.
Side view and auxiliary cabinet in the workshopRear view and service accessFront three-quarter view with lifting frame and unloading armZKZB-330 operator control panelFront view of the vacuum bowl cutterOpposite side view and lifting frame
HELPER workshop video
Machine 360° view
Walk around the HELPER ZKZB-330 vacuum bowl cutter to see the enclosed bowl, operator controls, lifting frame, unloading arm and service access.
A stationary machine tour with English narration and captions. Watch on YouTube
Plan your ZKZB-330 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
