Products / Bowl Cutters / ZKB-200
HELPER · Product specifications

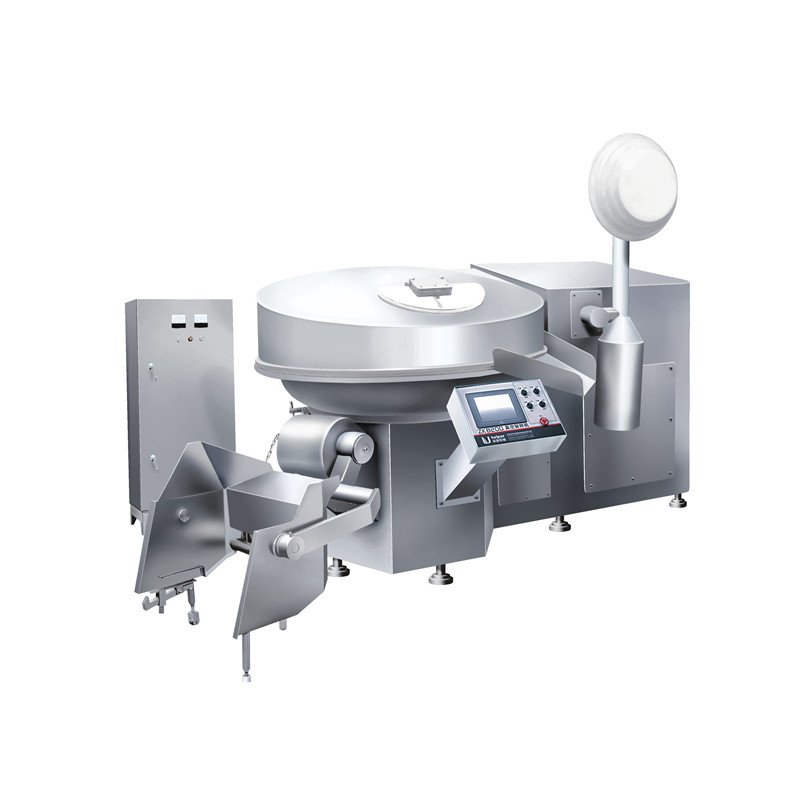

ZKB-200 Vacuum Bowl Cutter
ZKB-200: The rotating bowl carries meat, vegetables and seasonings through high-speed knives. Coordinating knife speed, bowl circulation and processing time produces the required particle size and mixture.
View specifications Request a quotation
Cutting, mixing and emulsification
Close cutting clearance
The catalog describes a knife-tip clearance below 2 mm; setup and inspection must follow the delivered machine instructions.

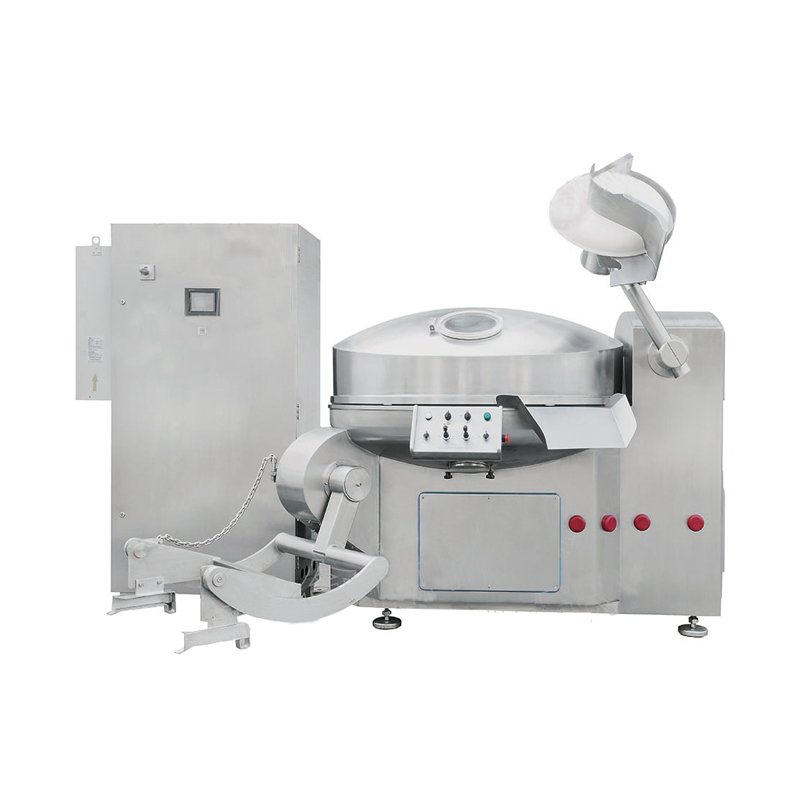

Sealed knife shaft
Two shaft seals protect the bearings and help keep lubricant away from the product zone.
Cleaning access
Stainless construction, a sealed bowl cover and replaceable seals support cleaning between recipes.
2026 product catalog
ZKB-200 technical data
| Model | ZKB-200 |
|---|---|
| Bowl volume | 200 L |
| Batch productivity | 120–140 kg/batch |
| Power | 82 kW |
| Knives | 6 |
| Knife speed | 300 / 1800 / 3600 / 4200 rpm |
| Bowl speed | 7.5 / 10 / 15 rpm |
| Unloader | Variable-frequency control |
| Weight | 4800 kg |
| Dimensions | 3100 × 2420 × 2300 mm |
| Process | Vacuum |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your ZKB-200 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
