Confirm the Khinkali
Approve total weight, wrapper weight, pleat count, body diameter, top closure and the behaviour of the real filling.
KHINKALI · PLEATED FILLED DOUGH
HELPER GQ-2-SMD · FORMING MODULE ONLY

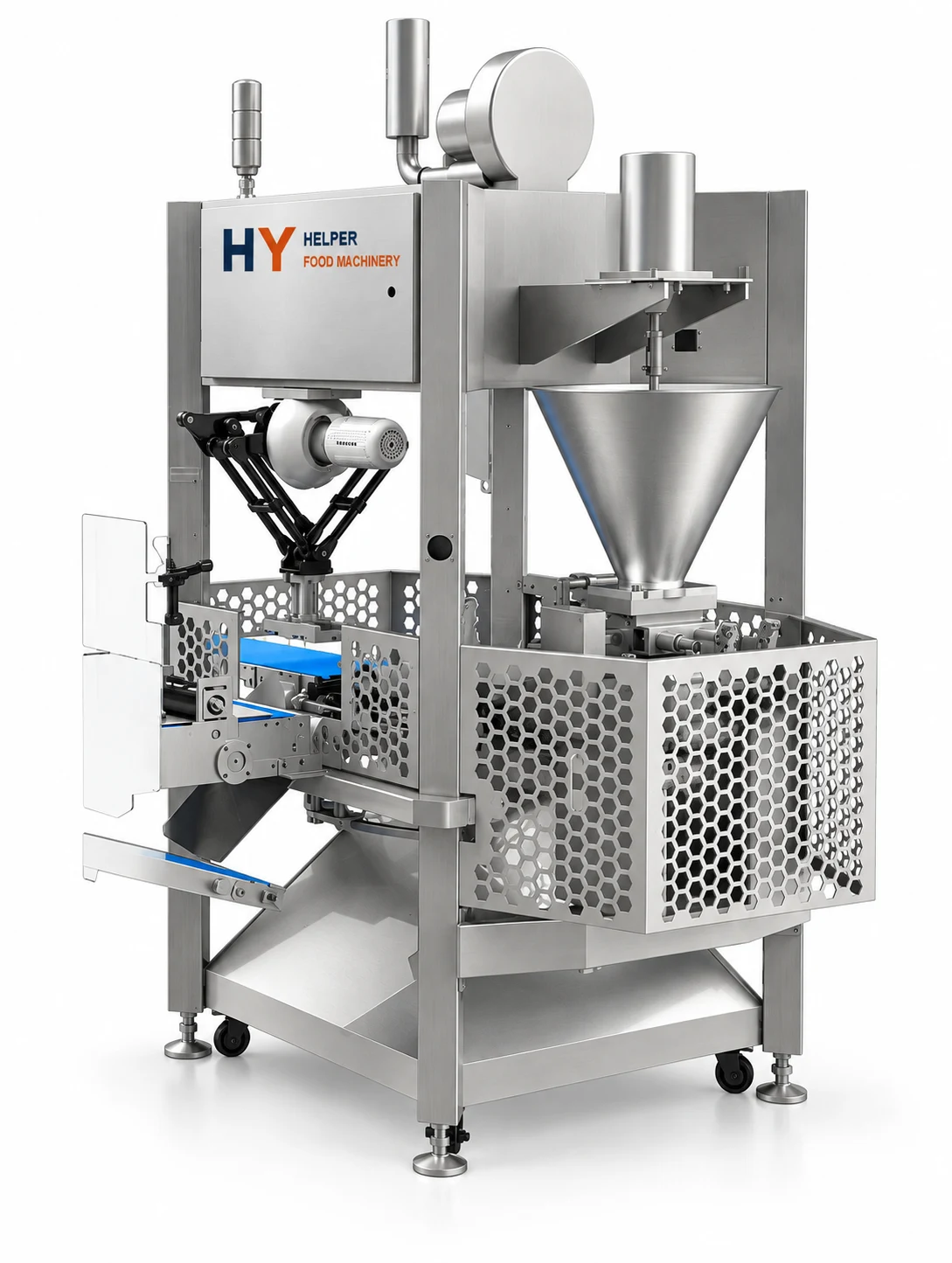

Full-Servo Khinkali Forming Machine
A HELPER-branded standalone forming module configured around a 60 g Khinkali product. Full-servo motion coordinates filling, pleating and product release for integration with the required dough, filling and downstream systems.
HELPER GQ-2-SMD Product ScopeThe machine is supplied as a dedicated Khinkali forming module. HELPER can also coordinate dough, filling and downstream interfaces for the agreed production route.
60 gKhinkali product configuration
11.5 kWConnected power
960 kgMachine weight
Full servoMotion control platform
Defined product scope
Use it as a forming module—not as a complete Khinkali line
The GQ-2-SMD covers the forming stage. Dough preparation, wrapper delivery, filling preparation and downstream cooking, freezing or packing are configured separately.
Configure the GQ-2-SMD
Servo-controlled motion coordinates dosing, pleating and release. Tooling is developed around an approved product specification.
Match the next process
Define discharge height, conveyor handoff, upright spacing and the route to cooking, freezing, tray loading or packing.
Machine operation · 2:01
Watch the GQ-2-SMD forming cycle
The operating test makes the moving sequence visible: dough-sheet transport, portion positioning, repeated pleated forming and discharge onto the conveyor.
What to watch
- Continuous dough-sheet feeding into the forming area
- Repeated forming-head motion and product release
- Spacing and orientation of finished Khinkali on discharge
Video source and performance boundary: embedded GQ-2-SMD operating footage from the YinghaoNing YouTube channel. The video title mentions 100 pieces/min; the clip demonstrates machine motion, while the accepted production rate still depends on the approved dough, filling, product weight, tooling and test method.
Watch the original video on YouTube ↗HELPER GQ-2-SMD product configuration; final tooling is confirmed against the approved Khinkali specification.
Machine platform
Built around controlled forming and repeatable changeover
Full-servo control
Electronic motion coordination supports repeatable setup of the forming sequence and product release.
Dedicated pleating tooling
A customized 14-fold Khinkali format is available; final tooling depends on an approved sample or drawing.
Food-zone construction
The machine uses a SUS304 structure with an anti-fingerprint painted surface treatment.
Utility-ready installation
Power supply can be configured for the project. Compressed-air capacity must be available at the installation point.
Technical configuration
GQ-2-SMD technical data
Product acceptance requires a trial with representative dough and filling, plus agreed finished-product criteria.
| Model | GQ-2-SMD | Supply scope | Forming machine only |
|---|---|---|---|
| Target product | Khinkali | Product weight | 60 g / piece |
| Wrapper portion | 35–40 g / piece Confirm before order | Control | Full servo motor control |
| Power supply | 380 VAC, 50/60 Hz; project voltage customizable | Connected power | 11.5 kW |
| Compressed air | ≥0.6 MPa, 200 L/min | Machine weight | 960 kg |
| Dimensions | 2255 × 1455 × 2310 mm | Structure | SUS304 with anti-fingerprint painted finish |
| Output capacity | Confirm by product trial | Tooling reference | Customized 14-fold format available |
Configuration check: a 60 g finished product with a 35–40 g wrapper portion leaves a relatively small filling allowance. Confirm the intended dough-to-filling ratio before final tooling and performance acceptance.
Khinkali validation
Approve the product before committing the tooling
Khinkali combines a relatively heavy product, moist filling and a gathered top closure. A useful factory trial therefore measures more than machine cycles: it checks wrapper damage, pleat definition, top-knot closure, filling giveaway, leakage and stable transfer to the next process.
Wrapper condition
Specify flour, hydration, resting time, thickness profile and temperature at the former.
Filling behaviour
Confirm particle size, free liquid, fat temperature and pumpability using the intended recipe.
Accepted output
Measure conforming products after leaks, malformed closures, start-up loss and normal interruptions.
Downstream handling
Keep the pleated pouch upright and separated through inspection, cooking, freezing or packing.
Buyer questions
GQ-2-SMD Khinkali machine FAQ
Is the GQ-2-SMD a complete production line?
No. The machine covers the forming stage. Preparation, transfer and downstream equipment are selected separately.
How is the GQ-2-SMD supplied?
It is a HELPER-branded Khinkali forming product. The final configuration defines tooling, utilities, interfaces and any additional line equipment.
Is production capacity guaranteed?
Sustainable accepted output must be established through a product trial and written acceptance criteria for the intended dough, filling and product format.
Can it make a 14-fold Khinkali?
A customized 14-fold format is available, but the finished sample, dimensions and tooling design must be approved before order confirmation.
Continue your evaluation
Compare the machine with the full production route
Engineering request
Validate your Khinkali before final selection
Send product photos or samples, total and wrapper weight, pleat target, dough and filling formulas, required output and downstream process.
Prepare a model-specific review.
HELPER will define the required utilities, tooling inputs, performance test and integration interfaces in the proposal.
Go to contact form
