Who should use this guide?
Production managers
Compare shifts, SKUs and lines without combining all loss types into one unexplained efficiency figure.
Maintenance teams
Distinguish equipment availability loss from speed loss and rejected product.
Continuous improvement teams
Create a stable baseline and prioritize the largest recurring loss before changing equipment or methods.

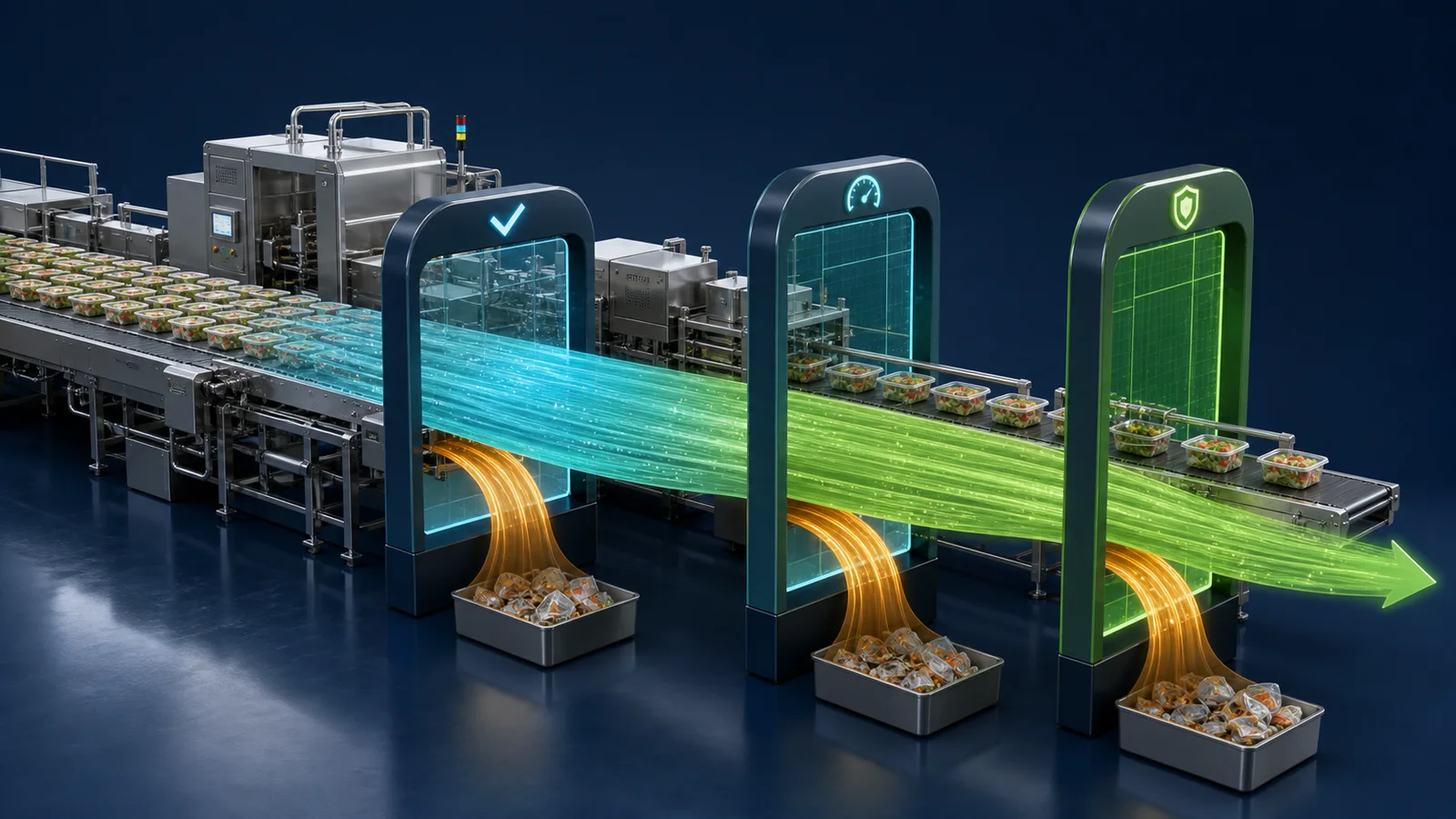

The OEE calculation
Availability
Run time / planned production time
Run time equals planned production time minus stops counted inside the selected boundary.
Performance
(Ideal cycle time × total count) / run time
Compares actual production against the validated ideal rate for the product and configuration.
Quality
Good accepted count / total count
Measures first-pass accepted output when the site's definition excludes rejects and rework.
All factors must use compatible units and the same period. If ideal cycle time is in seconds per unit, convert run time to seconds. Counts must represent the same unit, such as pieces, packs or kilograms.
Worked food-production example
A forming and packing line is scheduled for an eight-hour production period. The operating team records the following data:
| Input | Value | Definition used |
|---|---|---|
| Planned production time | 480 min | The period assigned to production |
| Recorded stop time | 55 min | Stops occurring inside that period |
| Ideal cycle time | 0.50 sec/unit | Validated rate for this SKU and configuration |
| Total count | 42,000 units | All units produced, before quality exclusion |
| Good accepted count | 40,800 units | First-pass output meeting release criteria |
Performance = (0.50 × 42,000) / (425 × 60) = 82.4%
Quality = 40,800 / 42,000 = 97.1%
OEE = 88.5% × 82.4% × 97.1% = 70.8%
The largest factor loss is performance, but this does not yet identify the cause. Review speed trends, starvation, blocking, micro-stops, product conditions and the validity of the ideal cycle standard before selecting corrective action.
Define the time boundary before collecting data
The same shift can produce different OEE results solely because teams define planned production time differently. Decide whether meal breaks, planned sanitation, allergen cleaning, product changeovers, preventive maintenance and no-order periods sit inside or outside the OEE boundary.
For food factories, maintain a second view of total scheduled or calendar time when excluded cleaning and changeover materially constrain sellable output. OEE should not make necessary hygiene work invisible.
Use a product-specific ideal cycle time
Performance depends directly on the ideal cycle time. A speed printed on a brochure is not automatically a valid standard for every dough condition, sausage diameter, package size or inspection requirement. Establish the fastest repeatable, conforming rate under defined operating conditions, then control revisions.
- Record product or SKU, size, weight and formulation.
- Record machine format parts, lane count and line configuration.
- Use accepted units and a declared unit basis.
- Separate equipment-limited speed from upstream starvation or downstream blocking.
- Revalidate after substantial equipment, product or method changes.
If calculated performance exceeds 100%, do not cap and accept it. Review the ideal cycle, unit conversions, lane multiplication, total count and selected time period.
Classify food-production losses consistently
| OEE factor | Food-production examples | Useful secondary record |
|---|---|---|
| Availability | Breakdown, sanitation overrun, setup, allergen changeover, waiting for release, no materials | Stop reason, start/end time, responsible function |
| Performance | Reduced speed, intermittent feed, short stops, sticky product, temperature drift, downstream blocking | Actual rate by time, micro-stop count, process condition |
| Quality | Weight rejects, seal failures, shape defects, contamination hold, startup scrap, rework | Defect type, quantity, disposition and detection point |
Waiting for quality release or ingredients reduces availability when the line was expected to run, even if engineering did not cause the event. OEE is an operating-system measure, not a maintenance score.
Quality needs a declared acceptance basis
Define whether good count means first-pass conforming output, released finished product or output after rework. First-pass accepted count normally exposes process losses more clearly. If reworked product is added back as good without showing the original loss, quality performance can look better while labor, time and material consumption increase.
OEE quality is not a food-safety validation. A high percentage does not demonstrate HACCP control, legal compliance, shelf life or hygienic operation.
Do not use one universal OEE target
A highly automated, single-SKU line and a short-run factory with frequent allergen changeovers have different operating constraints. A copied benchmark can encourage unsafe shortening of sanitation or production of inventory that is not needed. Build targets from the line's loss history, business constraint and achievable improvement plan.
Trend like with like
Compare the same product family, time boundary and acceptance rules.
Prioritize loss minutes
Convert factor gaps into time, units and value instead of ranking percentages alone.
Protect safety and hygiene
Never improve the metric by bypassing guards, energy isolation, cleaning or release controls.
Eight-step OEE implementation method
- Select the asset and constraint. Define whether measurement covers one machine or an integrated line.
- Freeze the period boundary. State exactly what is included in planned production time.
- Define product standards. Approve ideal cycle time for each material, format and configuration.
- Define count and quality rules. Use one unit basis and first-pass acceptance where practical.
- Capture stop events. Record duration and reason without creating an unusably large code list.
- Calculate all three factors. Do not report OEE without availability, performance and quality.
- Validate unusual results. Investigate values above 100%, abrupt shifts and missing records.
- Improve the dominant repeatable loss. Confirm root cause, action owner, safety review and sustained result.
Common mistakes
- Changing the denominator between shifts or sites.
- Using a nameplate maximum instead of a product-specific ideal cycle.
- Mixing kilograms, packs and pieces in one calculation.
- Counting rework as first-pass good output.
- Assigning every stop to maintenance.
- Using daily averages that hide short severe events.
- Improving OEE by overproducing or reducing necessary sanitation.
- Treating OEE as proof of capacity, food safety or profitability.
Minimum OEE data record
Asset and line boundary; date, shift and SKU; planned production time; stop start, end and reason; run time; approved ideal cycle and revision; total count; first-pass accepted count; rejects and rework by reason; operator or data source; calculation version; review owner; corrective action and follow-up result.
Frequently asked questions
What is OEE in food production?
It is the product of availability, performance and quality for a defined period, used to separate time, speed and accepted-output losses.
Should planned cleaning reduce availability?
Yes when it occurs inside planned production time. A site may define the boundary differently, but it must document and apply that boundary consistently.
Is 85% a universal OEE target?
No. Product mix, process type, sanitation, changeover, automation and market demand materially affect a useful target.
Why is performance above 100%?
The ideal cycle time, count basis, lane factor, time conversion or SKU standard is likely inconsistent.
Does high OEE prove that a line is profitable?
No. OEE excludes selling price, labor cost, material yield, utility cost, inventory and capital cost.
Calculate the three losses separately
Use one production period and controlled definitions, then investigate the largest factor loss with detailed event data.
Open the Food Production OEE Calculator | Calculate production yield and loss
Standards and primary references
- ISO 22400-2:2014, Automation systems and integration - Key performance indicators for manufacturing operations management - Part 2 - definitions and descriptions of manufacturing operations KPIs.
- NIST Journal of Research, Volume 121 (2016), Smart Manufacturing Operations Planning, Control, and Optimization - manufacturing productivity measurement and OEE context.
- NIST, Manufacturing Science and Engineering Conference proceedings - manufacturing performance metrics including OEE.
- Codex CXC 1-1969, General Principles of Food Hygiene - food hygiene and HACCP baseline relevant to cleaning and process control.
- OSHA 29 CFR 1910.147, Control of hazardous energy - U.S. requirements relevant to servicing and maintenance safety.
Confirm current standards and legal requirements for the project jurisdiction. OEE definitions should be approved in the site's controlled operating system.
