Automatic Bubble & Vortex Vegetable Washing Line
A staged HELPER cleaning system combining upper spray, lower bubbling, circulating water, vortex washing, impurity filtration and final vibratory drainage.
More than a single water tank
The official HELPER record describes a continuous washing system for large quantities of vegetables such as cabbage and potatoes. The first stage combines upper spray with lower bubbling. Water movement separates loose soil and foreign matter while floating material travels with the surface flow. An adjustable chain-belt conveyor stabilizes transport and changes residence time.
A second vortex stage creates spiral water movement intended to turn ingredients through a wider cleaning path. The page describes 360-degree tumbling without product damage, but damage performance must be confirmed with the actual produce. Leafy greens, cut cabbage, potatoes, onions, spinach and tomatoes differ greatly in density, fragility and soil load.

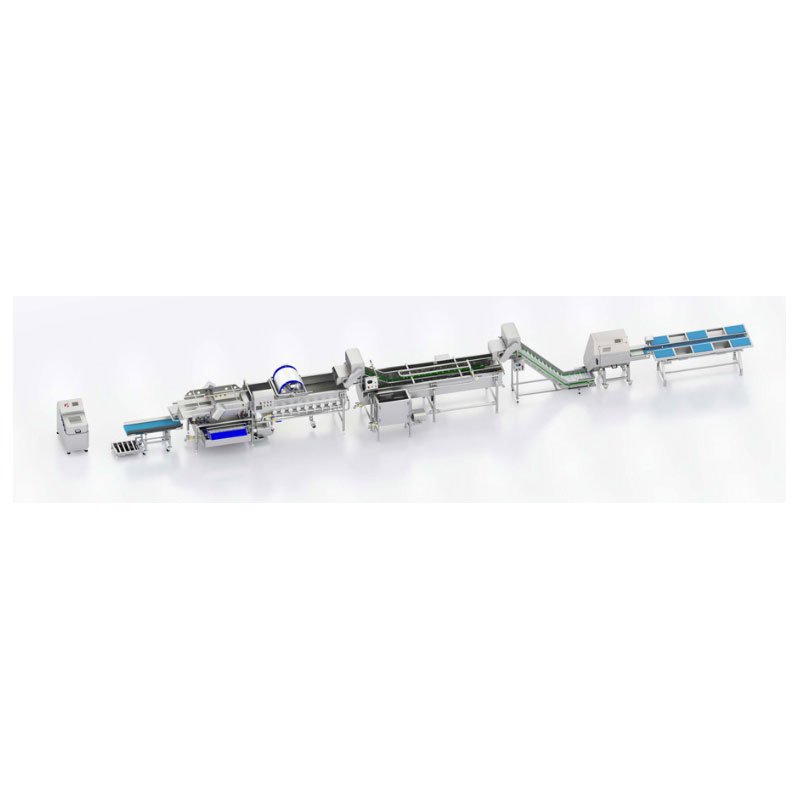

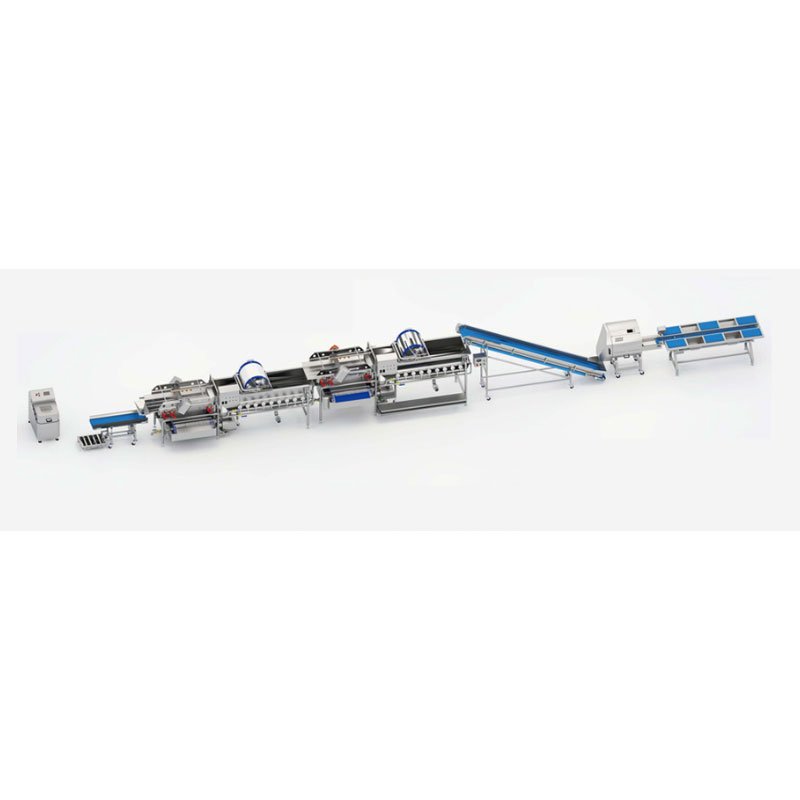

The official images show a configurable multi-module line rather than a single fixed machine. This distinction matters: capacity, footprint, tank length, pump duty, filtration area, conveyor width and water volume depend on the project. No verified fixed model, capacity, motor schedule or external dimensions are published on the product page, so this page does not invent them.
From incoming produce to drained discharge
The source also describes a double rotating-cage filter for impurities, eggs, hair and fine particles. That is a qualitative design statement, not a validated microbiological claim. Cleaning visibly soiled produce does not by itself establish pathogen reduction, pesticide removal or sanitation. If a customer requires chemical dosing, ozone, disinfection or a specific log reduction, those requirements need a separate validated process and must be explicitly included in the engineering scope.
What is confirmed—and what must be engineered
| Item | Status |
|---|---|
| Construction | Published 304 stainless thickened plate |
| Primary wash | Upper spray + lower bubbling |
| Secondary wash | Vortex / spiral water flow |
| Conveying | Adjustable-speed chain-belt structure |
| Impurity removal | Double rotating-cage filtration described |
| Final stage | Top spray + lower vibration and drainage |
| Model, output, power, dimensions | Not reliably published; project confirmation required |
Source-quality note: the bottom of the official page contains two paragraphs about vacuum dough kneading. They are clearly unrelated copy contamination and are excluded. No exact HELPER Group, Chinese-site or official Alibaba counterpart was verified, and no exact embedded product video was exposed.
Define the wash around contamination and product quality
Start with produce type, whole or cut condition, incoming temperature, maximum dimensions, bulk density and hourly flow. Document the expected soil, leaves, insects, hair, stones and other contamination. Then define acceptable residual soil, product damage, water carryover and cross-contamination risk. Root vegetables may need stronger agitation or upstream brushing; delicate leaves require gentler handling and controlled dwell time.
Utilities must cover potable-water quality, make-up flow, recirculation, drainage, electrical supply and any heating or chemical-control requirement. The floor plan needs access around tanks, pumps, filters and conveyors. Drain capacity must handle dumping and cleaning without pooling. A hygienic design review should verify access to submerged surfaces, pipework, corners, filter cages and belt returns, along with safe lockout for pumps, conveyors and vibration equipment.
For factory acceptance, weigh feed and acceptable output over a defined period. Measure residual contamination using an agreed sampling method; record damaged produce, product loss, water consumption, filter loading and discharge moisture. Test minimum and maximum conveyor speeds. Introduce a representative impurity challenge only through an agreed safe protocol. Demonstrate tank draining, filter removal, cleaning access, emergency stops, guarding and restart behavior. For multi-product plants, run the most fragile and the most heavily soiled products rather than approving the line on one easy ingredient.
Vegetable washing line questions
What is the published capacity?
The exact official page does not publish a reliable fixed capacity. Output must be sized around produce, soil load, conveyor width, residence time and the required cleaning result.
Does the system disinfect vegetables?
The verified description supports physical spray, bubble, vortex and filtration cleaning. It does not establish a validated microbial reduction. Any disinfection claim requires a defined chemical or physical process and validation.
Can one line wash leafy and root vegetables?
Potentially, but the operating window is different. Confirm agitation, dwell time, filtration and product damage using both material types during trials.
Why is there no specification table with power and dimensions?
The official images and wording indicate a configurable modular line, while the source provides no dependable fixed schedule. Those values should come from the project GA drawing and signed quotation.
Size the wash line with actual produce
Send product photos, incoming contamination, hourly flow, required cleanliness, water conditions and available floor space for a configuration and trial plan.
Send washing requirementsApplication fit
Applications for Automatic Bubble & Vortex Vegetable Washing Line
Best suited to continuous washing of leafy vegetables, roots, fruit or other qualified produce using the selected bubble, vortex, spray and drainage modules. Final suitability should be confirmed with representative product trials and the agreed acceptance criteria.
