Movable frame
Reposition the hoist to suit the production layout.
Products / Material Handling / YT-200
HELPER · Product specifications

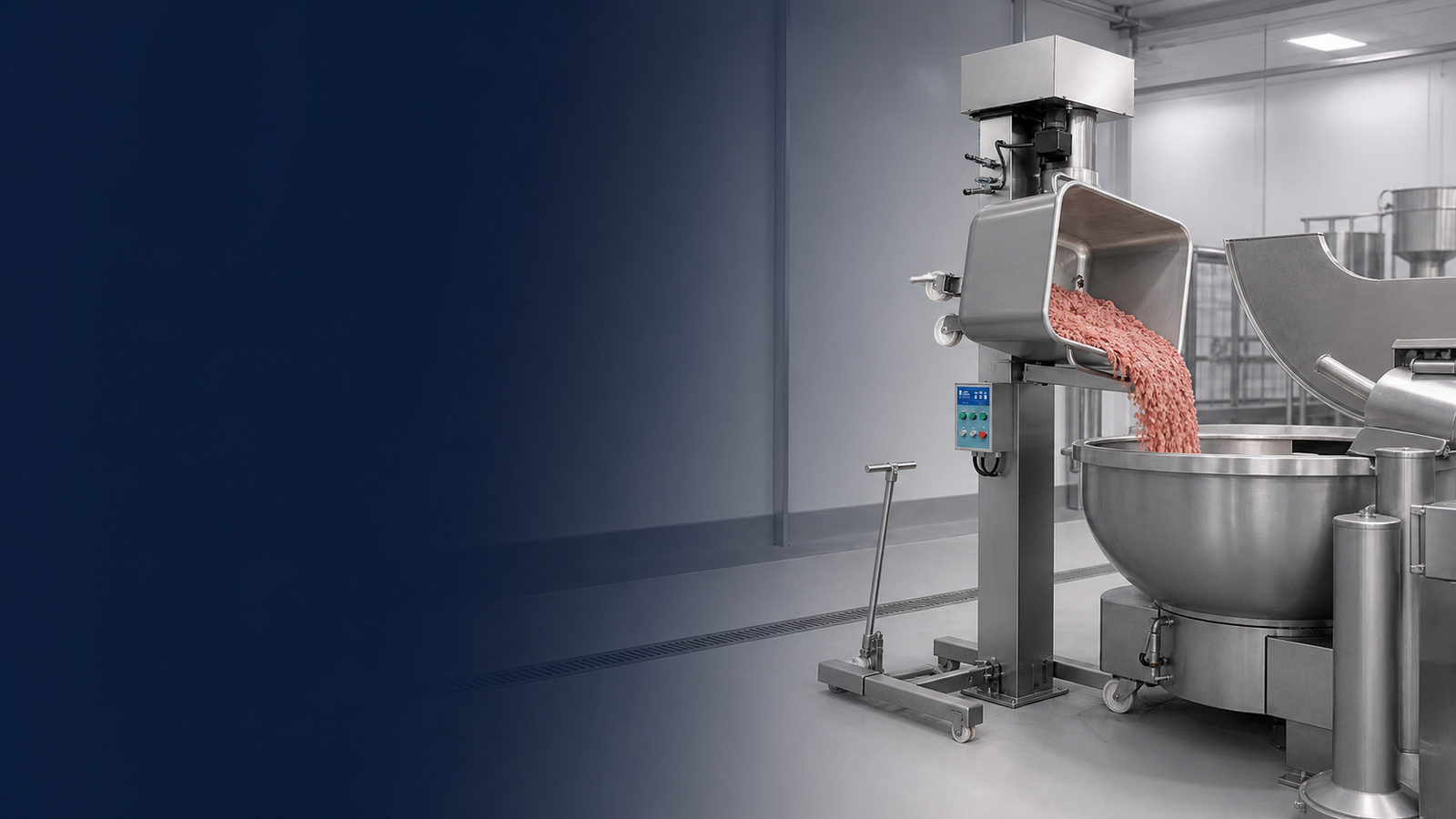

YT-200 Movable Bin Hoist
A movable stainless-steel chain-driven hoist that raises a standard meat bin and tips material into the receiving machine hopper.
View specifications Request a quotation
Design and operation
Standard-bin handling
The catalog platform is designed for a 200 L meat bin.
Hopper transfer
Lift and tip the material into the receiving machine.
Stainless chain-drive machine
The catalog specifies stainless construction and chain transmission.
2026 product catalog
YT-200 technical data
| Model | YT-200 |
|---|---|
| Compatible bin | 200 L standard meat bin |
| Lift load | 200 kg |
| Lift height | 1.3–1.8 m adjustable |
| Lift speed | 3.5 m/min |
| Power | 1.5 kW |
| Weight | 500 kg |
| Dimensions | 1400 × 1300 × 2800 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference
Use this process demonstration together with the model-specific technical schedule above.
Plan your YT-200 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
