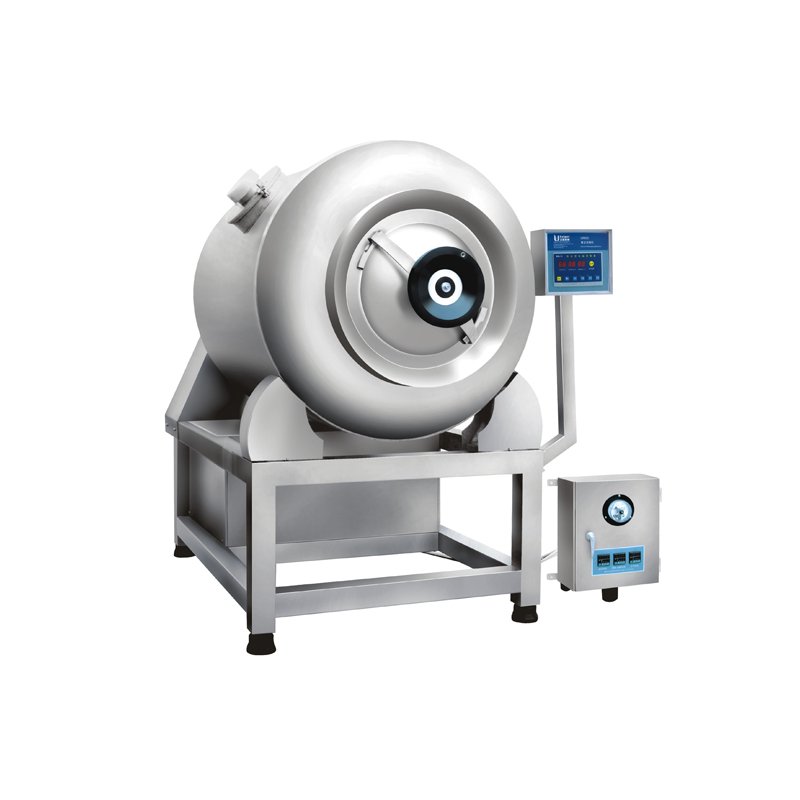

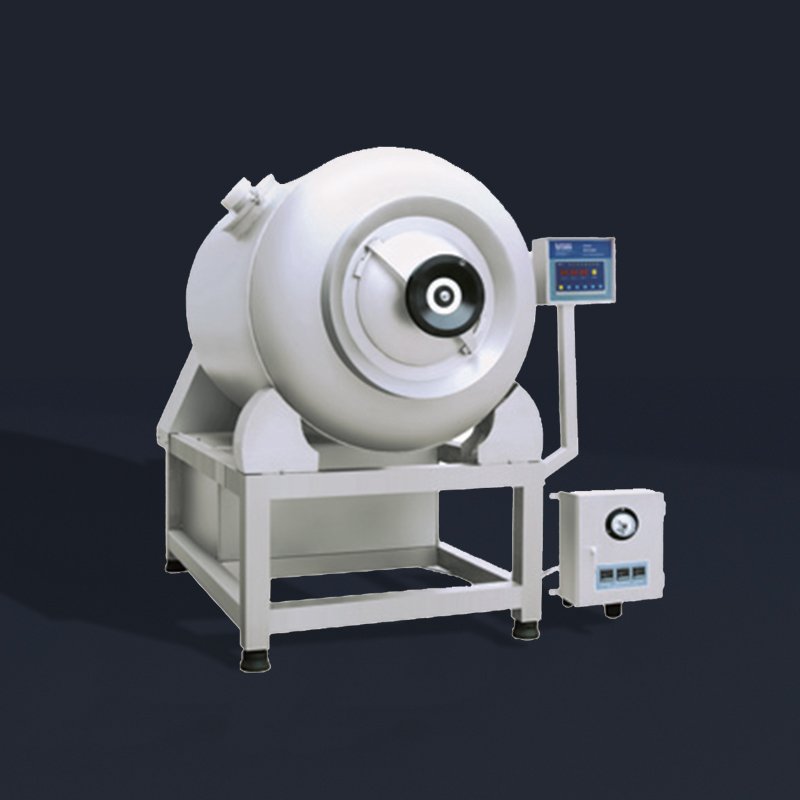

GR-1000 Vacuum Meat Tumbler

GR-1000: Meat is lifted and folded inside a rotating vacuum drum. Repeated contact distributes curing ingredients and develops binding; programmed running and rest periods let the process be adapted to the product.

View specifications Request a quotation

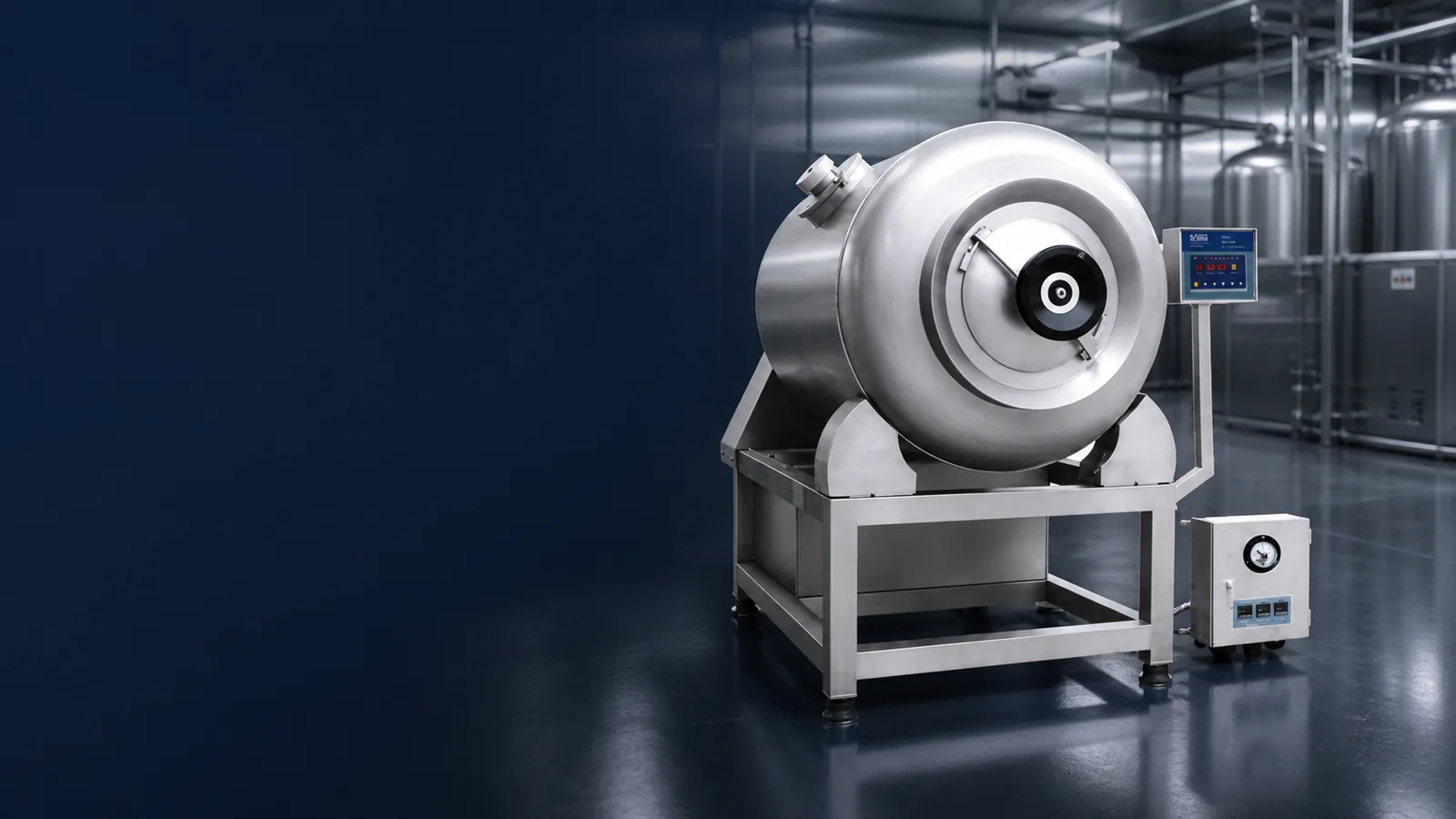

AI product visualization of the GR-1000 vacuum meat tumbler based on supplied machine photographs — AI product visualization based on supplied machine photographs. Refer to the real workshop images below for equipment details.

Real workshop photographs

GR-1000 in the production workshop

Explore the production area, machine body, GR-1000 controls and drive details in these HELPER workshop photographs. Select any image for a larger view.

Vacuum tumblers in the HELPER production area — Production-area overviewView larger ↗

GR-1000 drum and support frame in the workshop — Drum and support frameView larger ↗

Vacuum tumbler front lid support and hose assembly — Front lid and hose assemblyView larger ↗

HELPER GR-1000 control panel in the workshop — GR-1000 control panelView larger ↗

Vacuum tumbler front connection flange hose and valve close-up — Valve and connection flangeView larger ↗

Inside face of vacuum tumbler lid with pipe connection — Inner lid and pipe connectionView larger ↗

Multiple HELPER vacuum tumbler drums in the assembly area — Tumbler assembly areaView larger ↗

Rear view of HELPER vacuum tumblers with drive components — Rear assembly viewView larger ↗

Vacuum tumbler pump motor hoses and lower frame in the workshop — Pump and lower-frame detailView larger ↗

Vacuum tumbler chain sprocket bearing and drive assembly — Chain drive and bearing detailView larger ↗

Photographed during workshop assembly and preparation. The images show equipment details and do not represent an operating procedure or a measured production test.

Vacuum marination and tumbling

Vacuum processing

Reduced-pressure tumbling helps distribute marinade while the drum supplies mechanical action.

Repeatable cycles

Set the running and rest sequence around cut size, formulation and the required finished texture.

Stainless construction

The catalog specifies a stainless-steel machine with formed drum end caps and accessible surfaces.

Product temperature

Select the separately listed cooling configuration where the process needs active heat removal.

2026 product catalog

GR-1000 technical data

Model	GR-1000
Drum volume	1,000 L
Batch capacity	500–600 kg/batch
Power	2.6 kW
Drum speed	6.5 rpm
Vacuum	−0.08 MPa
Weight	850 kg
Dimensions	2000 × 1400 × 1700 mm
Cooling option	Available by configuration

Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.

Plan your GR-1000 configuration

Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
