Servo clipping
The drive and cam arrangement complete the clipping cycle.
Products / Sausage Clippers / CSK-15/18
HELPER · Product specifications

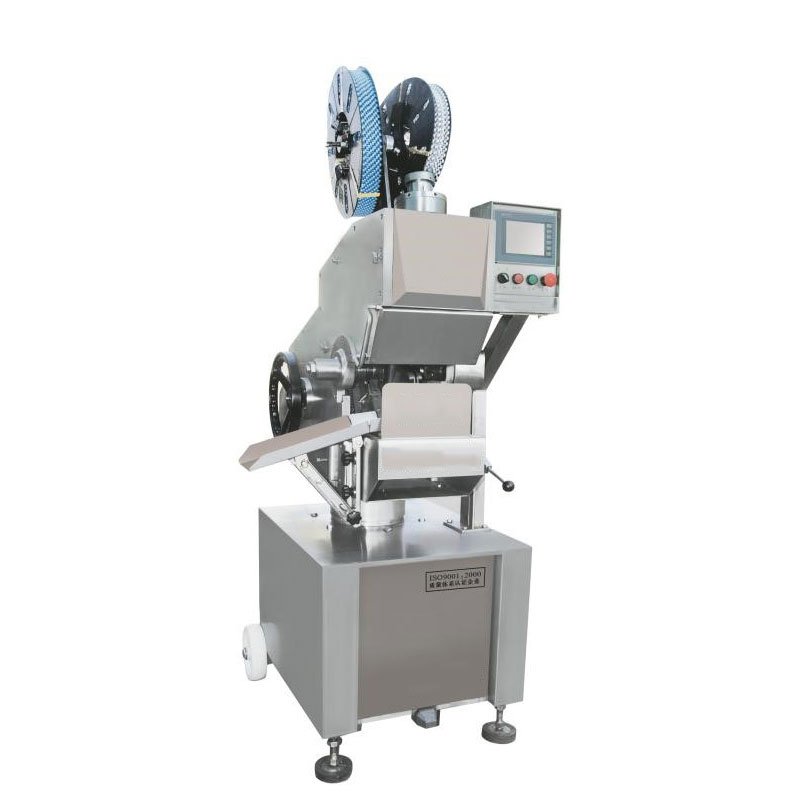

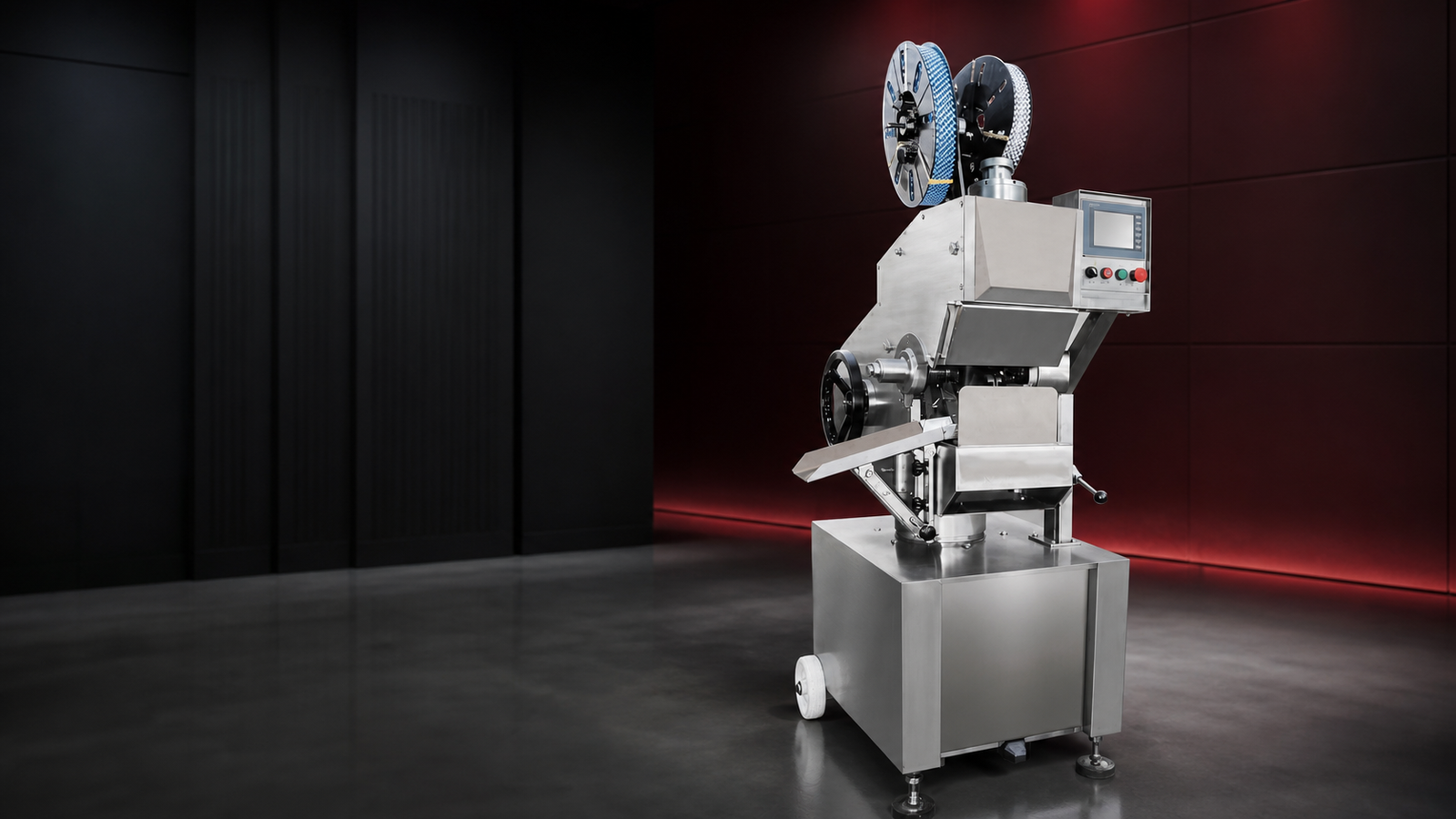

CSK-15/18 Mechanical Double Clipper
A servo-driven Great Wall double clipper with PLC control, pneumatic cutting and automatic lubrication.
View specifications Request a quotation
Design and operation
Operator interface
PLC and operator interface control the sequence.
Automatic lubrication
Lubrication supplies the key moving parts.
Filler integration
Connect with a compatible filling machine for line production.
2026 product catalog
CSK-15/18 technical data
| Model | CSK-15/18 |
|---|---|
| Clip type | Great Wall aluminum clips |
| Speed | 0–120 cycles/min adjustable |
| Power | 2.7 kW |
| Table electrical supply | Single-phase 220 V ±10% |
| Cutting air pressure | 0.5–0.6 MPa |
| Casing flat-width entry | 30–120 / 160 mm |
| Air consumption | 0.0064 m³; cutter basis |
| Weight | 760 kg |
| Dimensions | 760 × 750 × 1700 mm |
| Cutting count setting | 0–9 adjustable |
The table lists 220 V single-phase; the English feature list also mentions 380 V three-phase. Confirm the selected electrical configuration before installation. Casing limits also vary between table and prose; approve the tooling range.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference
Use this process demonstration together with the model-specific technical schedule above.
Plan your CSK-15/18 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
