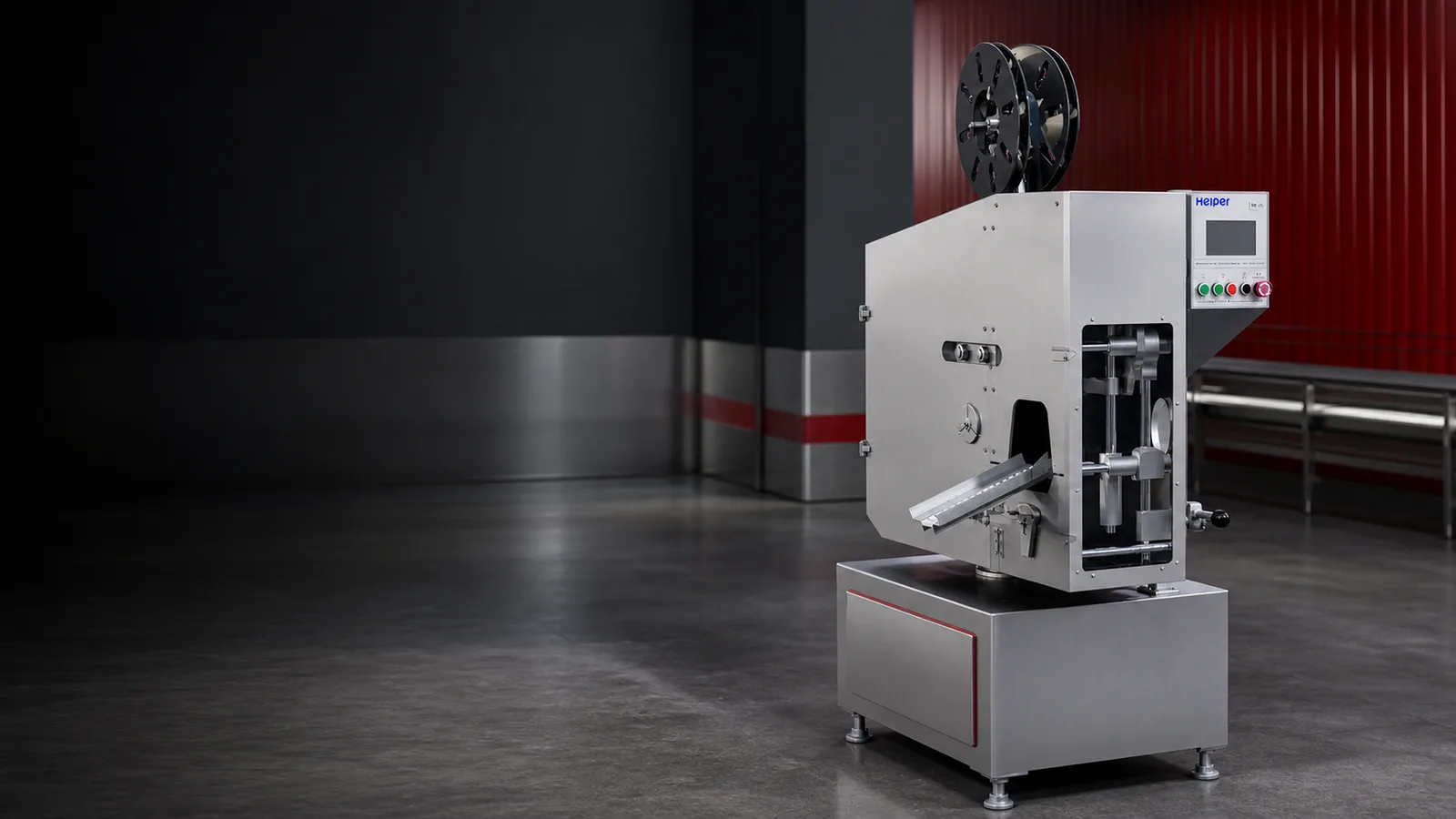

CSK-15II & CSK-18III Double Clippers

Servo-driven double clipping for integration with a continuous quantitative filler, with pneumatic cutting and automatic lubrication.

View specifications Request a quotation

CSK-15II & CSK-18III Double Clippers — Product configuration and working details.

Design and operation

PLC control

Programmable control coordinates clipping and cutting.

Continuous operation

The drive is designed for continuous high-speed clipping.

Automatic lubrication

Oil distribution lubricates the main moving components.

Loop option

An optional loop device supports hanging products.

2026 product catalog

CSK-15II / CSK-18III technical data

Model	CSK-15II / CSK-18III
Clip type	Great Wall aluminum clips
CSK-15II speed / power	0–160 cycles/min; 2.7 kW
CSK-15II casing flat width	30–120 mm
CSK-15II stretching distance	36 / 60 mm
CSK-15II weight / dimensions	630 kg; 1090 × 930 × 1900 mm
CSK-18III speed	0–100 cycles/min
CSK-18III power	0.2 kW as printed; confirm installed motor power before utility design
CSK-18III casing flat width	50–200 mm
CSK-18III stretching distance	36–100 mm adjustable
CSK-18III weight / dimensions	660 kg; 1160 × 930 × 2020 mm
Electrical supply	Single-phase 220 V ±10%
Cutting air pressure	0.5–0.6 MPa
Catalog air-consumption entry	0.01 m³; cycle basis to be confirmed
Cutting count setting	0–20 adjustable

The CSK-18III power is printed as 0.2 kW in the catalog. Verify this field against the motor schedule before electrical design.

Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.

Operating reference

Use this process demonstration together with the model-specific technical schedule above.

Plan your CSK-15II / CSK-18III configuration

Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
