Even distribution
Inclined paddles move material through the trough and combine ingredients throughout the batch.
Products / Meat Mixers / ZKJB-650 Cooling
HELPER · Product specifications

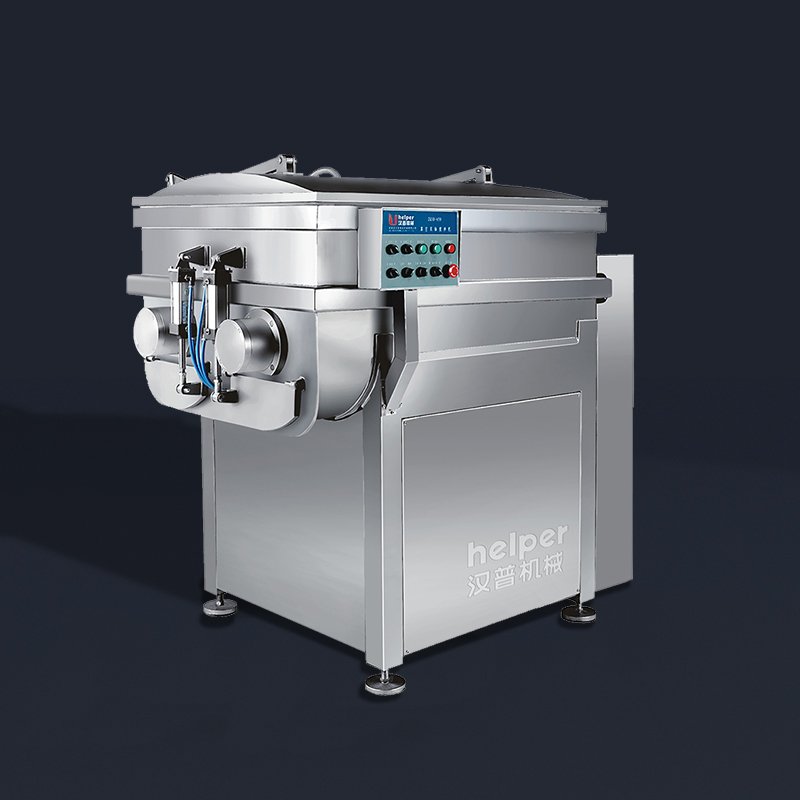

ZKJB-650 Cooling Vacuum Meat Mixer
ZKJB-650 Cooling: Parallel shafts and inclined paddles turn ingredients through the trough to distribute meat, vegetables and seasonings. Stainless-steel construction and accessible product-contact surfaces support routine cleaning.
View specifications Request a quotation
Twin-shaft ingredient mixing
Controlled handling
The catalog describes pneumatic lid and discharge-door operation for the production mixing platform.
Vacuum or atmospheric
Choose the JB atmospheric machine or the ZKJB sealed vacuum machine according to the required texture and air removal.
Cooling configuration
Cooling versions have their own weights and installation dimensions. Define the coolant circuit and temperature duty when ordering.
2026 product catalog
ZKJB-650 Cooling technical data
| Model | ZKJB-650 Cooling |
|---|---|
| Process | Vacuum mixing with cooling configuration |
| Chamber volume | 650 L |
| Mixing speed | 20 / 41 rpm |
| Power | 10.1 kW |
| Weight | 1500 kg |
| Dimensions | 1800 × 1400 × 1800 mm |
| Cooling duty | Confirm coolant circuit, supply temperature and required heat removal |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.

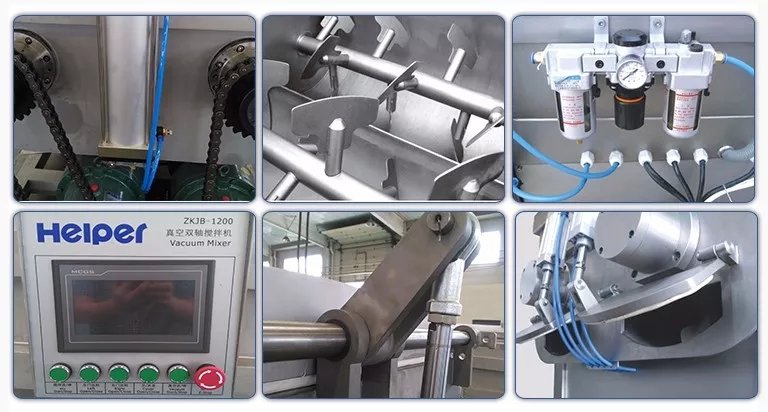

Machine and process details
Plan your ZKJB-650 Cooling configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
