ZKJB-300: Parallel shafts and inclined paddles turn ingredients through the trough to distribute meat, vegetables and seasonings. Stainless-steel construction and accessible product-contact surfaces support routine cleaning.

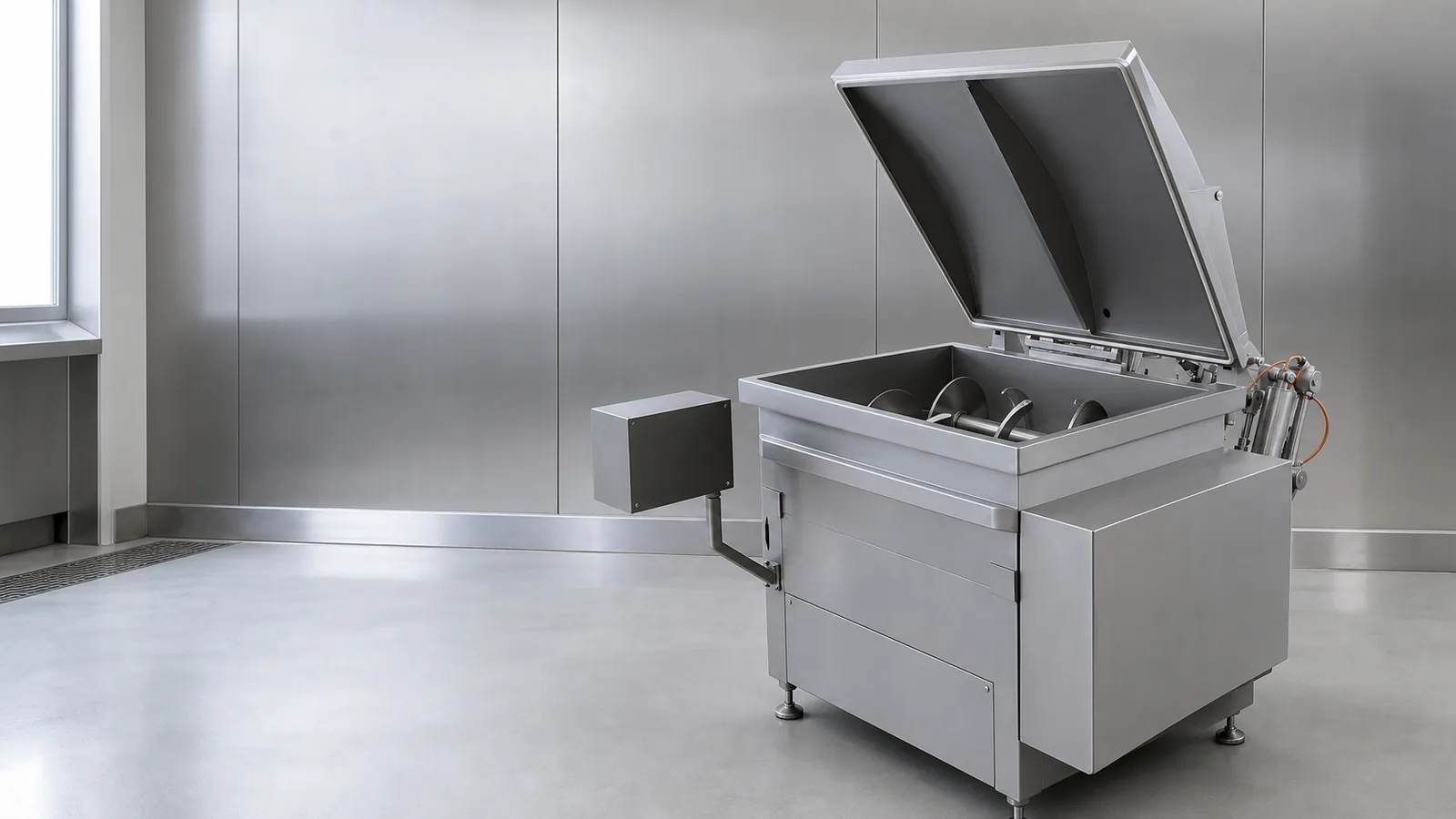

AI-assisted product visualization based on HELPER ZKJB-300 reference photography. Verified workshop images appear below.
Twin-shaft ingredient mixing
Even distribution
Inclined paddles move material through the trough and combine ingredients throughout the batch.
Controlled handling
The catalog describes pneumatic lid and discharge-door operation for the production mixing platform.
Vacuum or atmospheric
Choose the JB atmospheric machine or the ZKJB sealed vacuum machine according to the required texture and air removal.
Cooling configuration
Cooling versions have their own weights and installation dimensions. Define the coolant circuit and temperature duty when ordering.
September 2026 machine nameplate
ZKJB-300 technical data
Model
ZKJB-300
Process
Vacuum mixing
Chamber volume
300 L
Mixing speed
84 / 42 rpm
Power
5.9 kW
Rated voltage
380 V
Compressed-air pressure
0.6 MPa
Gross weight
660 kg
Dimensions
1250 × 1150 × 1500 mm
Usable batch mass
Set by formulation and working fill level; not specified on the machine nameplate
The electrical supply, utilities and final configuration must be confirmed for each order. The voltage, power, air pressure, gross weight and dimensions above match the September 2026 production-machine nameplate.
Verified workshop photography
Machine and process details

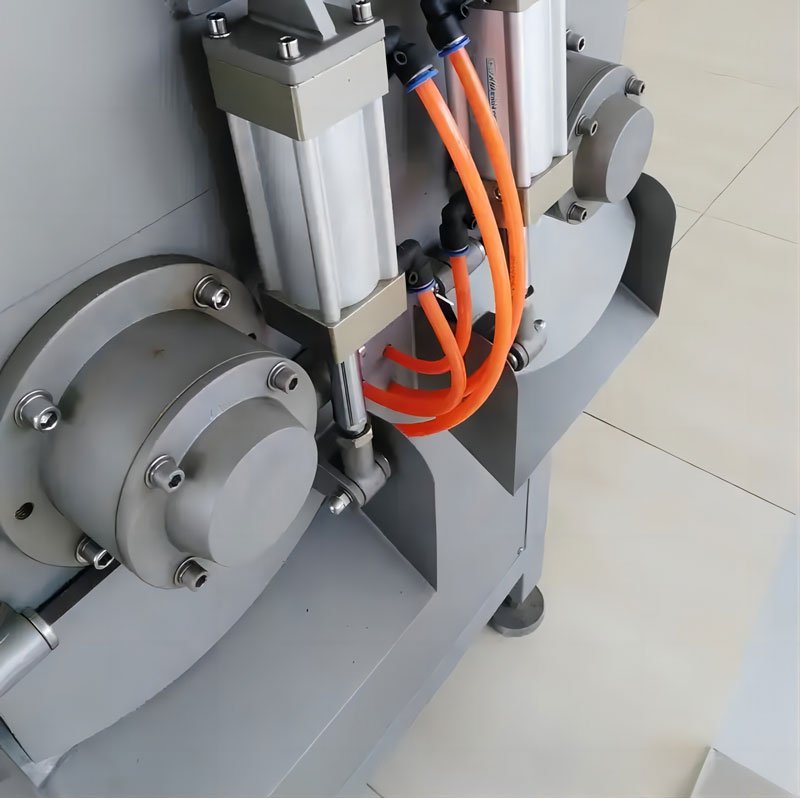

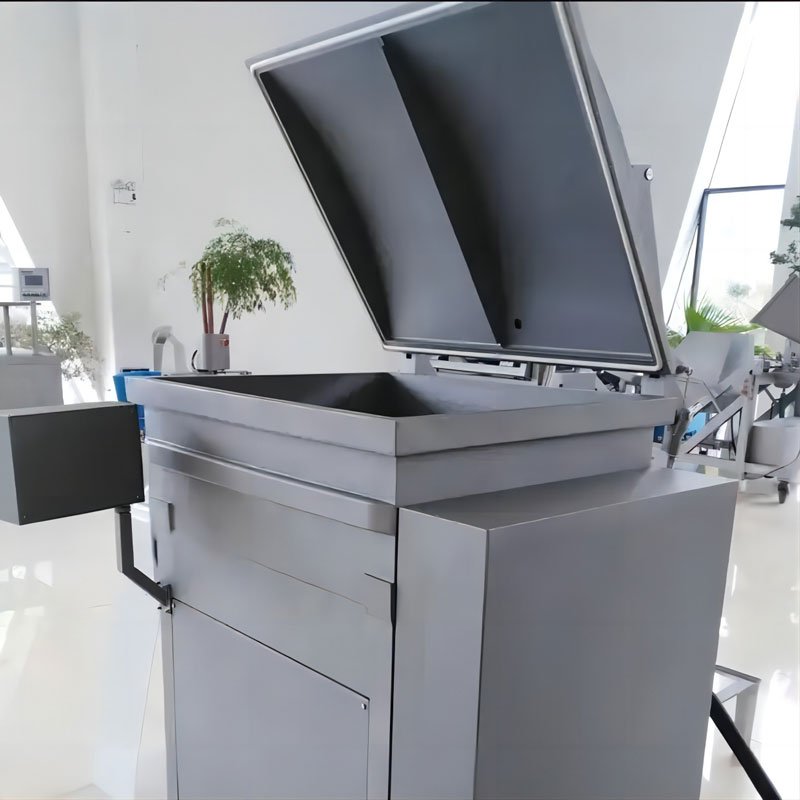

Front view and operator controls on the workshop machine.Operator controls and ZKJB-300 machine identification.Pneumatic lid mechanism and rear service side.Full stainless-steel body during workshop inspection.
Real workshop video · English narration
See the chamber, lid and controls
This 23-second HELPER walkthrough shows the actual ZKJB-300 exterior, pneumatic lid, operator panel and accessible twin-shaft mixing chamber.
What to watch
Use the footage to review access and machine layout.
Confirm usable batch mass, vacuum settings and cycle time for the actual formulation.
The clip is a structural walkthrough, not a certified throughput test.
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
