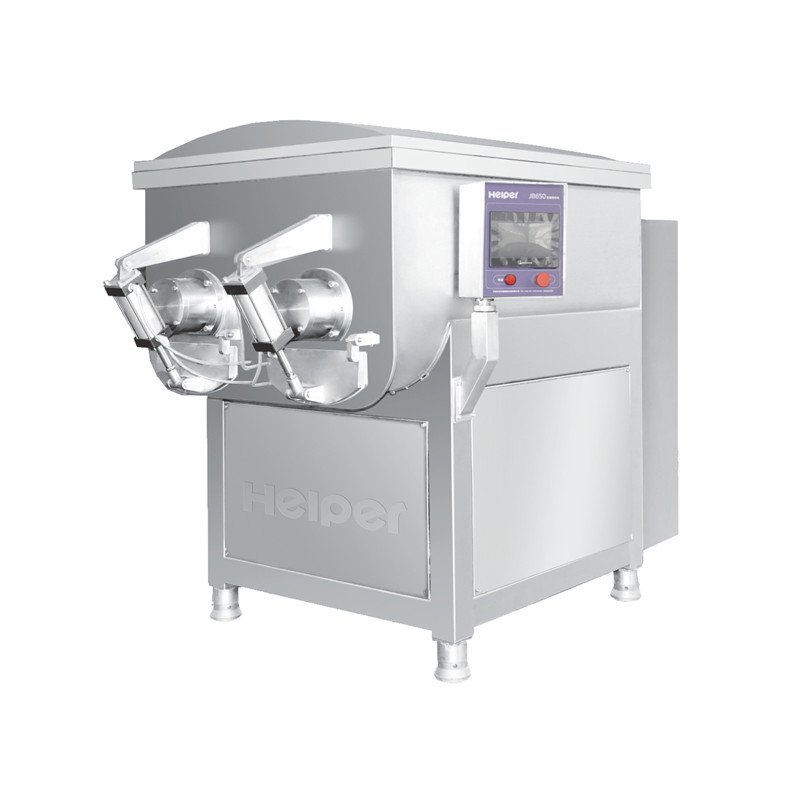

The JB-400 is a 400 L atmospheric twin-shaft mixer for batch
blending meat, vegetables and seasonings. This page is for the
JB-400 non-vacuum machine; it is not the sealed
ZKJB vacuum mixer.
Inclined paddles move material through the trough and combine
ingredients throughout the batch.
Pneumatic handling hardware
Current factory photos show pneumatic actuators and the two-door
discharge mechanism used on this machine configuration.
JB means non-vacuum here
JB-400 operates at atmospheric pressure. If the process requires
air removal under a sealed lid, review the separate ZKJB vacuum
mixer range.
Quote the working configuration
Confirm product condition, working batch, electrical supply,
controls, discharge arrangement and any cooling duty before the
final layout is released.
2026 product catalog
JB-400 technical data
Model
JB-400
Process
Atmospheric / non-vacuum
Chamber volume
400 L
Mixing speed
100 / 50 rpm
Power
4.4 / 4.6 kW
Weight
450 kg
Dimensions
1400 × 900 × 1500 mm
Usable batch mass
Set by formulation and working fill level; not specified in
the catalog table
These values follow the current catalog schedule used for this page.
Archived JB-400 materials contain different speed, power, weight and
dimension schedules, so the signed quotation and approved general
arrangement drawing are the controlling documents for each order.
Usable batch mass also depends on product density, formulation and
working fill level.
Owned factory photography · September 2026
See the current JB-400 machine
These photographs document the actual atmospheric JB-400 unit shown
in the video. They provide visual evidence of the machine identity
and visible hardware, but they do not replace order-specific
drawings or acceptance testing.
Control side: the plate identifies JB400 / TWO AXIS MIXER; the
lower frame exposes the twin-drive area.
Side view: raised atmospheric lid, two discharge outlets and
pneumatic actuator hardware.
Discharge side: paired pneumatic actuators, linkage and the open
electrical enclosure during factory assembly.
Rear drive view: two chain drives, motors and the central
pneumatic assembly beneath the mixing trough.
39-second machine walk-around
Watch the JB-400 factory video
The owned walk-around connects the model name to the real machine
and shows details that are difficult to judge from a single catalog
image. It is a visual product overview, not a loaded-product
performance test.
What to watch for
JB400 / TWO AXIS MIXER identification on the control plate
Atmospheric lid and stainless mixing trough construction
Twin-drive layout and pneumatic discharge hardware
Original HELPER factory footage recorded September 27, 2026.
English on-screen summary added for international viewers.
Send the product, incoming condition, required output and available
factory space. Include the required electrical supply and the
machines before and after this operation.
