Direct frozen-meat processing
The JR-D family is described for frozen meat; confirm the block size and temperature for the selected cutting set.
Products / Meat Grinders / JR-Q120
HELPER · Product specifications

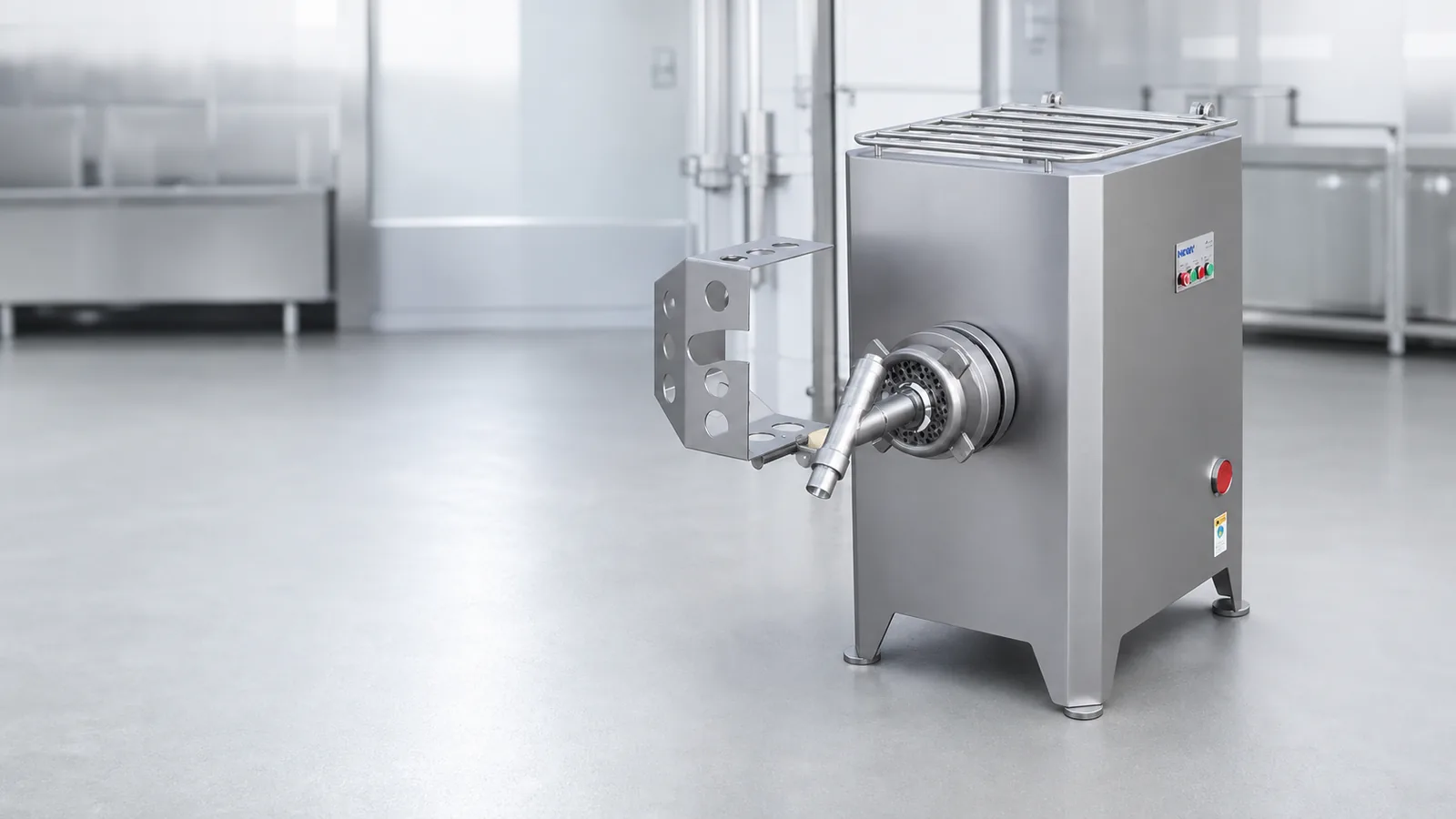

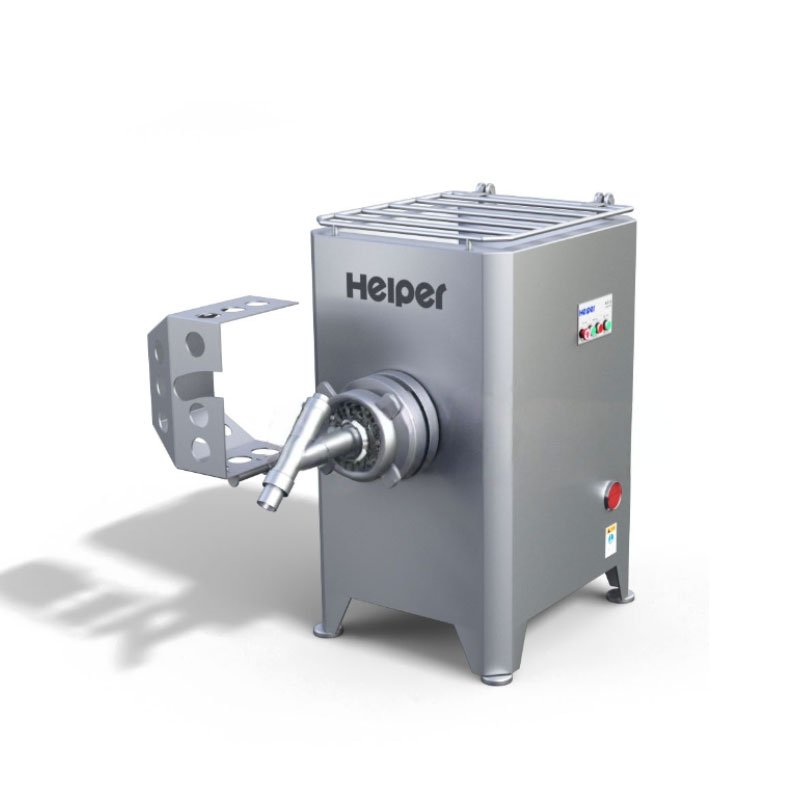

JR-Q120 Fresh Meat Defascia Mincer
JR-Q120 is the catalog grinder configuration for preparing meat for downstream processing. Specify the required fascia-separation cutting set with the machine.
View specifications Request a quotation
Frozen-meat preparation
Particle preparation
Select the plate and knife arrangement around the downstream texture and throughput target.
Integrated hopper and feed path
The catalog joins the hopper and material path to support smooth feeding.
Cleaning and changeover
Accessible stainless-steel product-contact parts support cleaning and cutting-set maintenance.
2026 product catalog
JR-Q120 technical data
| Model | JR-Q120 |
|---|---|
| Productivity | 1–1.5 t/h |
| Power | 7.5 kW |
| Electrical supply | 380 V / 50 Hz |
| Rotation speed | 240 rpm |
| Weight | 300 kg |
| Dimensions | 1050 × 550 × 1120 mm |
The catalog identifies JR-Q120 in the grinder schedule. Confirm the required fascia-separation cutting set in the supplied configuration.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your JR-Q120 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
Contact HELPER
