Knife and bowl coordination
Select the listed knife and bowl settings for ingredient distribution and the required cutting result.
Products / Bowl Cutters / ZB-200
HELPER · Product specifications

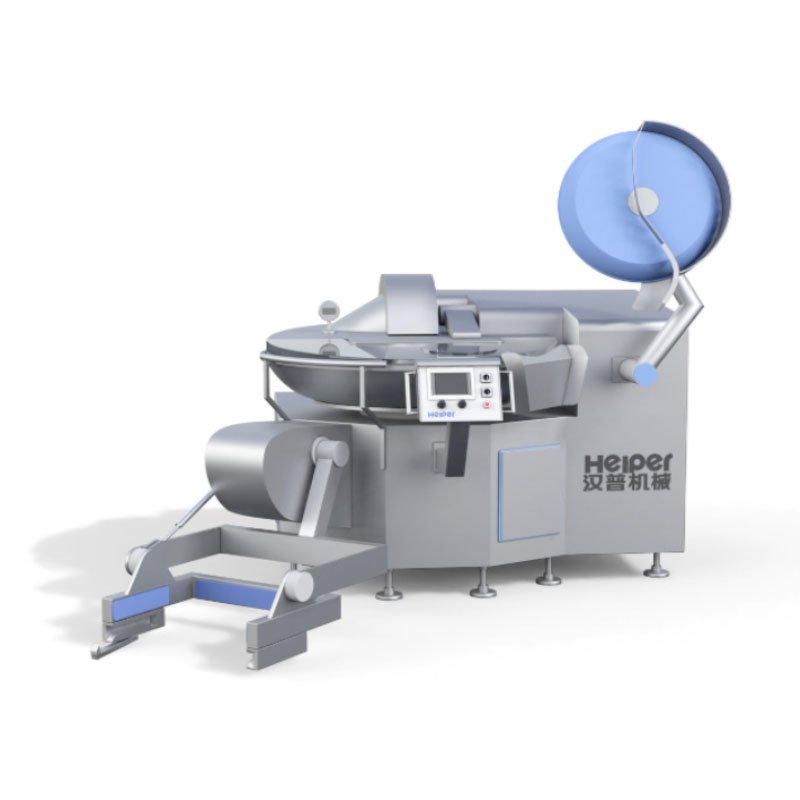

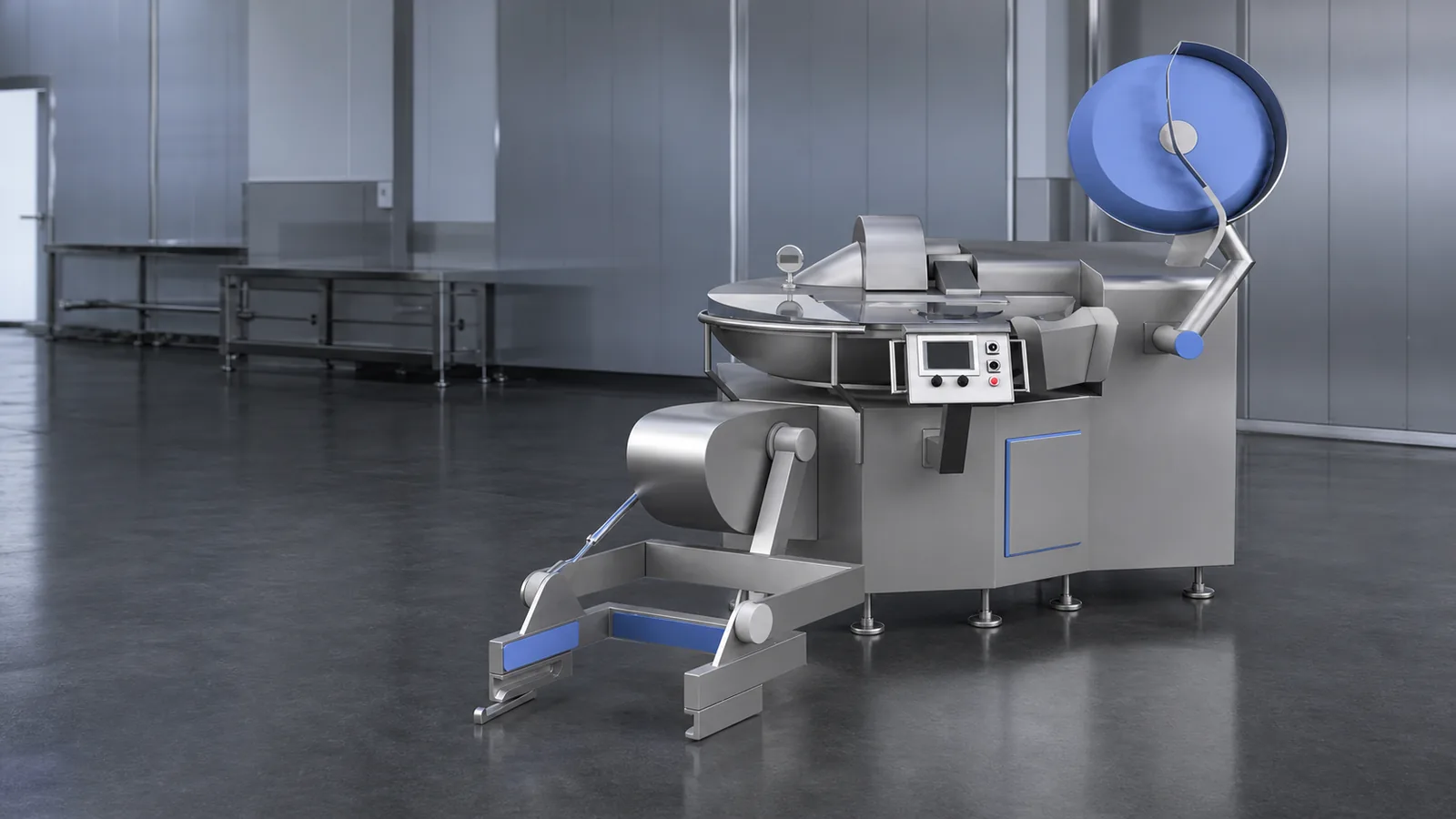

ZB-200 Meat Bowl Cutter
ZB-200: The rotating bowl carries meat, vegetables and seasonings through high-speed knives. Coordinating knife speed, bowl circulation and processing time produces the required particle size and mixture.
View specifications Request a quotation
Cutting, mixing and emulsification
Close cutting clearance
The catalog describes a knife-tip clearance below 2 mm; setup and inspection must follow the delivered machine instructions.

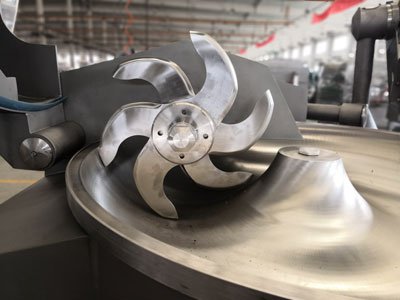

Sealed knife shaft
Two shaft seals protect the bearings and help keep lubricant away from the product zone.
Cleaning access
Stainless construction, a sealed bowl cover and replaceable seals support cleaning between recipes.
2026 product catalog
ZB-200 technical data
| Model | ZB-200 |
|---|---|
| Bowl volume | 200 L |
| Batch productivity | 120–140 kg/batch |
| Power | 60 kW |
| Knives | 6 |
| Knife speed | 400 / 1100 / 2200 / 4500 rpm |
| Bowl speed | 5–16 rpm |
| Unloader | Variable-frequency control |
| Weight | 3350 kg |
| Dimensions | 2650 × 2450 × 1900 mm |
| Process | Atmospheric |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference

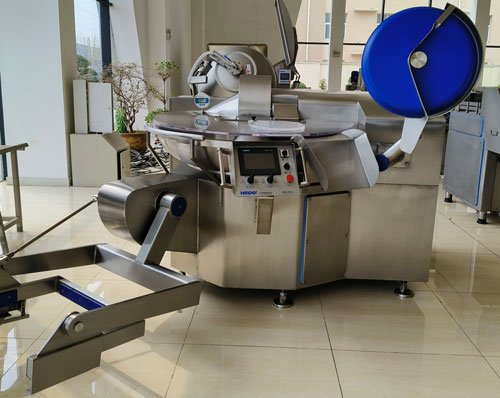

Use this process demonstration together with the model-specific technical schedule above.
Plan your ZB-200 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
Contact HELPER
