Choose the ZKHM-150 mixing-shaft configuration around your finished product. The plate-style shaft shown in the video is intended for knife-cut noodle, mantou and filled steamed bun dough. Compare this configuration with the separate machine photographs and specification sources below.
See mixer bowls, frames, drive assemblies and control components during production. These supplied workshop views provide manufacturing context for the ZKHM-150 product discussion; they show assemblies in progress, rather than a finished-machine dough trial.
English narration and captions · approximately 32 seconds · Watch on YouTube
Rows of mixer bowls and supporting frames with visible drive assemblies during workshop assembly.
A wider view of the production area, with mixer assemblies and separate control panels in the foreground.
The drive-side view shows exposed sprockets, gearbox placement and work in progress.
Mixer frames, bowls and drive components shown from another production-area angle.
The photographs are original workshop records. Exposed transmissions and separate panels show an assembly stage; confirm the final guards, installed shaft, controls and utility arrangement for your ordered configuration.
The plate-style shaft is shown in the main product views and the video. The technical-detail photographs below also document a separately photographed configuration. HELPER specifies this plate-style option for these three dough applications; confirm the shaft configuration when requesting a quotation.

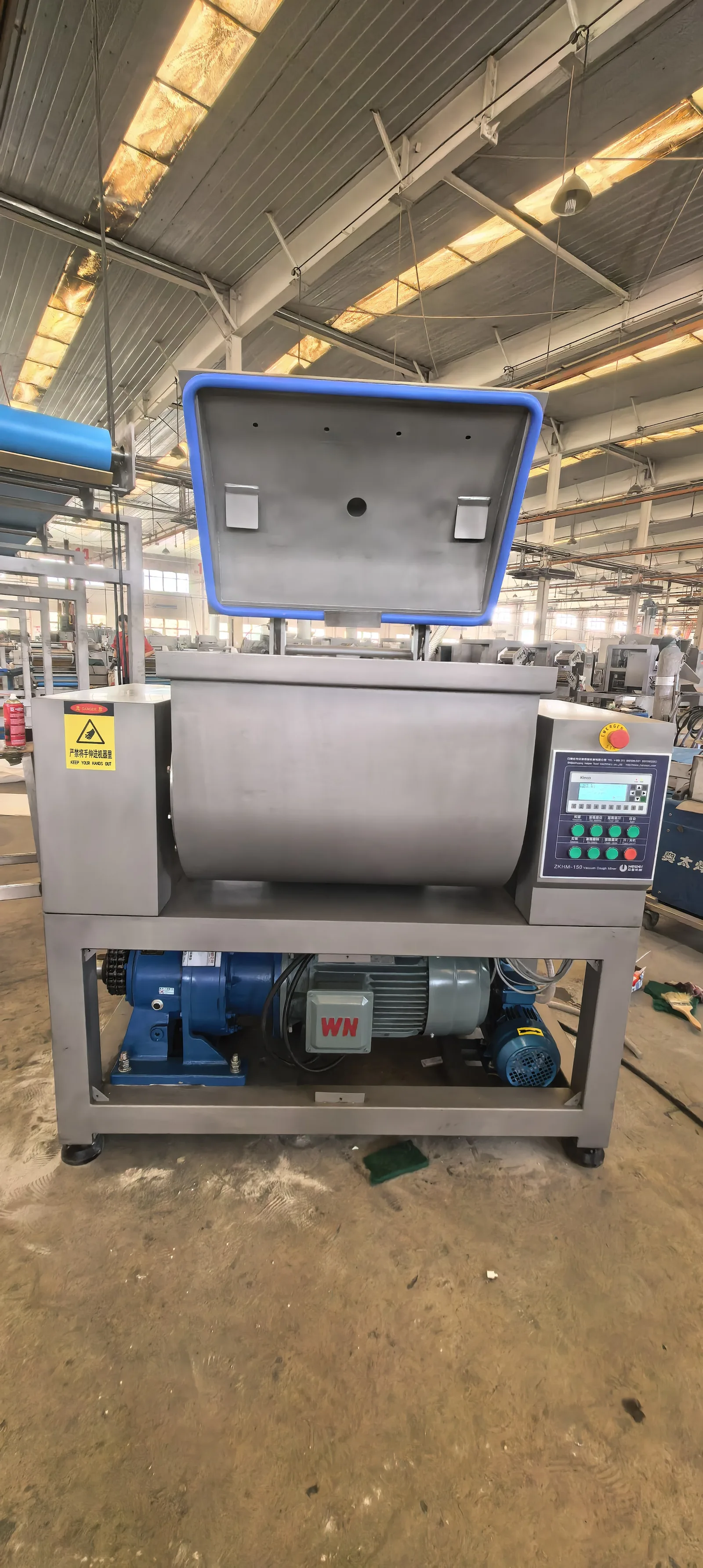

What to watch: inspect the broad plate-style shaft inside the open chamber, then the controls and rear connections. The footage shows the machine structure; it does not demonstrate a dough-production trial.
Discuss the plate-style shaftConfiguration and evidence: the application direction above is specified by HELPER. Recipe suitability, batch load and mixing settings require a product trial. The walk-around uses actual machine footage with an illustrated opening cover. The serial 567 nameplate and January 2026 catalogue below are separate sources; their dimensions, speeds and cycle times are not confirmed specifications for this plate-style variant.
The photographed unit and the January 2026 catalogue agree on model, voltage, power and weight. Overall dimensions differ, so the current machine plate takes priority on this page and the catalogue figure remains disclosed for engineering follow-up.
| Product | Vacuum dough mixer |
|---|---|
| Model | ZKHM-150 |
| Voltage | 380 V |
| Power | 12.8 kW |
| Gross weight | 1,000 kg |
| Overall dimensions | 1500 × 1250 × 1500 mm |
| Manufacturing date | 2026.8 |
These values belong to the photographed serial 567 unit, not a verified specification for the plate-style variant. Use these dimensions for the photographed unit. Utility interfaces, clearance and final layout still require the signed project drawing.
| Dry flour input | 50 kg / batch |
|---|---|
| Published vacuum | -0.08 MPa |
| Published mixing time | 6 min |
| Published paddle speed | 48 rpm |
| Published mixing-bar speed | 88 / 44 rpm |
| Catalogue dimensions | 1340 × 920 × 1375 mm |
Catalogue dimensions do not match the August 2026 nameplate. Confirm whether the project is a standard or configured build before approving foundations, access paths or freight planning.
Each photograph is used as evidence for a specific review point: control, chamber, model identity or rear-side utility arrangement.

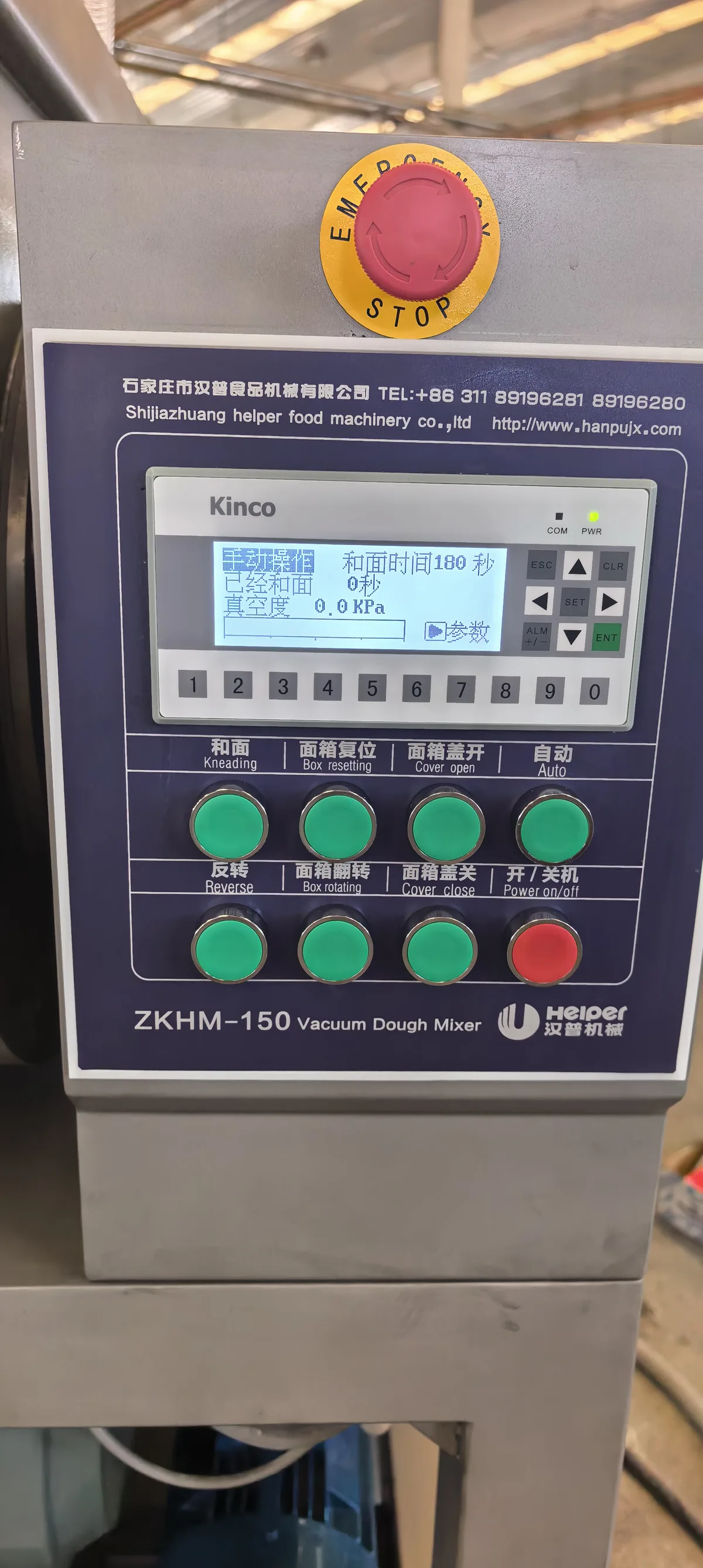

The installed cabinet carries the ZKHM-150 model mark. The touchscreen shows a 180-second kneading time at the moment photographed and a vacuum reading of 0.0 MPa while idle.

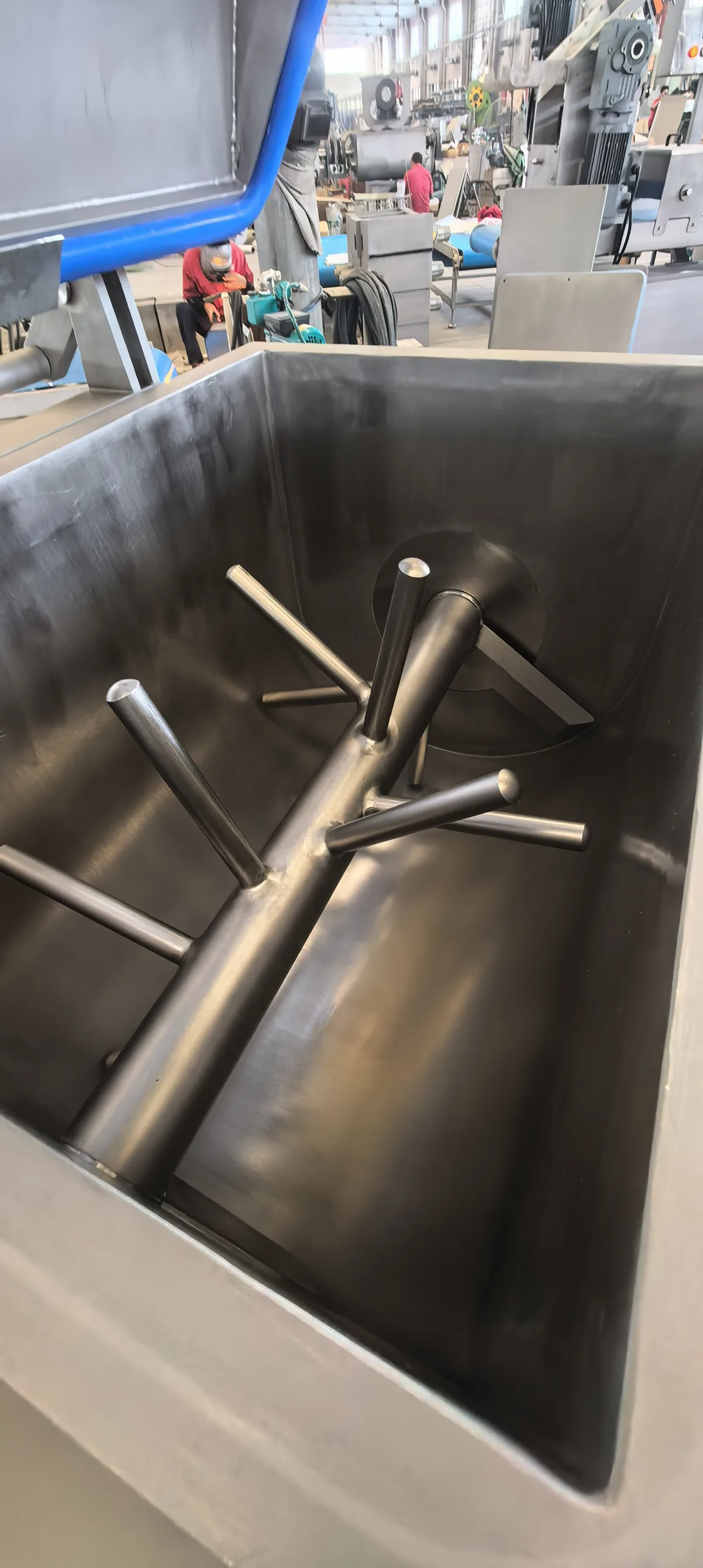

The close view documents the chamber opening and the installed mixing element. It is useful for a preliminary discussion about dough style, loading, discharge and cleaning access.

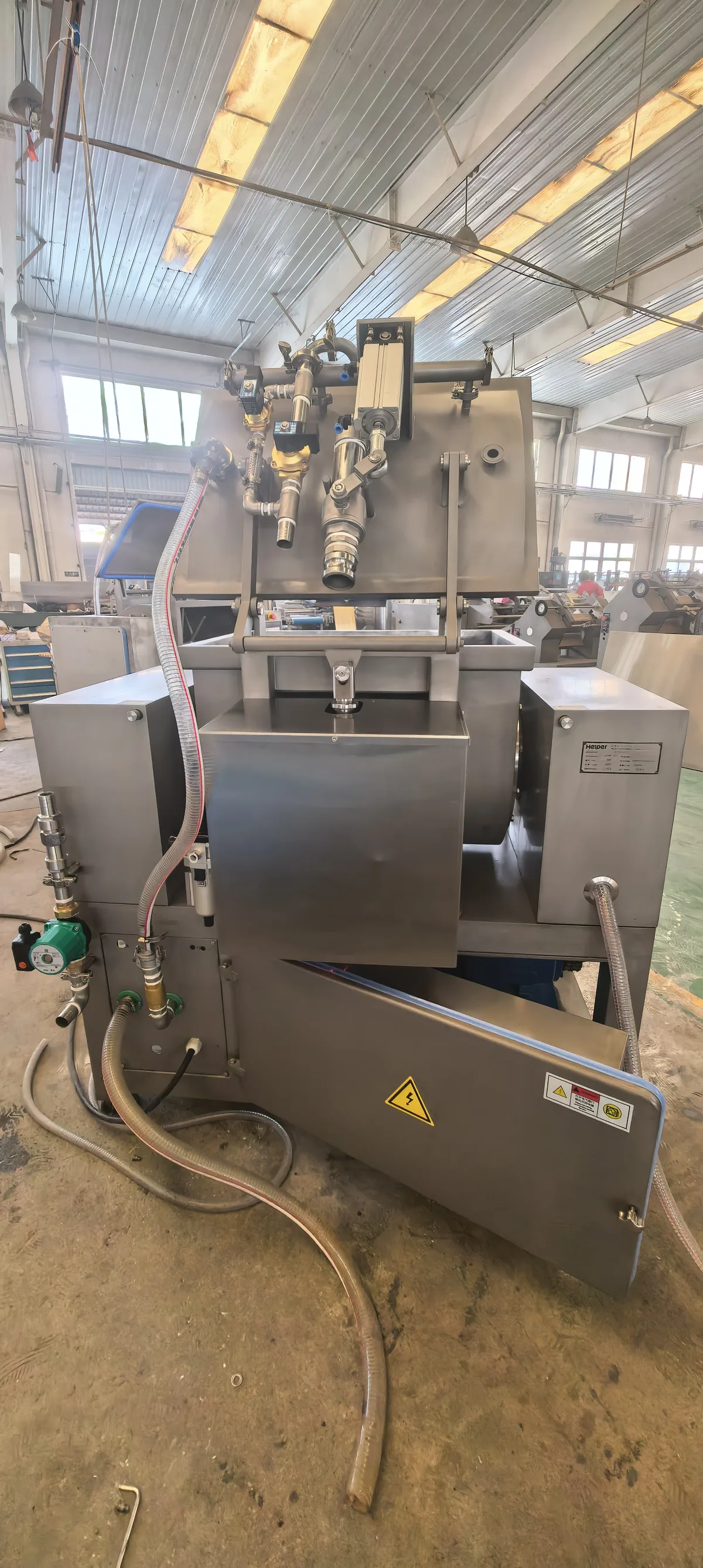

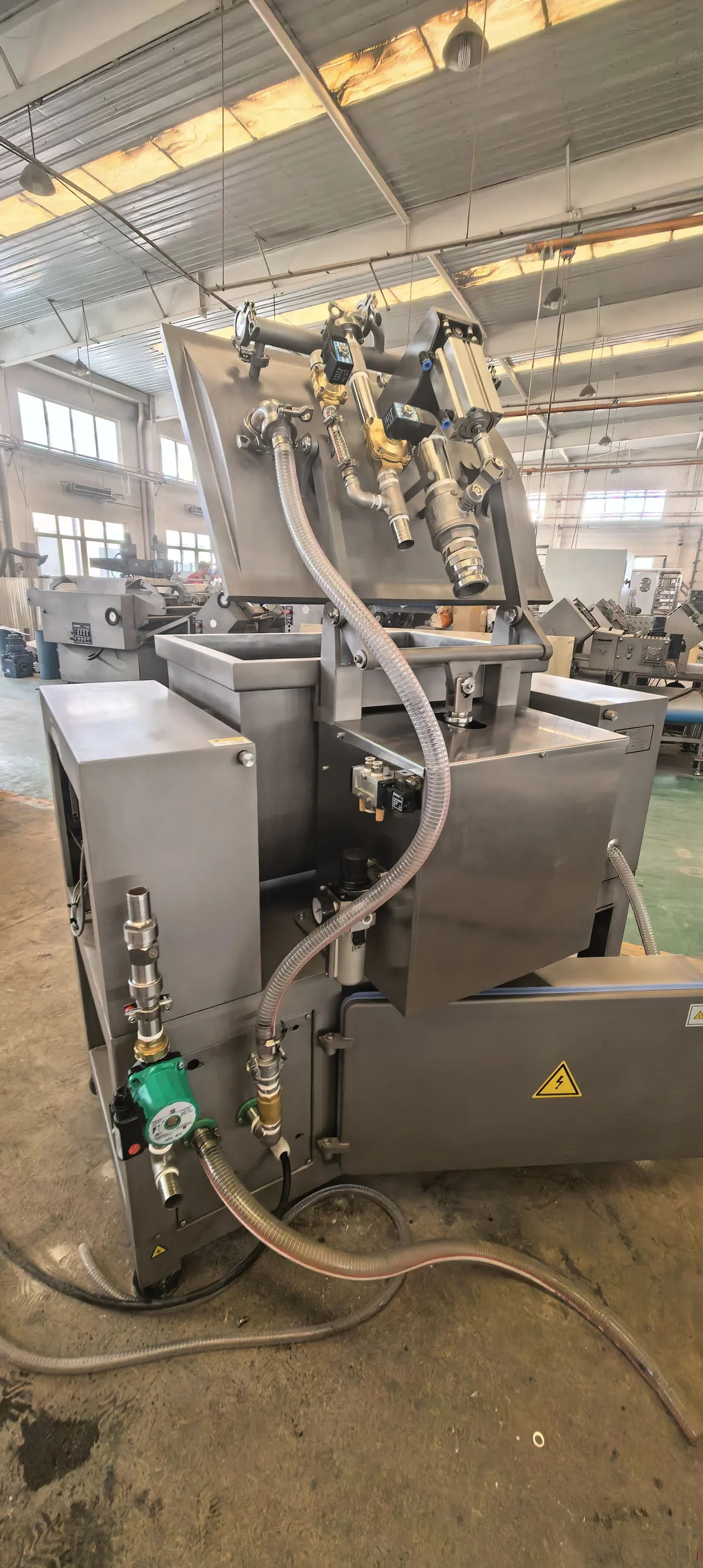

The rear photograph records the as-built placement of the visible vacuum and water-related components. It does not, by itself, establish connection sizes, consumption or purchaser supply boundaries.

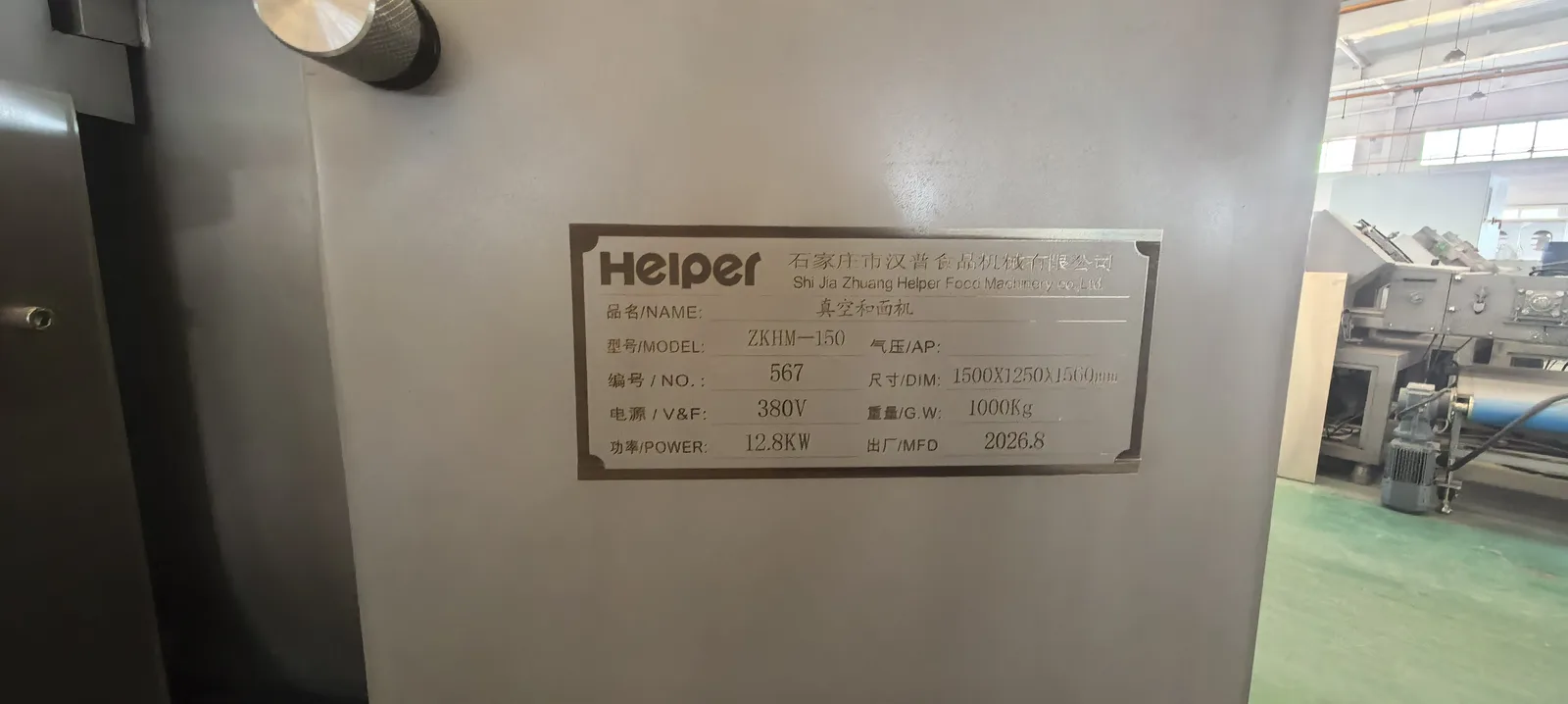

The nameplate is included at readable resolution so the commercial specification can be checked against the machine evidence.
Prepare routine spare parts for the ZKHM-150. Confirm compatibility with your equipment serial number and installed configuration before ordering.
English / Chinese PDF covering shaft-end seals, the mixing bowl lid seal and a proximity switch, with suggested stocking quantities. This is a short reference list, not a complete parts catalogue. Prices and shipping terms are quoted separately.
Download spare parts list (PDF)
Version: 13 October 2026 · English / Chinese · 1 page
The photos are model-specific, but a safe buying decision still needs product trials and signed project documents.
Send your product, recipe range, target batches per hour, destination utilities and required delivery scope. HELPER can then issue the machine-specific configuration and signed technical boundary.
Review alternative batch sizes and the downstream process before confirming one model.
Return to the mixer comparison, including vacuum, bowl-cooled and specialty-dough families.
Check the complete loading, mixing and discharge cycle against downstream demand.
