Vacuum processing
Reduced-pressure tumbling helps distribute marinade while the drum supplies mechanical action.
Products / Vacuum Tumblers / GR-3500II
HELPER · Product specifications

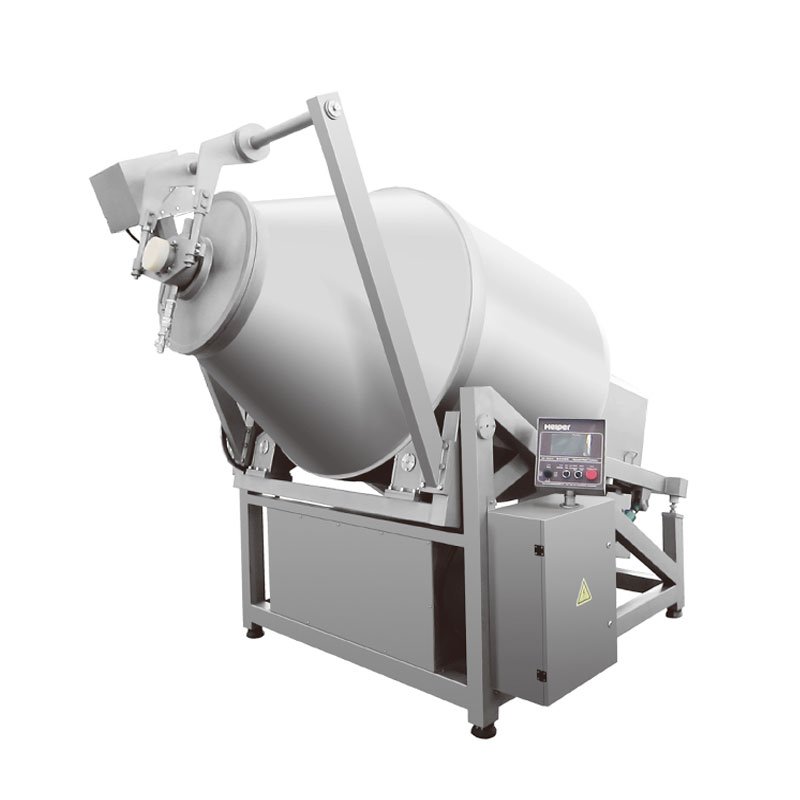

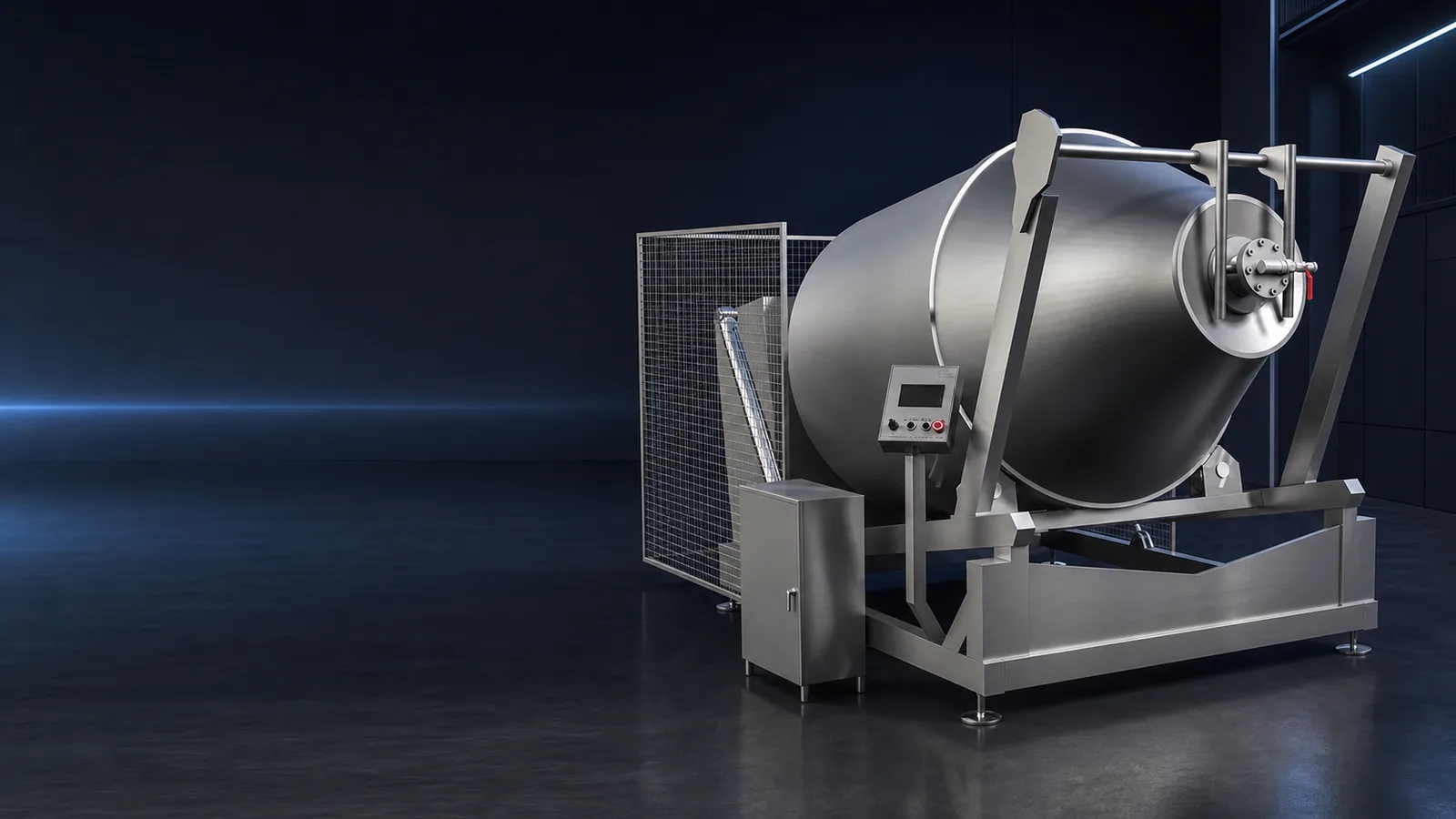

GR-3500II Tilting Vacuum Tumbler
Hydraulic tilting discharge and variable-frequency drum operation for large-batch vacuum marination. Standard and cooling configurations have separate installation schedules.
View specifications Request a quotation
Vacuum marination and tumbling
Repeatable cycles
Set the running and rest sequence around cut size, formulation and the required finished texture.
Stainless construction
The catalog specifies a stainless-steel machine with formed drum end caps and accessible surfaces.
Product temperature
Select the separately listed cooling configuration where the process needs active heat removal.
2026 product catalog
GR-3500II technical data
| Model | GR-3500II |
|---|---|
| Drum volume | 3,500 L |
| Batch capacity | 2,000–2,500 kg/batch |
| Power | 15 kW |
| Drum speed | 2–11 rpm adjustable |
| Vacuum | −0.08 MPa |
| Standard weight | 2300 kg |
| Standard dimensions | 3750 × 2100 × 2550 mm |
| Cooling weight | 2500 kg |
| Cooling dimensions | 3900 × 1900 × 2200 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your GR-3500II configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
