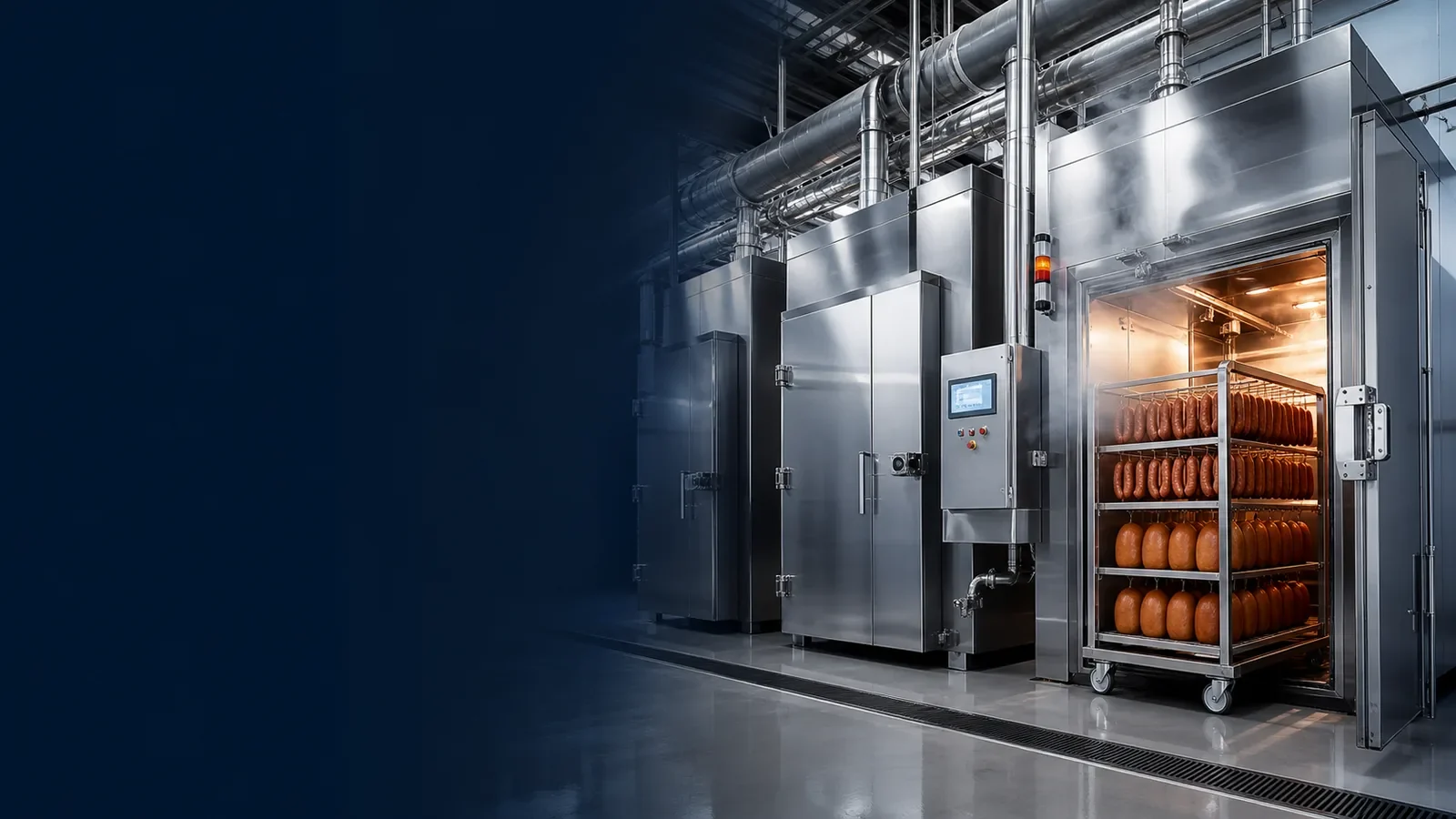

QZX-2000 & TXL Smokehouse Configurations
Large-batch QZX and TXL smokehouse configurations for controlled meat-product thermal processing.
View specifications Request a quotation
Design and operation
Process control
Set the processing sequence for the product and selected heating configuration.
Trolley loading
Use the catalog trolley dimensions when planning loading and installation.
Utilities
Confirm steam circuits and the electrical configuration before installation.
2026 product catalog
QZX-2000 / TXL-250 / TXL-500 technical data
| Model | QZX-2000 / TXL-250 / TXL-500 |
|---|---|
| QZX-2000 capacity / power / weight | 2000 kg/batch; 64.6 kW; 8200 kg |
| QZX-2000 dimensions | 8540 × 1475 × 2500 mm |
| TXL-250 capacity / power / weight | 250 kg/batch; 13.5 kW; 1600 kg |
| TXL-250 dimensions | 2100 × 1500 × 2420 mm |
| TXL-500 capacity / power / weight | 500 kg/batch; 13.5 kW; 2400 kg |
| TXL-500 dimensions | 3200 × 1500 × 2420 mm |
| High-pressure steam | 0.3–0.6 MPa |
| Low-pressure steam | ≤0.1 MPa |
| TXL high-pressure circuit chamber-temperature entry | <90°C |
| Trolley dimensions | 1000 × 1020 × 1860 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Plan your QZX-2000 / TXL-250 / TXL-500 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
