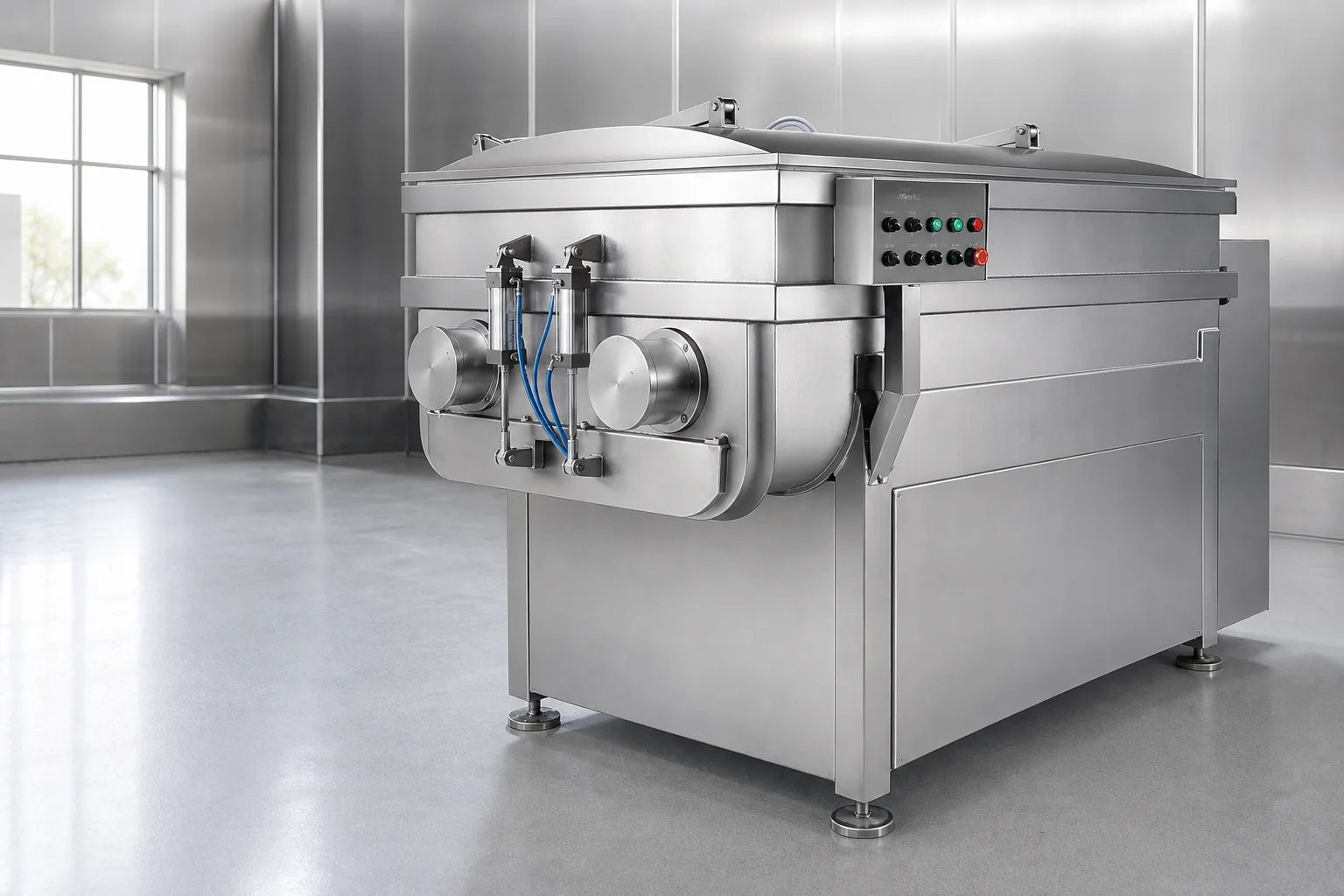

ZKJB-1200 Vacuum Meat Mixer

ZKJB-1200: Parallel shafts and inclined paddles turn ingredients through the trough to distribute meat, vegetables and seasonings. Stainless-steel construction and accessible product-contact surfaces support routine cleaning.

View specifications Request a quotation

ZKJB-1200 Vacuum Meat Mixer — Product configuration and working details.

Twin-shaft ingredient mixing

Even distribution

Inclined paddles move material through the trough and combine ingredients throughout the batch.

Controlled handling

The catalog describes pneumatic lid and discharge-door operation for the production mixing platform.

Vacuum or atmospheric

Choose the JB atmospheric machine or the ZKJB sealed vacuum machine according to the required texture and air removal.

Cooling configuration

Cooling versions have their own weights and installation dimensions. Define the coolant circuit and temperature duty when ordering.

2026 product catalog

ZKJB-1200 technical data

Model	ZKJB-1200
Process	Vacuum mixing
Chamber volume	1,200 L
Mixing speed	20 / 41 rpm
Power	19 kW
Weight	1760 kg
Dimensions	1950 × 1600 × 1930 mm
Usable batch mass	Set by formulation and working fill level; not specified in the catalog table

Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.

Machine and process details

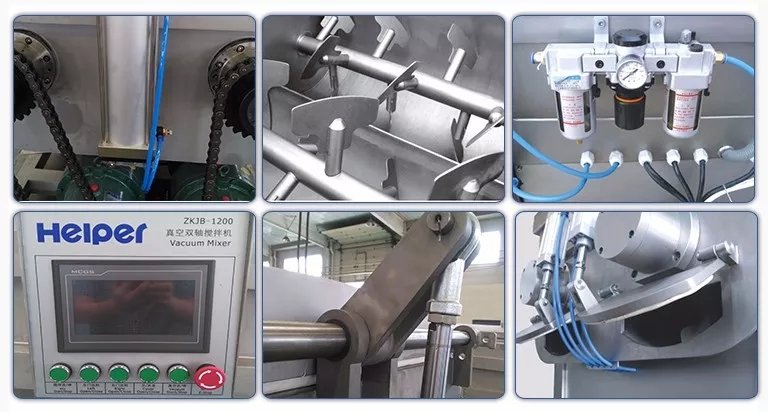

Official HELPER twin-shaft vacuum mixer family detail

Equipment tour

360° Machine View

Watch for the ZKJB-1200 vacuum mixer exterior and construction details from multiple angles. This equipment tour shows the machine exterior and construction details alongside the photographs below.

Watch on YouTube

Production workshop

ZKJB-1200 workshop photos

See the machine from different angles, including the control panel, twin mixing shafts and discharge details. Select a photo to view it larger.

ZKJB-1200 production workshop photograph: side view — Side view

ZKJB-1200 production workshop photograph: mixing paddle detail — Mixing paddle detail

ZKJB-1200 production workshop photograph: mixing chamber interior — Mixing chamber interior

ZKJB-1200 production workshop photograph: discharge cylinders — Discharge cylinders

ZKJB-1200 production workshop photograph: control panel — Control panel

ZKJB-1200 production workshop photograph: air regulator and pressure gauge — Air regulator and pressure gauge

ZKJB-1200 production workshop photograph: twin mixing shafts — Twin mixing shafts

ZKJB-1200 production workshop photograph: discharge mechanism — Discharge mechanism

ZKJB-1200 production workshop photograph: machine overview with lid open — Machine overview with lid open

ZKJB-1200 production workshop photograph: discharge side view — Discharge side view

ZKJB-1200 production workshop photograph: rear view — Rear view

ZKJB-1200 production workshop photograph: operator platform — Operator platform

ZKJB-1200 production workshop photograph: front view — Front view

Plan your ZKJB-1200 configuration

Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
