Stuffed products
The catalog describes meatball production with a filling.
Products / Meat Formers / JXW-200 / JXW-210 / SZT-01
HELPER · Product specifications

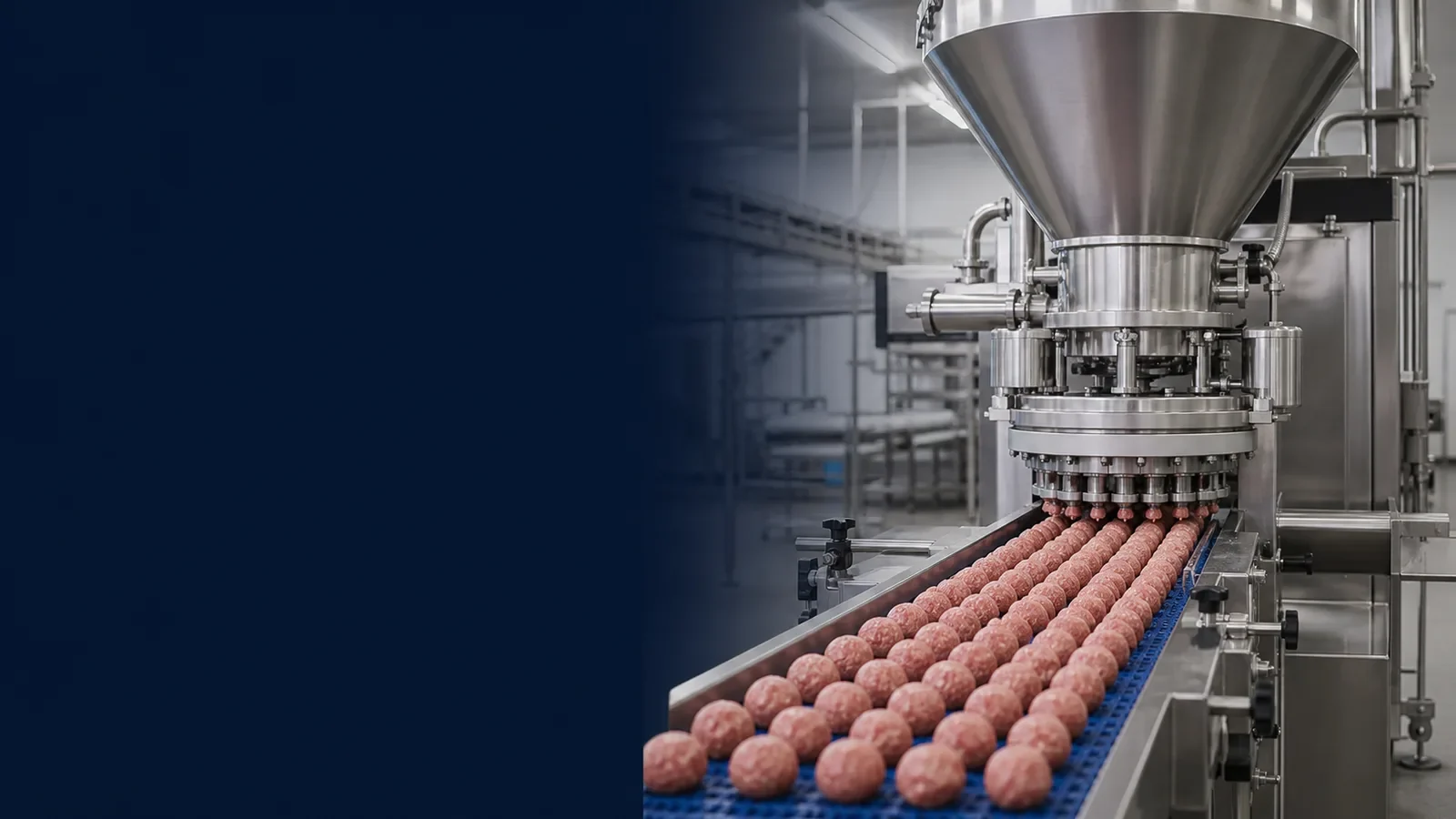

JXW & SZT Stuffed Meatball Machines
Mechanical forming for stuffed fish balls, pork balls, beef balls and other meatball products.
View specifications Request a quotation
Design and operation
Adjustable size
Adjust the size of the outer product and filling.
Mechanical transmission
Mechanical drive controls the forming operation.
Stainless construction
The catalog specifies SUS304 machine construction.
2026 product catalog
JXW-200 / JXW-210 / SZT-01 technical data
| Model | JXW-200 / JXW-210 / SZT-01 |
|---|---|
| JXW-200 speed / power / weight | 100 pieces/min; 1.1 kW; 240 kg |
| JXW-200 dimensions | 800 × 600 × 1750 mm |
| JXW-210 speed / power / weight | 300 pieces/min; 1.5 kW; 200 kg |
| JXW-210 dimensions | Length requires confirmation; width 580 mm; height 1700 mm |
| SZT-01 speed / power / weight | 100–200 pieces/min; 1.5 kW; 200 kg |
| SZT-01 dimensions | 990 × 790 × 1780 mm |
| Electrical supply | 380 V / 50 Hz |
| Construction | SUS304 stainless steel |
The JXW-210 dimension is printed as 110 × 580 × 1700 mm. The length appears anomalous and must be confirmed; it has not been silently changed to 1100 mm.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Plan your JXW-200 / JXW-210 / SZT-01 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
