PLC and touch control
The catalog describes programmable control and a touchscreen for setting the injection process.
Products / Brine Injectors / ZN-50
HELPER · Product specifications

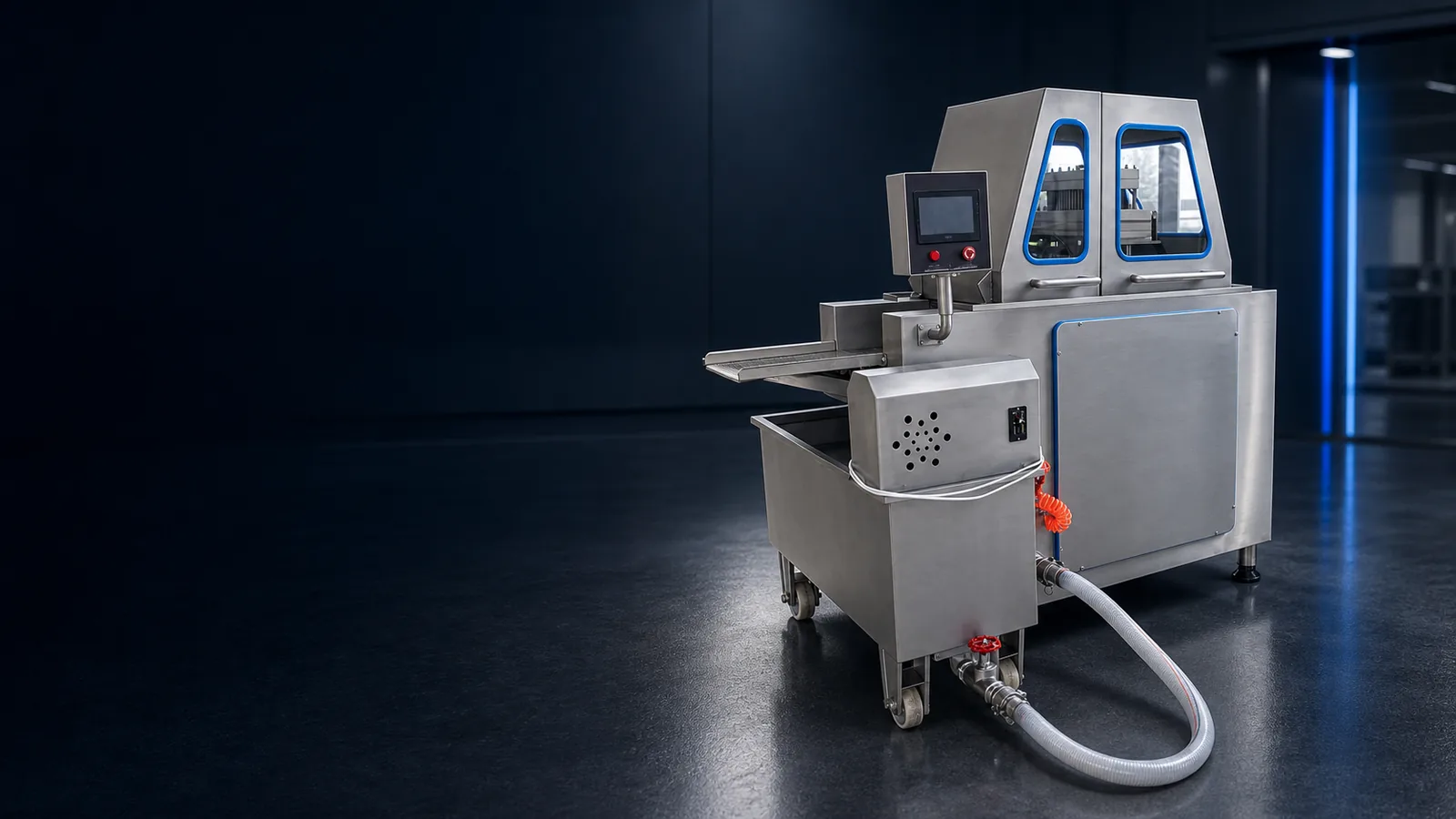

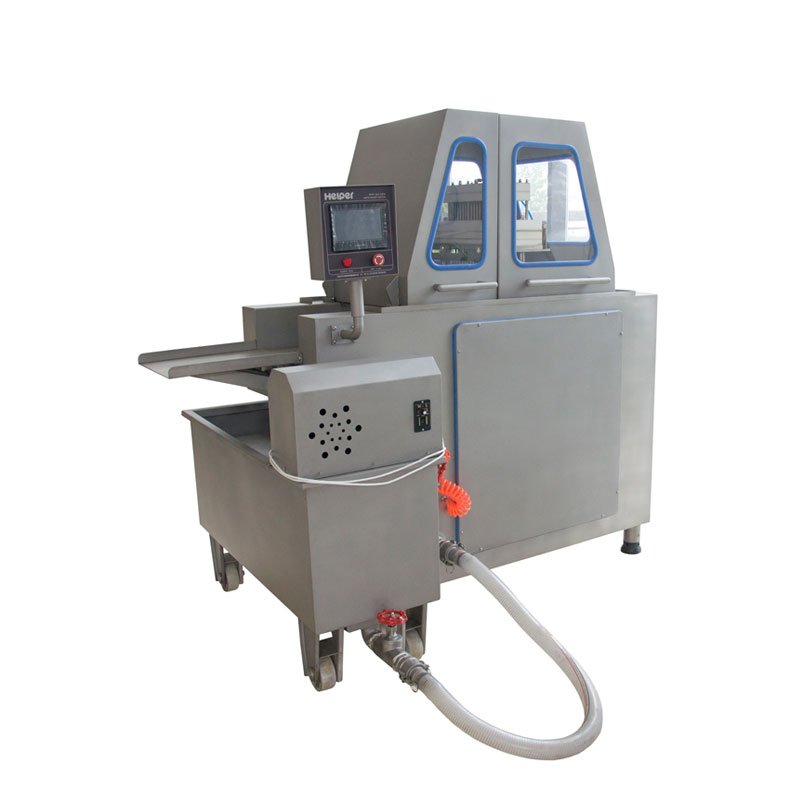

ZN-50 Meat Brine Injector
ZN-50: The injection head distributes brine and curing ingredients into meat before further processing. Injection pressure, stroke frequency and conveyor step distance are selected around product thickness and the intended pickup.
View specifications Request a quotation
Brine injection before tumbling
Adjustable injection
Set pressure and stroke frequency for the product rather than applying one setting to every cut.
Needle protection
The catalog describes needle protection when a hard object is encountered and pneumatic needle cleaning.
Brine preparation
Filtered brine and a mixing tank help maintain an even supply to the injection head.
2026 product catalog
ZN-50 technical data
| Model | ZN-50 |
|---|---|
| Capacity | 600–1,200 kg/h |
| Power | 3.53 kW |
| Injection rate | 30–50% per pass |
| Needles | 50 |
| Injection pressure | 0.4–0.7 MPa |
| Stroke frequency | 15–55 cycles/min |
| Conveyor step | 30–60 mm |
| Product thickness | 30–110 mm |
| Weight | 500 kg |
| Dimensions | 2100 × 600 × 1716 mm |
The catalog Chinese text says three-stage filtration while the English text says double filtration. Confirm filter stages in the supplied brine circuit.
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your ZN-50 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
