Knife and bowl coordination
Select the listed knife and bowl settings for ingredient distribution and the required cutting result.
Products / Bowl Cutters / ZB-20 / ZB-330 / ZB-550 / ZKB-1000
HELPER · Product specifications

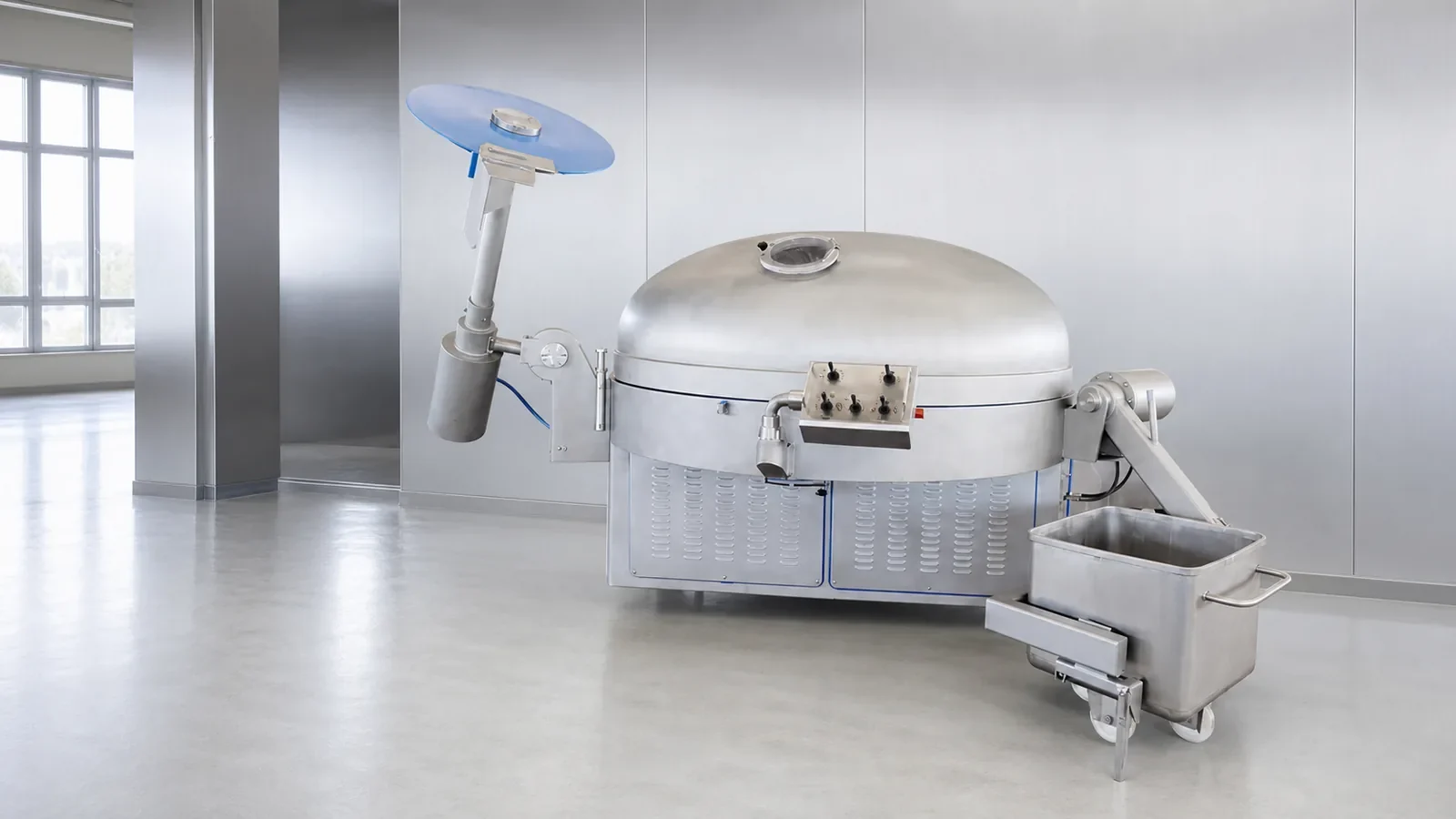

ZB & ZKB Additional Bowl Cutter Sizes
ZB-20 / ZB-330 / ZB-550 / ZKB-1000: The rotating bowl carries meat, vegetables and seasonings through high-speed knives. Coordinating knife speed, bowl circulation and processing time produces the required particle size and mixture.
View specifications Request a quotation
Cutting, mixing and emulsification
Close cutting clearance
The catalog describes a knife-tip clearance below 2 mm; setup and inspection must follow the delivered machine instructions.
Sealed knife shaft
Two shaft seals protect the bearings and help keep lubricant away from the product zone.
Cleaning access
Stainless construction, a sealed bowl cover and replaceable seals support cleaning between recipes.
2026 product catalog
ZB-20 / ZB-330 / ZB-550 / ZKB-1000 technical data
| Model | ZB-20 / ZB-330 / ZB-550 / ZKB-1000 |
|---|---|
| ZB-20 volume / batch / power | 20 L; 10–15 kg/batch; 1.85 kW |
| ZB-20 knives / knife speed | 3; 1650 / 3300 rpm |
| ZB-20 bowl speed | 16 rpm |
| ZB-20 unloader | Not fitted |
| ZB-20 weight / dimensions | 215 kg; 770 × 650 × 980 mm |
| ZB-330 volume / batch / power | 330 L; 200–240 kg/batch; 81 kW |
| ZB-330 knives / knife speed | 6; 300 / 1800 / 3600 rpm |
| ZB-330 bowl speed | 6 / 12 rpm |
| ZB-330 unloader | Variable-frequency control |
| ZB-330 weight / dimensions | 4500 kg; 3360 × 2870 × 2300 mm |
| ZB-550 volume / batch / power | 550 L; 400 kg/batch; 116 kW |
| ZB-550 knives / knife speed | 6; 200 / 1500 / 2200 / 3600 rpm |
| ZB-550 bowl speed | Variable-frequency control |
| ZB-550 unloader | Variable-frequency control |
| ZB-550 weight / dimensions | 5500 kg; 3300 × 3000 × 2200 mm |
| ZKB-1000 volume / batch / power | 1000 L; 800 kg/batch; 226 kW |
| ZKB-1000 knives / knife speed | 6; 200 / 1500 / 2200 / 3600 rpm |
| ZKB-1000 bowl speed | Variable-frequency control |
| ZKB-1000 unloader | Variable-frequency control |
| ZKB-1000 weight / dimensions | 9500 kg; 3600 × 3300 × 1900 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Plan your ZB-20 / ZB-330 / ZB-550 / ZKB-1000 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
