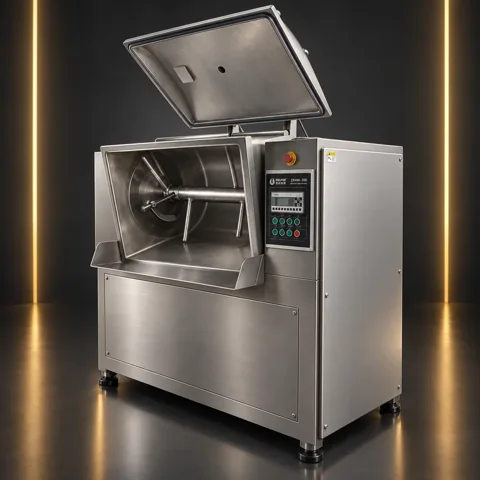

Dough Mixing Unit
Combine the ingredients into the dough condition needed by the next unit. A mixing unit includes the loading and discharge sequence as well as the mixing action; vacuum operation is a selected configuration, not the definition of every mixer.
See upstream & downstream units →
- Input to this unit
- Defined flour batch and liquid additions
- Output to the next unit
- Mixed dough crumbs or a cohesive dough mass
Where this unit connects.
These are typical neighboring operations. The route may omit a unit, use it more than once, or integrate functions into the same frame. The material condition at the handover determines the actual connection.
Why the arrangement changes.
Some sheeted noodle routes leave mixing with separate crumbs, while other dough products need a more cohesive mass. Shaft geometry, loading, recipe and discharge must therefore be discussed together. A mixer selected only by vessel volume can produce the wrong transfer condition or an unsuitable cycle for the line.
The 270, 330, 360, 440, 540, 600, 640, 700 and 800 line-width platforms are starting points for discussion. A width name does not establish this unit’s transfer rate, the usable product width or compatibility with every other module. Review the actual inlet, outlet and controls on the agreed layout.
Define before selecting equipment
- Dry flour versus total dough weight
- Required crumb or dough condition at discharge
- Shaft arrangement, temperature observation and recipe sequence
- Complete loading, mixing, discharge and cleaning cycle
Check the handover in a product trial.
Use the intended flour and formula. Evaluate the discharged material at the first resting or forming operation, not only inside the mixer. Record accepted batches and downstream behavior before setting an output commitment.
Agree the incoming material, sampling method and acceptable outgoing condition before the run. Record what the next unit receives during normal operation and after a stop. An isolated machine demonstration is useful for understanding a mechanism, but it does not prove that the full selected route meets the project target.
Related HELPER equipment and line routes.
The links below lead to existing equipment specifications or complete project routes. A complete-line page is a configuration reference, not evidence that this unit is offered as a separately priced standard machine.
Is this unit required in every line?
No. Select it when its function is required by the intended product and process. Use the process-unit route maps to compare fresh, dried, cooked-frozen and wrapper-sheet examples. The maps show planning relationships, not a universal sequence.
What should the engineering inquiry include?
Send the recipe or representative product sample, current upstream and downstream equipment, proposed width platform, required good output, factory layout and available utilities. State whether you need a standalone machine, a connected section or an addition to an existing line.
Make the connection part of the specification.
Discuss the incoming product, outgoing condition and operating relationship with both neighboring units before the machine scope is finalized.
