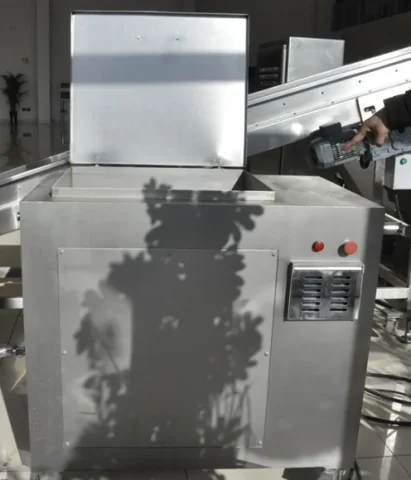

Automatic Water Dosing Unit
Control the quantity of water added to the mixer. Liquid dosing and preparation of a salt solution are separate functions, even when their equipment is connected in one recipe system.
See upstream & downstream units →
- Input to this unit
- Available process water or an approved liquid recipe
- Output to the next unit
- A measured liquid addition to one mixer batch
Where this unit connects.
These are typical neighboring operations. The route may omit a unit, use it more than once, or integrate functions into the same frame. The material condition at the handover determines the actual connection.
Raw-material receiving and preparation are defined before this operation.
Why the arrangement changes.
Dough behavior depends on the formula as well as the machine sequence. An operator target needs a defined measurement basis and a repeatable delivery method. A saltwater tank may prepare the liquid, but that does not establish how accurately the next device doses it.
The 270, 330, 360, 440, 540, 600, 640, 700 and 800 line-width platforms are starting points for discussion. A width name does not establish this unit’s transfer rate, the usable product width or compatibility with every other module. Review the actual inlet, outlet and controls on the agreed layout.
Define before selecting equipment
- Target liquid quantity and addition time
- Water temperature, supply condition and connection
- Whether the duty is plain water or a prepared solution
- Dose verification method and mixer-start coordination
Check the handover in a product trial.
Compare the requested amount with an independently measured delivery over repeated batches. Include an interrupted addition and restart in the review. Do not assume two displayed targets mean two simultaneous outlets.
Agree the incoming material, sampling method and acceptable outgoing condition before the run. Record what the next unit receives during normal operation and after a stop. An isolated machine demonstration is useful for understanding a mechanism, but it does not prove that the full selected route meets the project target.
Related HELPER equipment and line routes.
The links below lead to existing equipment specifications or complete project routes. A complete-line page is a configuration reference, not evidence that this unit is offered as a separately priced standard machine.
Is this unit required in every line?
No. Select it when its function is required by the intended product and process. Use the process-unit route maps to compare fresh, dried, cooked-frozen and wrapper-sheet examples. The maps show planning relationships, not a universal sequence.
What should the engineering inquiry include?
Send the recipe or representative product sample, current upstream and downstream equipment, proposed width platform, required good output, factory layout and available utilities. State whether you need a standalone machine, a connected section or an addition to an existing line.
Make the connection part of the specification.
Discuss the incoming product, outgoing condition and operating relationship with both neighboring units before the machine scope is finalized.
