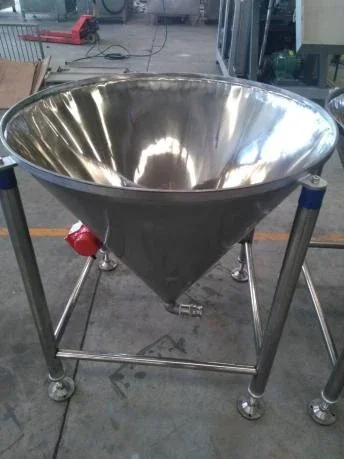

Automatic Flour Feeding Unit
Move the dry ingredient from its loading position to a compatible dough mixer. Transfer is a different duty from weighing: a feeding system does not automatically define or verify the recipe batch.
See upstream & downstream units →
- Input to this unit
- Released flour at the loading point
- Output to the next unit
- Flour delivered to the mixer charging connection
Where this unit connects.
These are typical neighboring operations. The route may omit a unit, use it more than once, or integrate functions into the same frame. The material condition at the handover determines the actual connection.
Raw-material receiving and preparation are defined before this operation.
Why the arrangement changes.
The route starts with the flour source, loading access and mixer connection. A vacuum-assisted feeder uses the agreed negative-pressure arrangement; it is not interchangeable with every pneumatic conveying system. A different flour, longer transfer route or changed mixer cycle can require a new feeding review.
The 270, 330, 360, 440, 540, 600, 640, 700 and 800 line-width platforms are starting points for discussion. A width name does not establish this unit’s transfer rate, the usable product width or compatibility with every other module. Review the actual inlet, outlet and controls on the agreed layout.
Define before selecting equipment
- Flour type, dry-flour batch and charging window
- Loading height, pipe route, bends and connection positions
- How the flour quantity is weighed and verified
- Mixer-ready permission, interrupted feed and cleanout access
Check the handover in a product trial.
Run representative flour through the proposed route and record delivered quantity, residual material, charging time and the transition into mixing. Agree the weighing boundary separately if the feeder is offered only for transfer.
Agree the incoming material, sampling method and acceptable outgoing condition before the run. Record what the next unit receives during normal operation and after a stop. An isolated machine demonstration is useful for understanding a mechanism, but it does not prove that the full selected route meets the project target.
Related HELPER equipment and line routes.
The links below lead to existing equipment specifications or complete project routes. A complete-line page is a configuration reference, not evidence that this unit is offered as a separately priced standard machine.
Is this unit required in every line?
No. Select it when its function is required by the intended product and process. Use the process-unit route maps to compare fresh, dried, cooked-frozen and wrapper-sheet examples. The maps show planning relationships, not a universal sequence.
What should the engineering inquiry include?
Send the recipe or representative product sample, current upstream and downstream equipment, proposed width platform, required good output, factory layout and available utilities. State whether you need a standalone machine, a connected section or an addition to an existing line.
Make the connection part of the specification.
Discuss the incoming product, outgoing condition and operating relationship with both neighboring units before the machine scope is finalized.
