Small Corrugated Rolling Unit

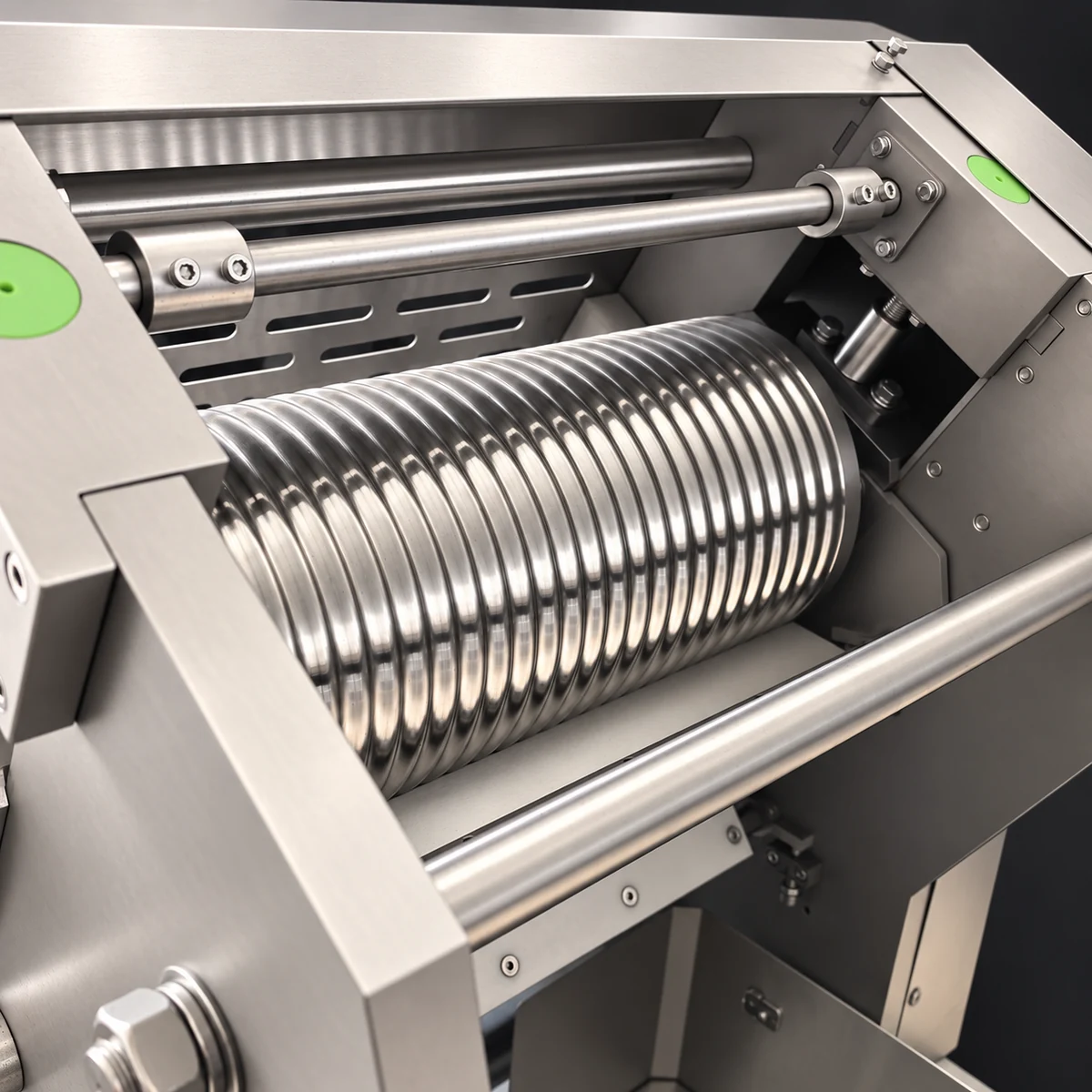

A standalone corrugated rolling unit with the fine, closely spaced wave profile shown in the detail image. Review the small corrugation class for its intended working duty and its connection to the next operation.
Discuss this unit
- Wave class
- Small — Fine, closely spaced rounded waves
- Supply concept
- One individually specified rolling unit
What distinguishes the small-wave version?
The small-wave roller has the densest visible corrugations among the three supplied profile references. The closer spacing distinguishes it from the broader medium and large patterns. Small refers to the corrugations; it does not mean that the machine has a smaller working width or a lower drive requirement.
A fine wave pattern is not automatically a smooth finishing roller. If the next operation needs a particular flatness, thickness or surface condition, define that requirement separately. The agreed route may include another rolling or conditioning step before cutting or forming.
The numerical pitch, wave depth, roller diameter and usable working width belong in the approved drawing. They are not read from the illustration.
The working function.
A corrugated rolling stage works an incoming dough band through the selected roller arrangement and gap. Its contribution must be assessed together with the dough condition, feed behavior and the next operation. A wave-class name is not a recipe, a final thickness setting or a complete-line specification.

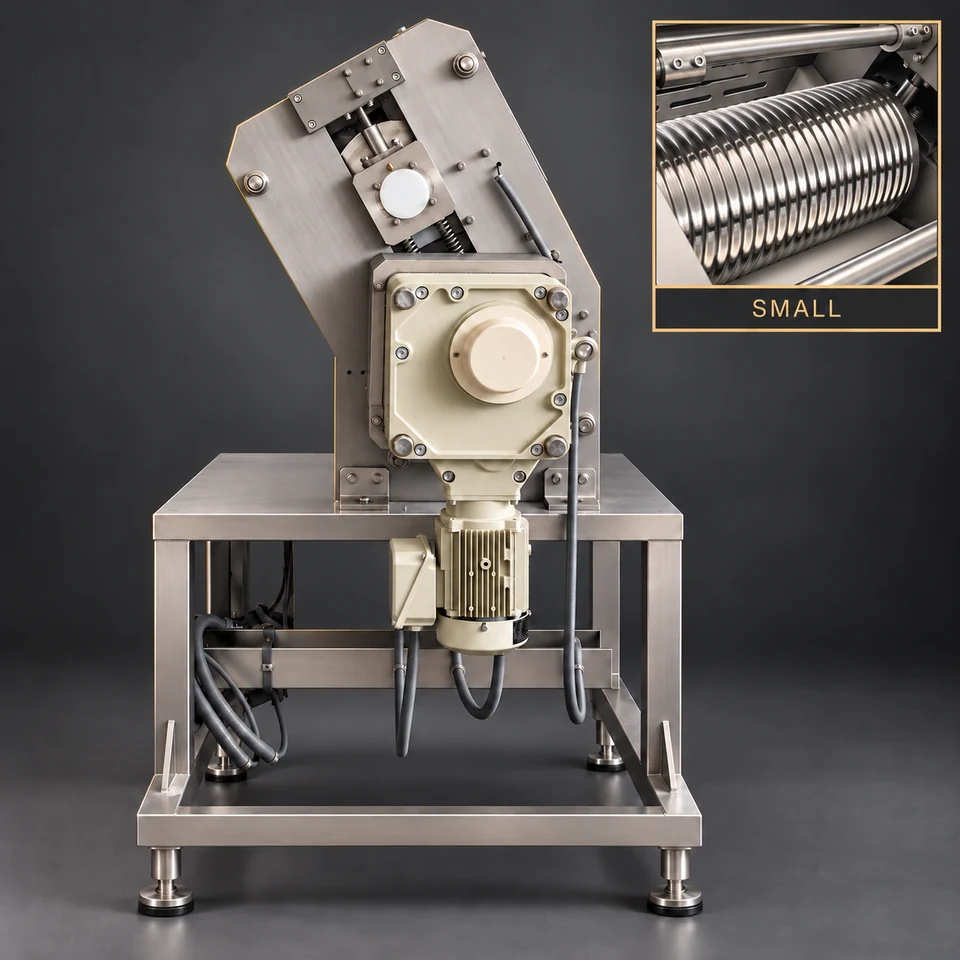

The illustrated unit has a sloping roller support body, adjustment and spring assemblies, a geared drive and motor, and a supporting frame. Confirm the operating access, guarding and installation arrangement for the supplied configuration.
Connections before and after.
Upstream equipment may deliver an initial band from a compound sheeter, a rested sheet or the output of another rolling stage. Define the incoming width, support and dough condition at that handover.
Downstream equipment may be another rolling or conditioning station, followed by cutting or forming where the route requires it. Match transfer height, alignment and coordinated operation. The three wave classes do not impose a universal large–medium–small sequence.
What to check in a product trial.
Inspect the outgoing sheet closely enough to distinguish a regular fine imprint from sticking or material damage. Check both edges and the handover to the following station. Evaluate the sheet at the specified downstream sampling point; a close-pitch roller image alone does not prove the required finished-noodle texture.
Agree the required outgoing condition before the run. Keep the incoming recipe and material condition visible in the trial record, and include normal feeding as well as stop-and-restart observations.
Information needed for selection.
- Intended noodle, wrapper or other dough-sheet product
- Recipe range and incoming band condition
- Required outgoing condition and next machine
- Usable width, layout and transfer heights
- Electrical supply, controls and operating access
- Drawing-confirmed roller profile and included assemblies
Power, dimensions, operating range and accepted output are confirmed for the selected configuration. Do not transfer a capacity or setting from another unit.
Compare the other wave classes.
- Large corrugated rolling unit — Broad, widely spaced rounded waves
- Medium corrugated rolling unit — Intermediate rounded-wave spacing
Does “small” describe the size of the whole machine?
No. Here it identifies the corrugation class shown in the roller detail. Overall dimensions and working width are separate specifications.
Is the same roller suitable for every dough recipe?
Suitability follows the intended working duty and product trial. Confirm the roller profile and interfaces using representative dough rather than choosing from the label alone.
Define this working stage in your route.
Send the dough sample or recipe range, the machine before and after this stage, and the outgoing band you need.
Request a configuration review
