Direct frozen-meat processing
The JR-D family is described for frozen meat; confirm the block size and temperature for the selected cutting set.
Products / Meat Grinders / JR-D200
HELPER · Product specifications

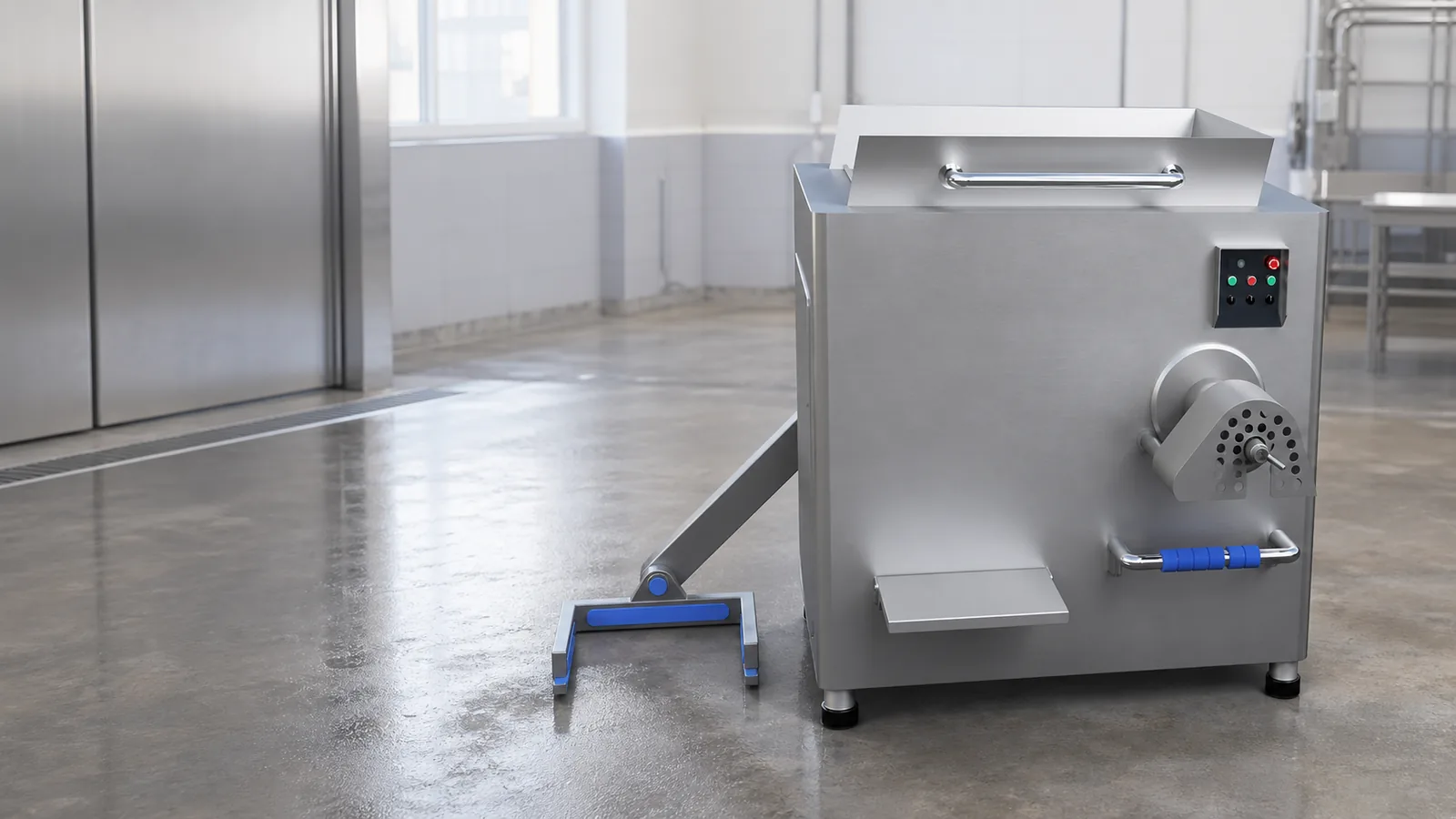

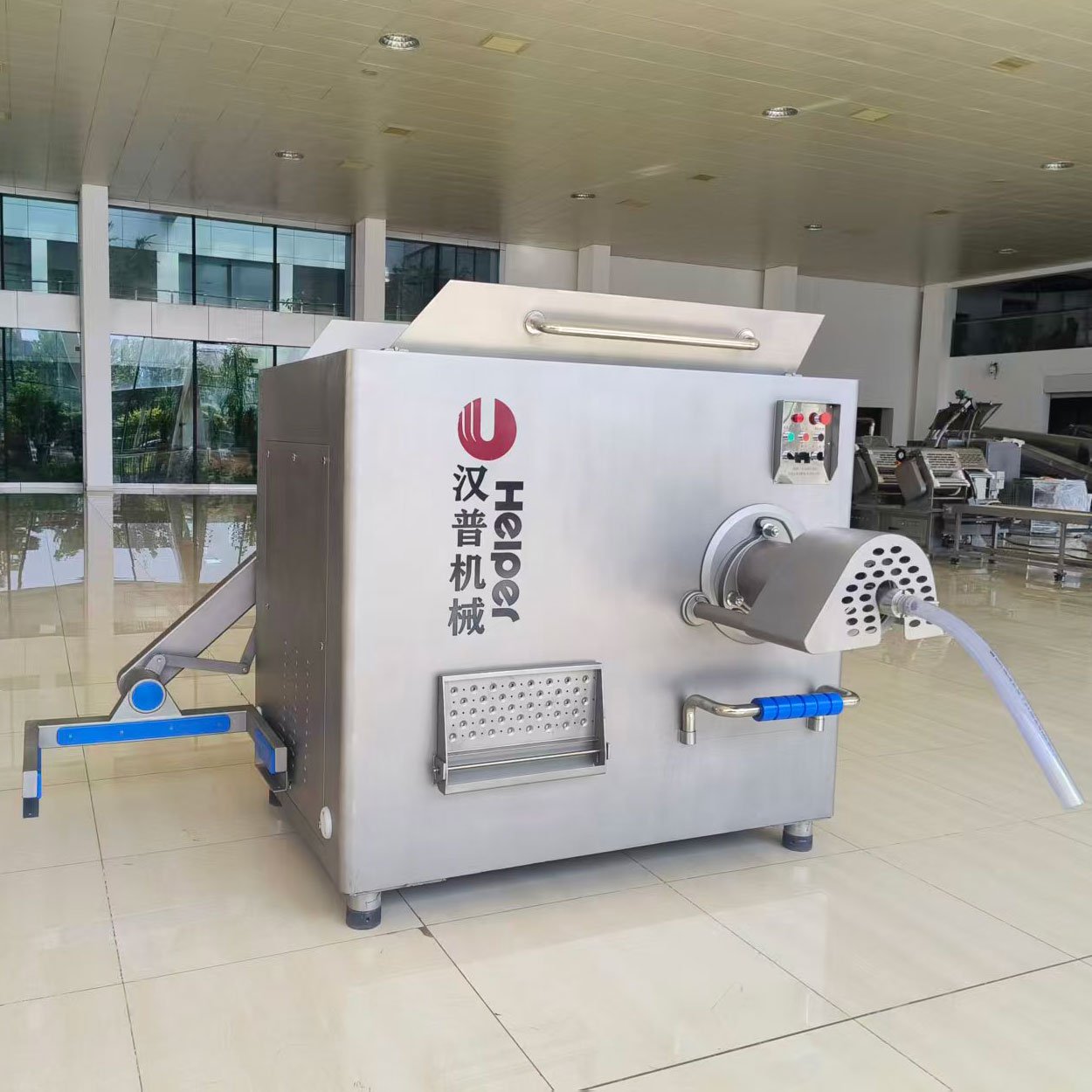

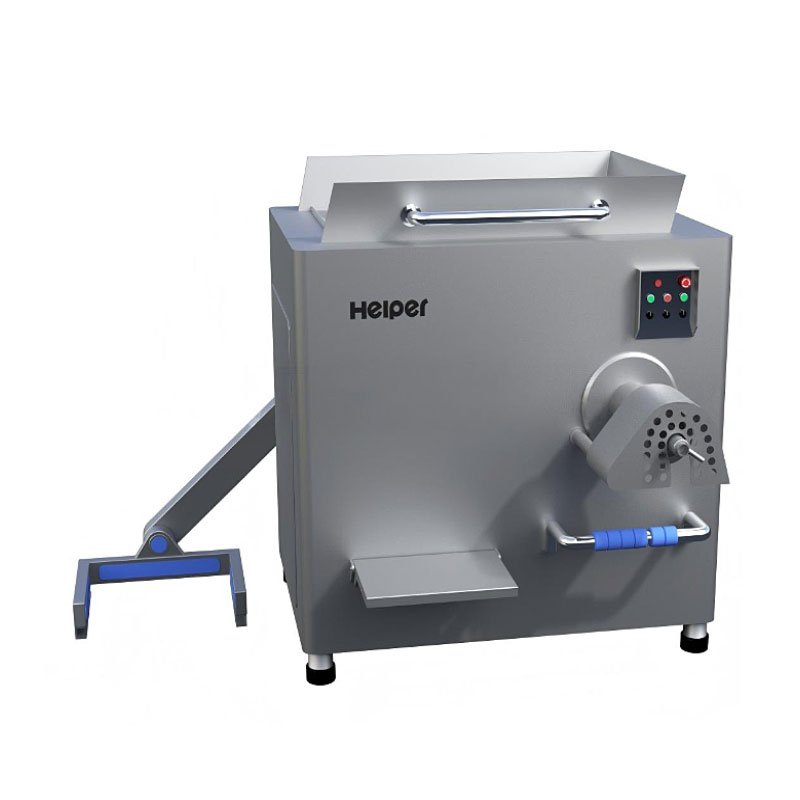

JR-D200 Frozen Meat Grinder
JR-D200: The screw feeds meat into the cutting set to produce particles for downstream mixing or bowl cutting. The catalog specifies stainless-steel construction and a large feed opening for continuous material transfer.
View specifications Request a quotation
Frozen-meat preparation
Particle preparation
Select the plate and knife arrangement around the downstream texture and throughput target.
Integrated hopper and feed path
The catalog joins the hopper and material path to support smooth feeding.
Cleaning and changeover
Accessible stainless-steel product-contact parts support cleaning and cutting-set maintenance.
2026 product catalog
JR-D200 technical data
| Model | JR-D200 |
|---|---|
| Productivity | 2–4 t/h |
| Power | 40 kW |
| Electrical supply | 380 V / 50 Hz |
| Rotation speed | 70 / 200 rpm |
| Weight | 1800 kg |
| Dimensions | 2550 × 1970 × 1800 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Plan your JR-D200 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
