PLC and touch control
The catalog describes programmable control and a touchscreen for setting the injection process.
Products / Brine Injectors / ZN-120
HELPER · Product specifications

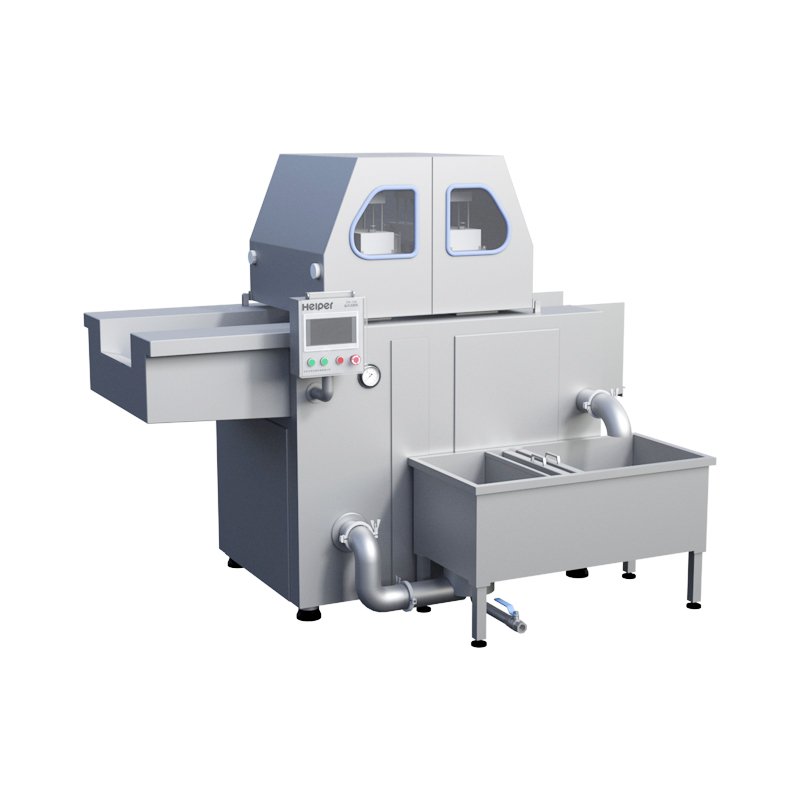

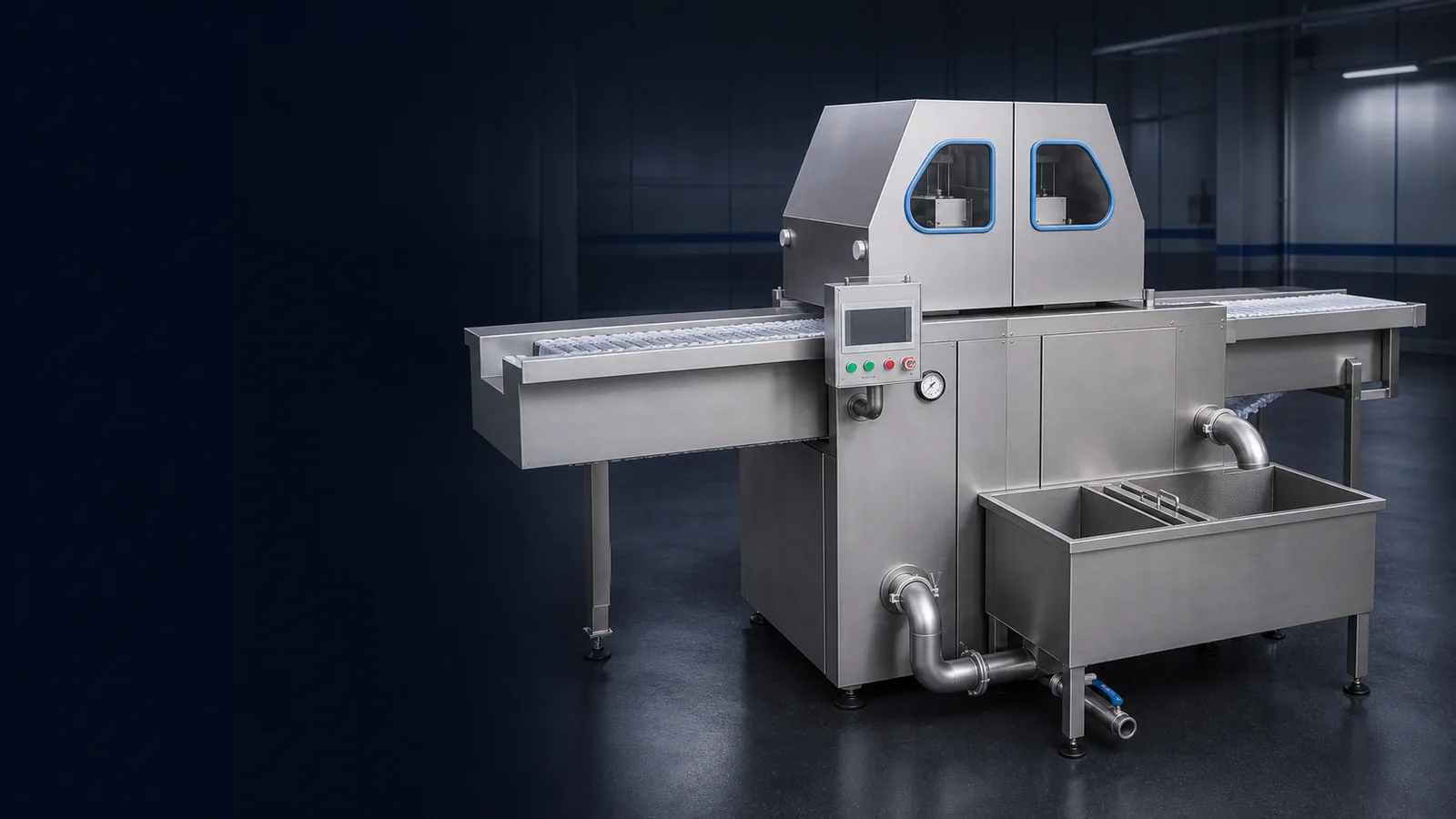

ZN-120 Meat Brine Injector
ZN-120: The injection head distributes brine and curing ingredients into meat before further processing. Injection pressure, stroke frequency and conveyor step distance are selected around product thickness and the intended pickup.
View specifications Request a quotation
Brine injection before tumbling
Adjustable injection
Set pressure and stroke frequency for the product rather than applying one setting to every cut.
Needle protection

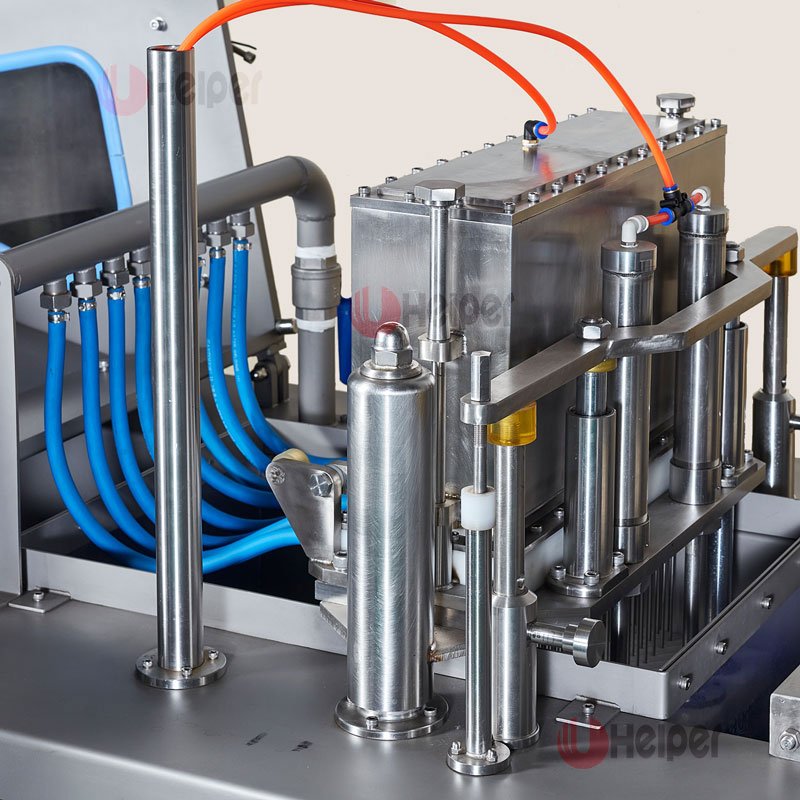

The catalog describes needle protection when a hard object is encountered and pneumatic needle cleaning.
Brine preparation
Filtered brine and a mixing tank help maintain an even supply to the injection head.
2026 product catalog
ZN-120 technical data
| Model | ZN-120 |
|---|---|
| Capacity | 1,200–2,500 kg/h |
| Power | 12.1 kW |
| Injection rate | 30–50% per pass |
| Needles | 120 |
| Injection pressure | 0.4–0.7 MPa |
| Air pressure | 0.4–0.7 MPa |
| Stroke frequency | 10–32 cycles/min |
| Conveyor step | 50–100 mm |
| Product thickness | Less than 190 mm |
| Stroke | 190 mm |
| Weight | 1500 kg |
| Dimensions | 2300 × 1600 × 1900 mm |
Capacity depends on the material and process. Confirm the selected configuration, utilities and acceptance conditions in the quotation.
Machine and process details
Operating reference
Use this process demonstration together with the model-specific technical schedule above.
Plan your ZN-120 configuration
Send the product, incoming condition, required output and available factory space. Include the required electrical supply and the machines before and after this operation.
