Dust collection
The enclosed loading area and upper extraction assembly provide the dust-control stage during ingredient loading. Match the collection arrangement and airflow to the material, loading method and installation.
Powder preparation unit
Dust-Controlled Vibrating Sifter with Hopper
Dust collection, vibrating screening and a storage hopper in one integrated station. Prepare flour or a specified dry ingredient before transfer into the next processing step.
Discuss your powder-handling unit
- Integrated duties
- Dust collection · Vibrating screening · Material storage
- Material route
- Load dry ingredient → screen → collect in the hopper → discharge
Three functions, one station
Combine powder preparation and collection.
Vibrating screening
The circular vibrating screen sits directly beneath the loading enclosure. Select the screen opening and screening arrangement for the powder and the separation required before downstream processing.
Storage hopper
The lower hopper receives screened material and provides local holding before discharge. Agree the usable volume, outlet connection and emptying method around the next machine.
Equipment layout
Follow the material through the unit.
Introduce the specified dry ingredient at the upper loading chamber. Material passes through the vibrating screen and is collected in the hopper below. Dust collection is integrated around the loading stage, bringing these three duties into one equipment footprint.

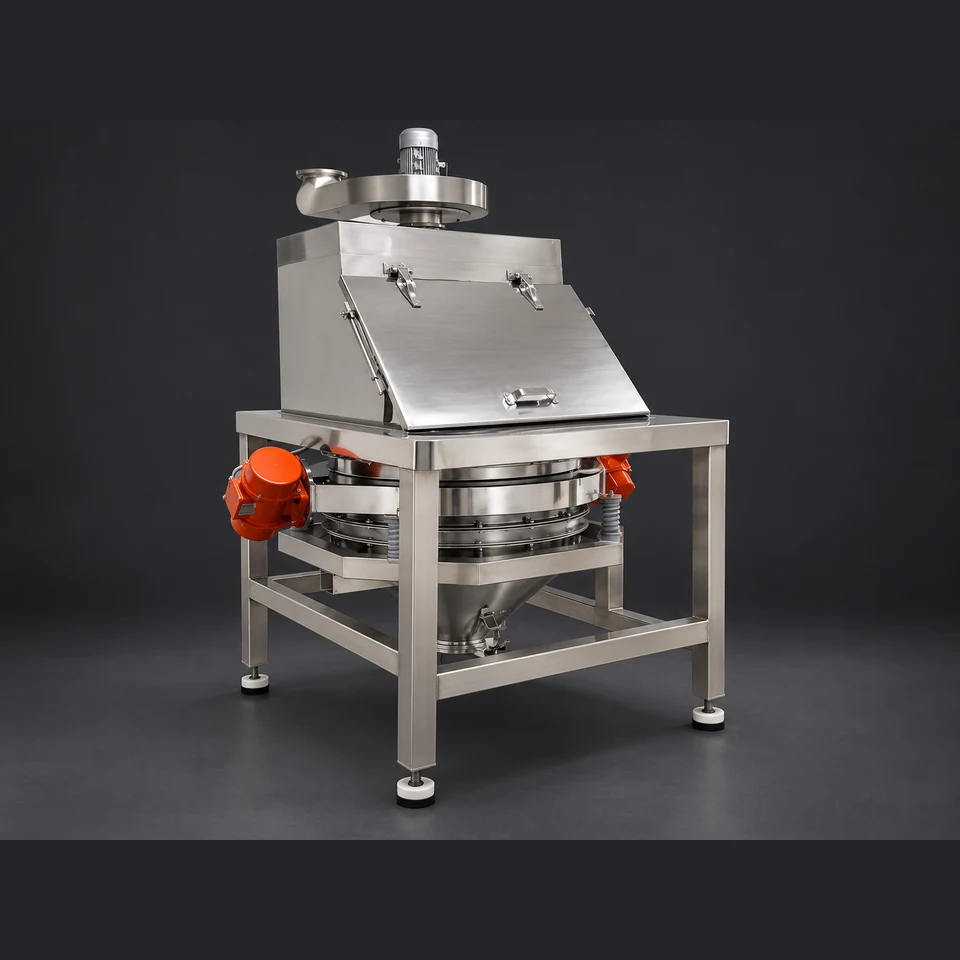

The reference machine has a sloping access lid with clamps and a handle, an upper extraction housing, side-mounted vibration motors and a stainless support frame. The loading height and space for opening the lid belong in the installation layout.
Connect it to your ingredient route.
Define whether operators load bags, containers or another agreed supply. At the outlet, specify the receiving container, transfer connection or feeding equipment needed for the next process.
Explore the automatic flour feeding unit →
Review the dough mixing unit →
Confirm the transfer and batching arrangement separately when connecting the hopper to a mixer.
Configure the screen, collection and storage together.
- Ingredient type, bulk density and flow characteristics
- Required processing rate and loading frequency
- Screen opening and intended separation
- Hopper holding volume and outlet height
- Dust-collection arrangement and filter access
- Electrical supply, controls and available floor space
Use a representative material trial.
Check how the ingredient enters the loading chamber, passes the selected screen and discharges from the hopper. Review retained material and the downstream powder condition against the agreed requirement.
Confirm access for inspecting the screen, emptying the hopper and servicing the collection assembly. Capacity, power, screen specification and hopper volume are confirmed for the supplied configuration.
Installed equipment reference
Plan the working space around the machine.

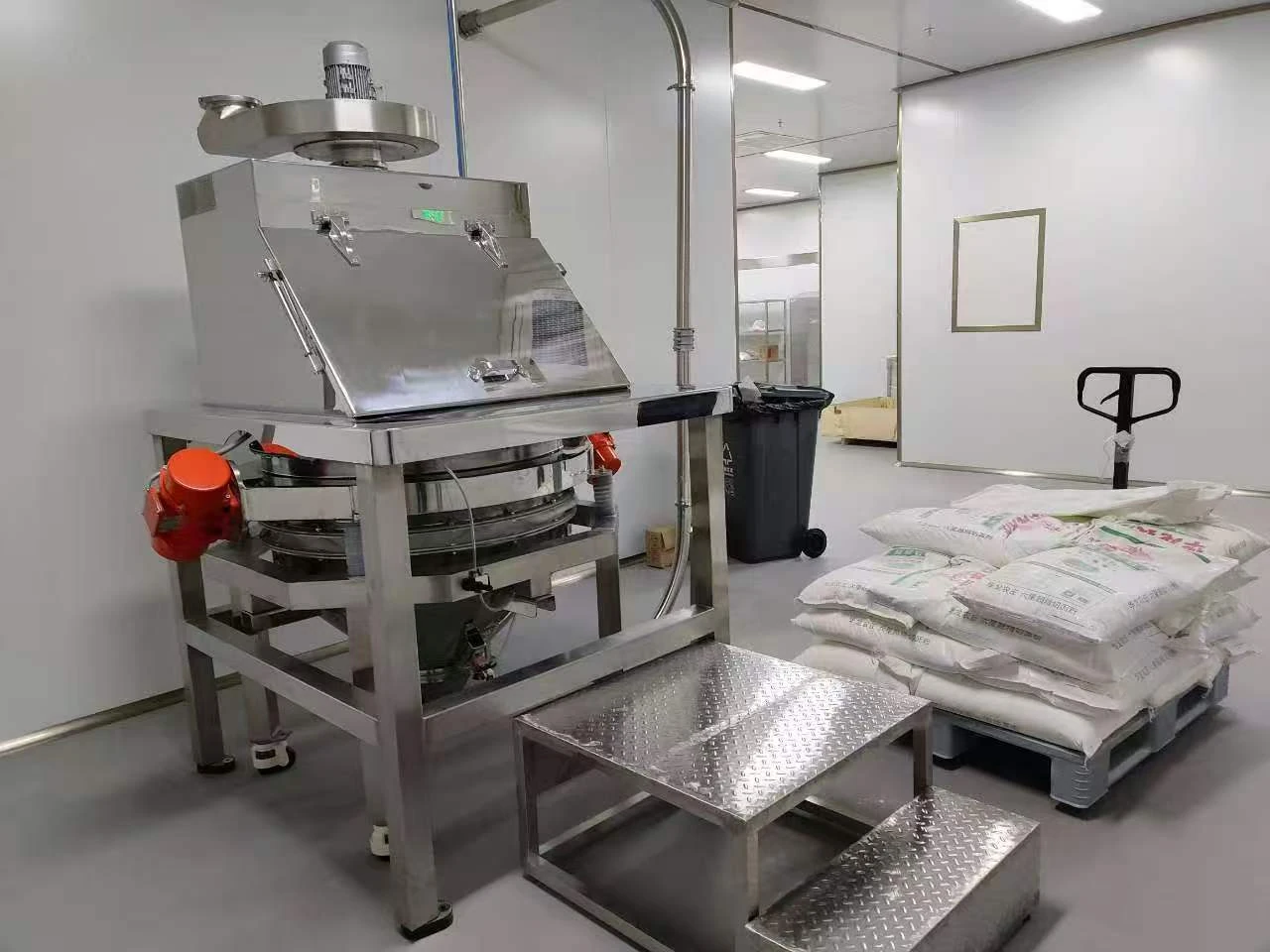

The installation photograph shows the enclosed loading area above the circular screen, with the collection hopper supported below. It also shows how ingredient handling and operator access occupy space around the station.
Include bag handling, loading access, screen servicing and the downstream discharge connection in the layout review. Specify any access platform as part of the installation scope.
Common configuration questions.
Are dust collection, screening and the hopper included in this unit?
Yes. These are the three integrated functions of the equipment presented here. The exact screen, collection and hopper specifications follow the selected configuration.
Can this station feed a dough mixer?
It can be planned within the mixer ingredient route. Confirm the outlet connection, transfer method and any separate weighing or dosing equipment needed for the recipe.
What information is needed to select the unit?
Send the ingredient, required rate, screening requirement, loading method, hopper holding requirement and downstream connection. Include the factory space and electrical supply.
Dust collection · Screening · Storage
Plan one station around your dry ingredient.
Share the material, screening requirement, required rate and downstream equipment so HELPER can review the configuration.
Request a configuration review
